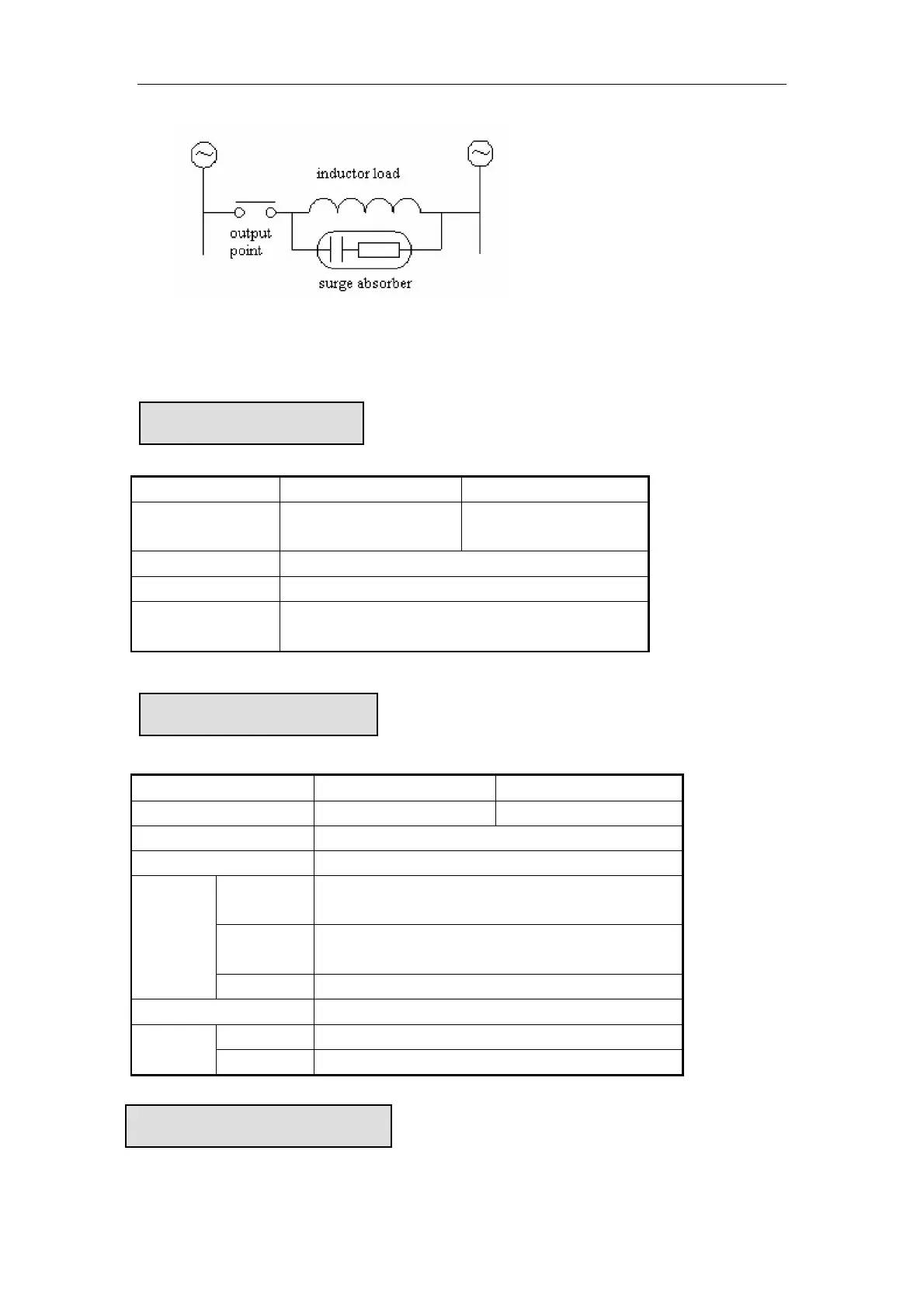

2-3. Transistor output specs and circuit
Transistor output can divide into two types: high speed pulse output and normal transistor output.
Type RT output T output
High speed pulse
output point
Y0～Y1 Y0~Y1
Power supply Below DC5~30V
Maximum current 50mA
Maximum pulse
frequency
200KHZ
Type RT output T output
Transistor output point Y2～Y3 Y2~Y7
Power supply Below DC5~30V
Circuit insulation Optical coupling insulation
Resistor
load
0.4A
Inductor
load
12W/DC24V
Maximum
load
Light load 1.5W/DC24V
Minimum load DC5V 2mA
OFF→ON Below 0.2ms Repose
time
ON→OFF Below 0.2ms
l Output point
High speed pulse output
Normal transistor output
Normal transistor output circuit
