Xinje XP3-18R User Manual

40
Input
characteristic
Insulation No insulation among each channel of PLC
I/O point
0 point (As it is operated via data register, it is not restricted by master
PLC’s standard max control points)
XP3-2TC-P-BD:
Items Content
Analog input signal K type thermocouple
Input points 2 points
Temperature
measurement range
0℃~970℃
Digital output range 0~9700, 16 bits binary
Output points 2 points
Output format NPN collector open transistor output
Control precision 0.4℃
Distinguish ratio 0.1℃
Integrated precision ±0.8% ( relative max value)
Convert speed 45ms×2 channels
Analog using power DC24V±10%,50mA

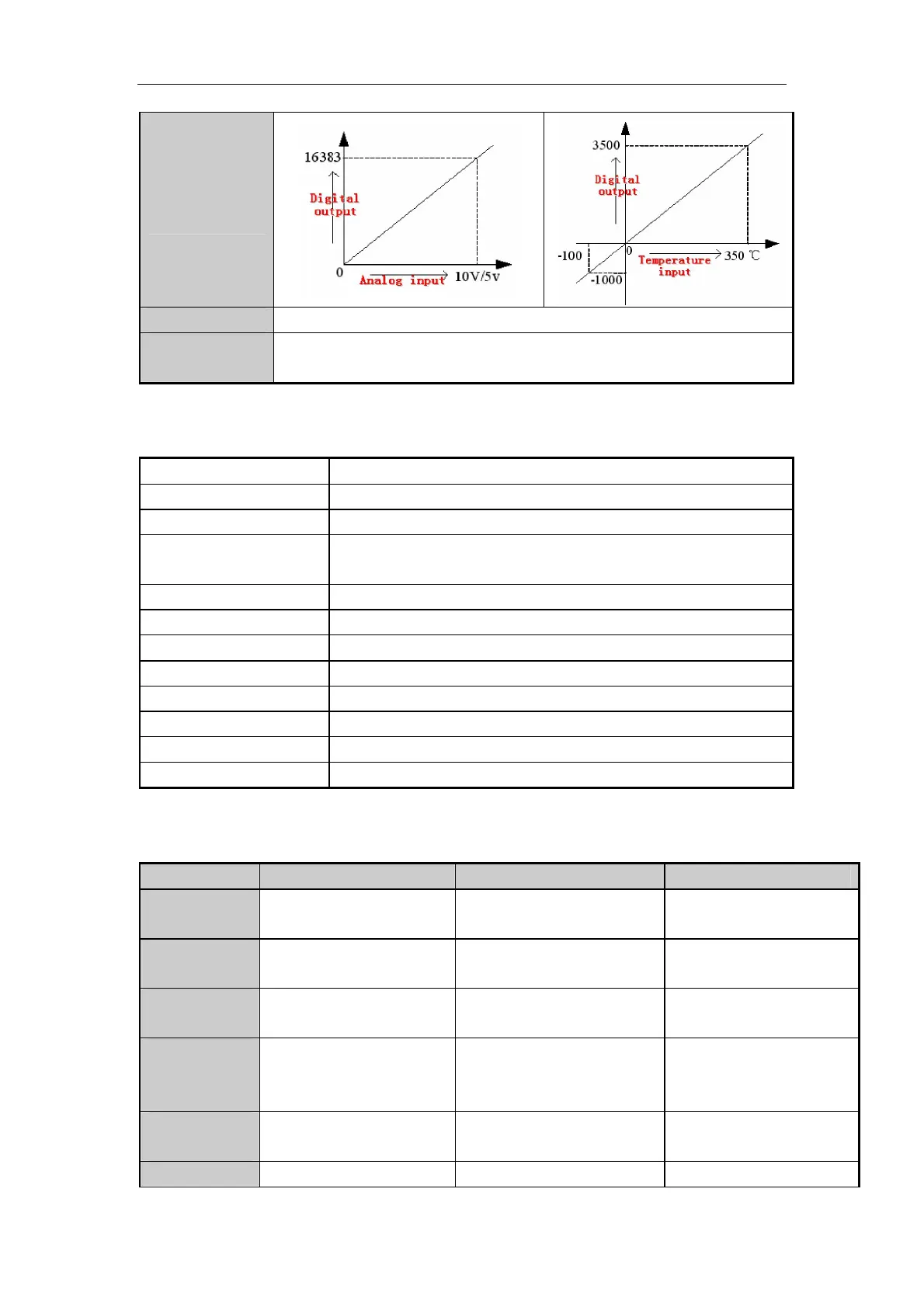

XP3-2PT2AD1DA-BD:
Item Voltage input Temperature input D/A output
Analog input
signal
DC0~5V, 0~10V(input
resistor 300kΩ)
Platinum resistor Pt100 (2
lines format)
－
Digital input
range
－ － 10 bits binary (0-1023)
Analog output
range
－ － 0～20mA, 4～20mA
Temperature
measurement
range
－ -100~350℃ －
Distinguish
rate
0.15mV（10/16383） 0.1℃ 1/1023
Digital output 0~16383 -1000~3500 －
