4

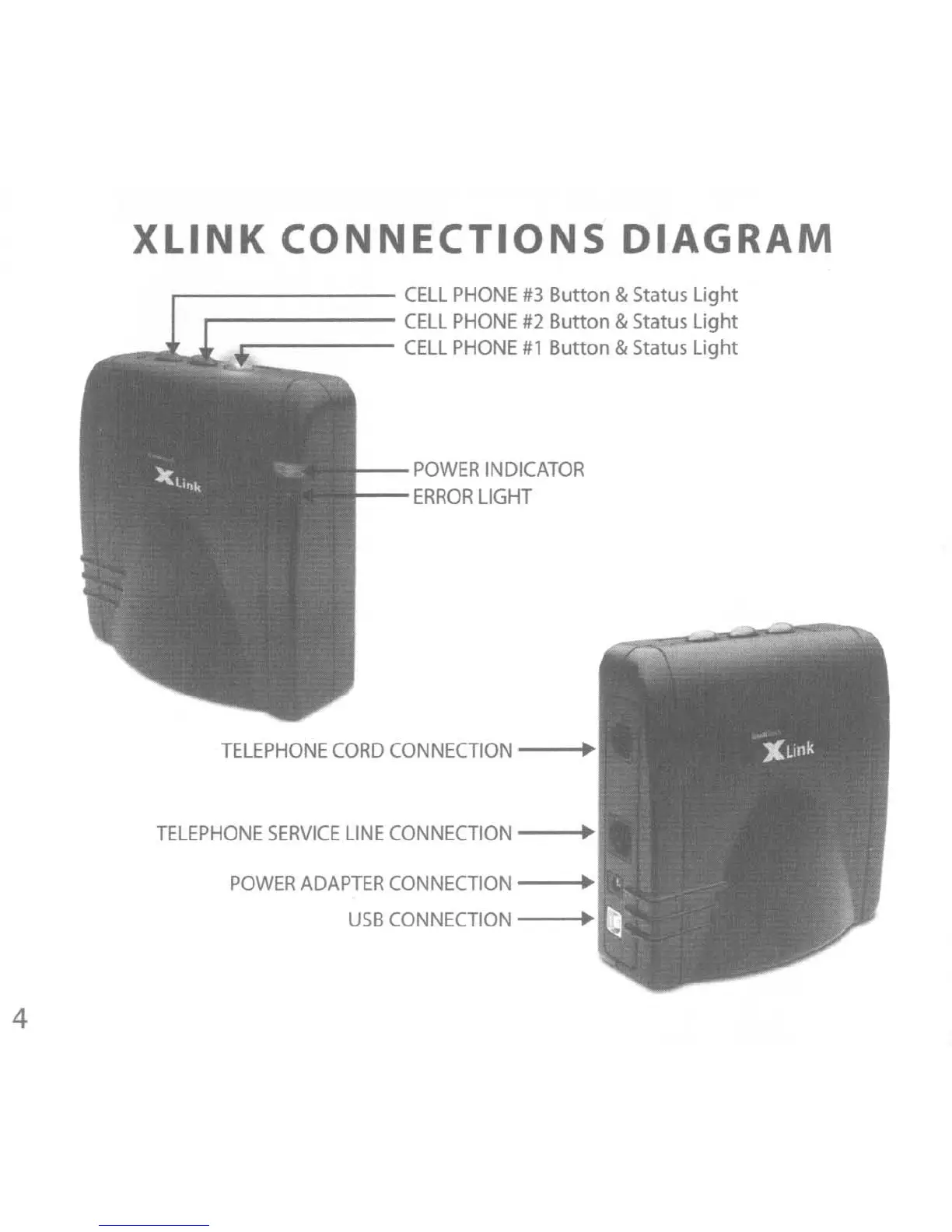

XLINK
CONNECTIONS
DIAGRAM
r--------
CELL
PHONE
#3
Button & Status Light
r-------
CELL
PHONE
#2
Button & Status Light
-----
CELL
PHONE
#1
Button & Status Light
--POWER
INDICATOR
--ERROR
LIGHT
TELEPHONE
CORD
CONNECTION
•
TELEPHONE
SERVICE
LINE
CONNECTION
•
POWER
ADAPTER
CONNECTION
•
USB
CONNECTION
•
