XO 4 & XO FLEX TROUBLE SHOOTING GUIDE
Version 3.30 19

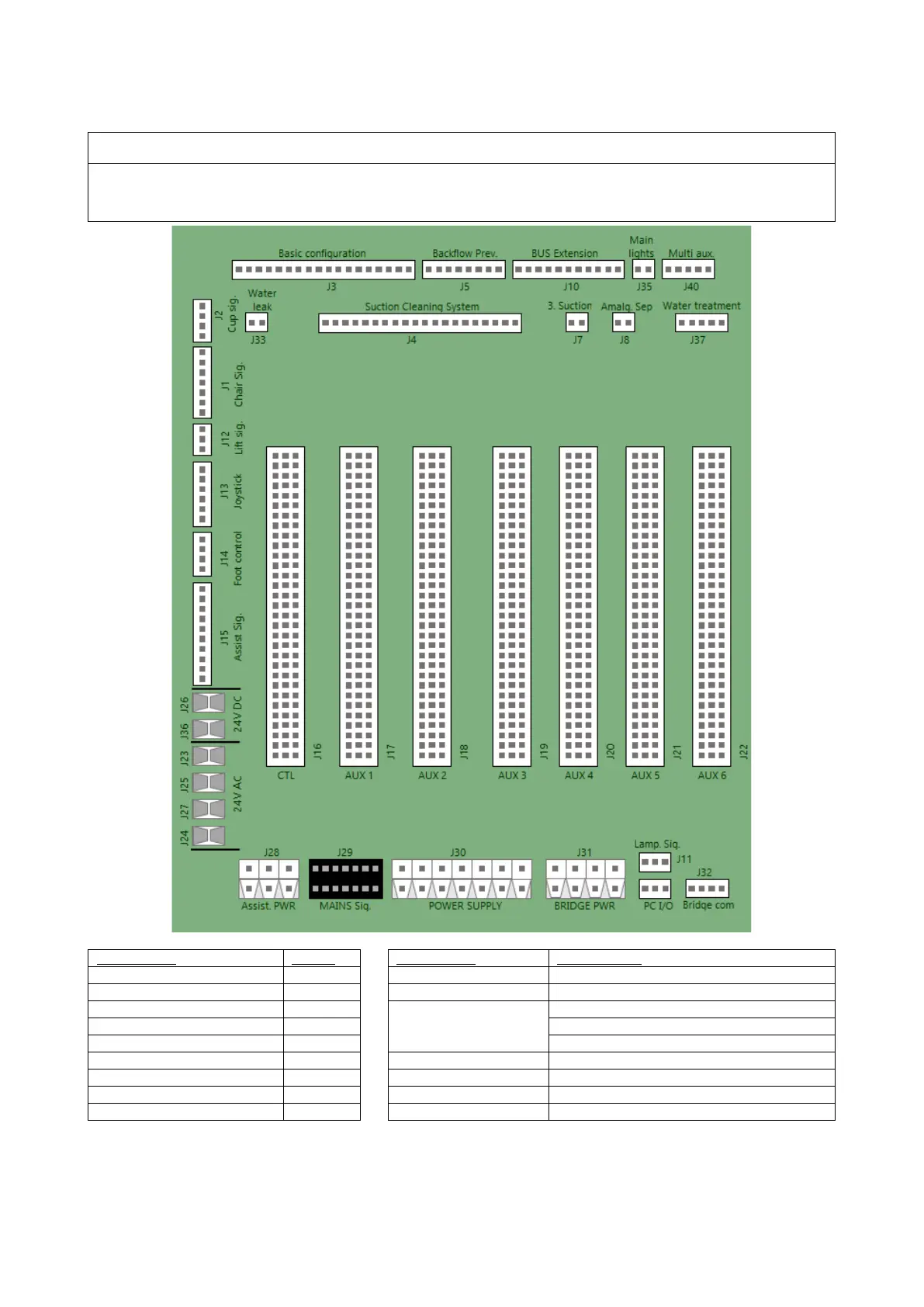

“BACKPLANE PCB
The backplane is used as a support backbone structure for connecting PCB such as the
Stand
controller PCB, Peristaltic Pump controller PCB, Screen Power supply PCBand cable connection
configuration.
Connections
Cables
Connections
Cables / PCB
J1 Chair signal
CA-001
J15 Assist signal
J3 Basic config.
CA-006
J16 CTL
“Stand Controller PCB
J4 Suct. Clean. System
CA-008
AUX 1-6
PC communication PCB
J5 Backflow prev.
CA-007
Screen Power supply PCB
J8 Amalgam Separator
CA-035
“Peristaltic pump PCB
J11 Lamp signal
CA-012
J30 Power Supply.
CA-005 Backplane Power cable.
J12 Lift signal
CA-047
J31 Bridge Power.
CA-004 Power cable
J13 Joystick
CA-010
J32 Bridge Comm.
CA-003 Signal cable
J14 Foot control.
CA-009
J24 to J26
CA-049 24V AC/DC cable XO4 & Flex
