Xray T4 2018 User Manual

11
902306
SH M3x6
902306
SH M3x6
May be used when the front belt
becomes worn and loose. Belt
tensioner is NOT included in the kit
and must be purchased separately.
#303071
BELT TENSIONER SET

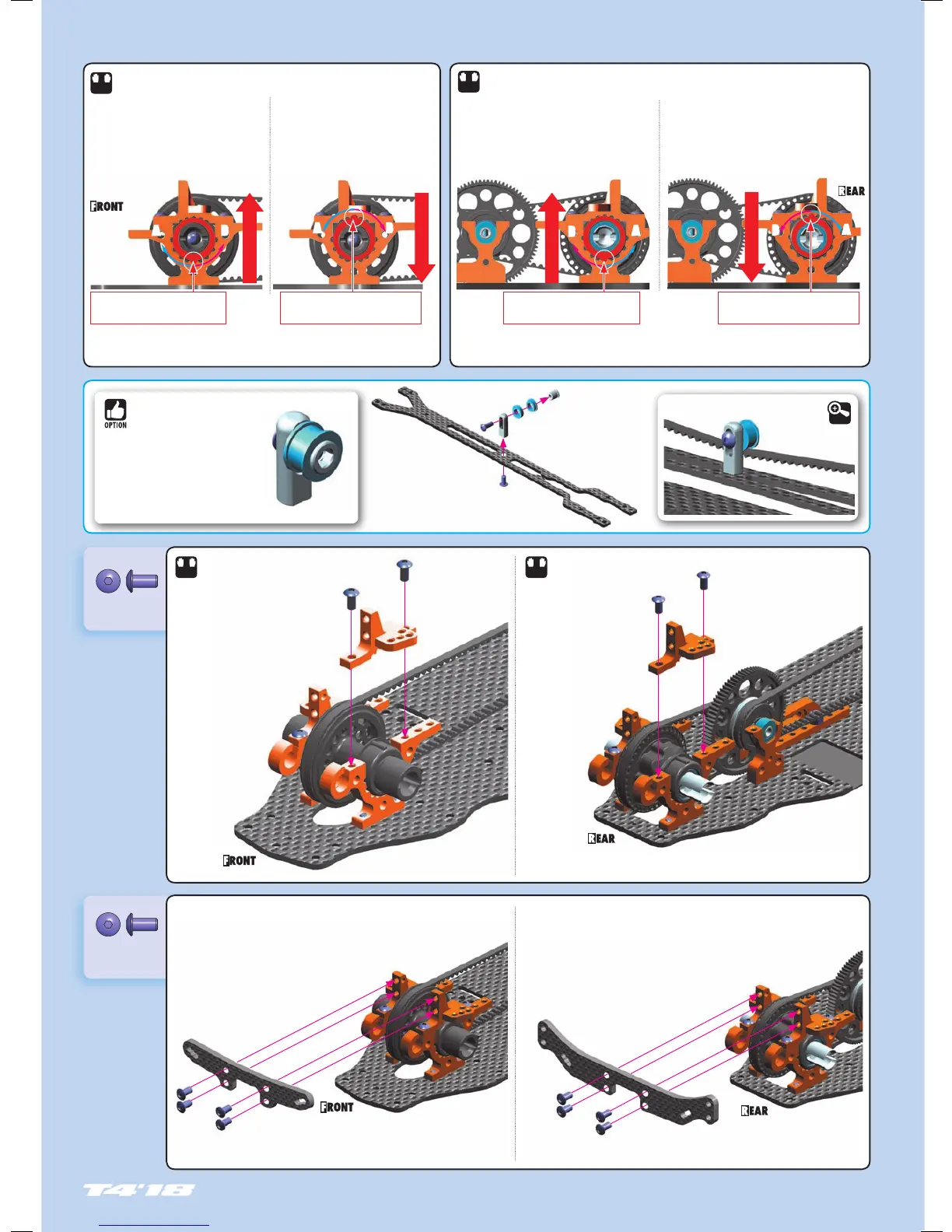

TO TIGHTEN FRONT BELT: Rotate both front nylon hubs in arrow direction B TO TIGHTEN REAR BELT: Rotate both rear nylon hubs in arrow direction B
FRONT BELT TENSION ADJUSTMENT
A
B
REAR BELT TENSION ADJUSTMENT
B
A
L=R
L=R
L=R L=R
A B
A
B
TO LOOSEN FRONT BELT: Rotate both front nylon hubs in arrow direction A TO LOOSEN REAR BELT: Rotate both rear nylon hubs in arrow direction A
LOWER DIFF POSITION
UPPER DIFF POSITION
LOWER DIFF POSITION
UPPER DIFF POSITION
Front diff LOWER position - tab in top notch
- provides more front traction, but makes
the car push more on power.
Recommended for low-traction tracks.
Recommended for low-medium traction tracks.
Front diff UPPER position - tab in bottom
notch - provides more steering, but less front
traction
Recommended for medium-high traction
tracks and technical tracks.
Recommended for medium-high traction tracks.
Rear diff LOWER position - tab in top notch - provides
more rear traction (mainly on-power), makes the
car more stable in chicanes, but makes the car
push on-power.
Rear diff UPPER position - tab in bottom notch -
provides more on-power steering, but makes the
rear slightly more loose.
INITIAL POSITION FOR CARPET
Place tab in this BOTTOM NOTCH
INITIAL POSITION FOR CARPET
Place tab in this BOTTOM NOTCH
INITIAL POSITION FOR ASPHALT
Place tab in this TOP NOTCH
INITIAL POSITION FOR ASPHALT
Place tab in this TOP NOTCH
DETAIL
2. CENTRAL TRANSMISSION
