Xray T4 2018 User Manual

32
BAG
902308
SH M3x8
903306
SFH M3x6
306219
SHIM 3x6x1
306219
SHIM 3x6x2
306219
SHIM 3x6x3
07
Add shims between servo and alu
servo mounts in case you want to
move the servo (weight) more
forward. There are 3 different
thickness of shims.
VIEW
1mm 2mm 3mm
Minimum space 0.5mm
Servo Screw
(NOT INCLUDED)
305912~306000
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
Motor
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
Wheels & Tires & Inserts
(NOT INCLUDED)
306219
306201
902306
902306
306530
903306
306204-O
306233
902308
902308
306310
306301
903308
903306
903306
309402
960140
960140
306184
306184
903306
903306
305912~306000 NARROW PINION GEAR ALU HARD COATED (OPTION)
30 6184 LONG COMPOSITE LIPO BATTERY BACKSTOP (1+1)
30 6201 ALU SERVO MOUNT - LONG
30 6204-O T4’17 ALU SERVO MOUNT - ORANGE
30 6219 COMPOSITE SET OF SERVO SHIMS (4)
30 6301 ANTENNA MOUNT - THIN
30 6233 T4 GRAPHITE FLOATING SERVO HOLDER 3.0MM
30 6530 T4 GRAPHITE CHASSIS STIFFENER 2.0MM
30 9402 BODY CLIP FOR 6MM BODY POST (4)
90 2306 HEX SCREW SH M3x6 (10)
90 2308 HEX SCREW SH M3x8 (10)
90 3306 HEX SCREW SFH M3x6 (10)
90 3308 HEX SCREW SFH M3x8 (10)
96 0140 NUT M4 WITH FLANGE (10)
30 6310 ANTENNA (2)

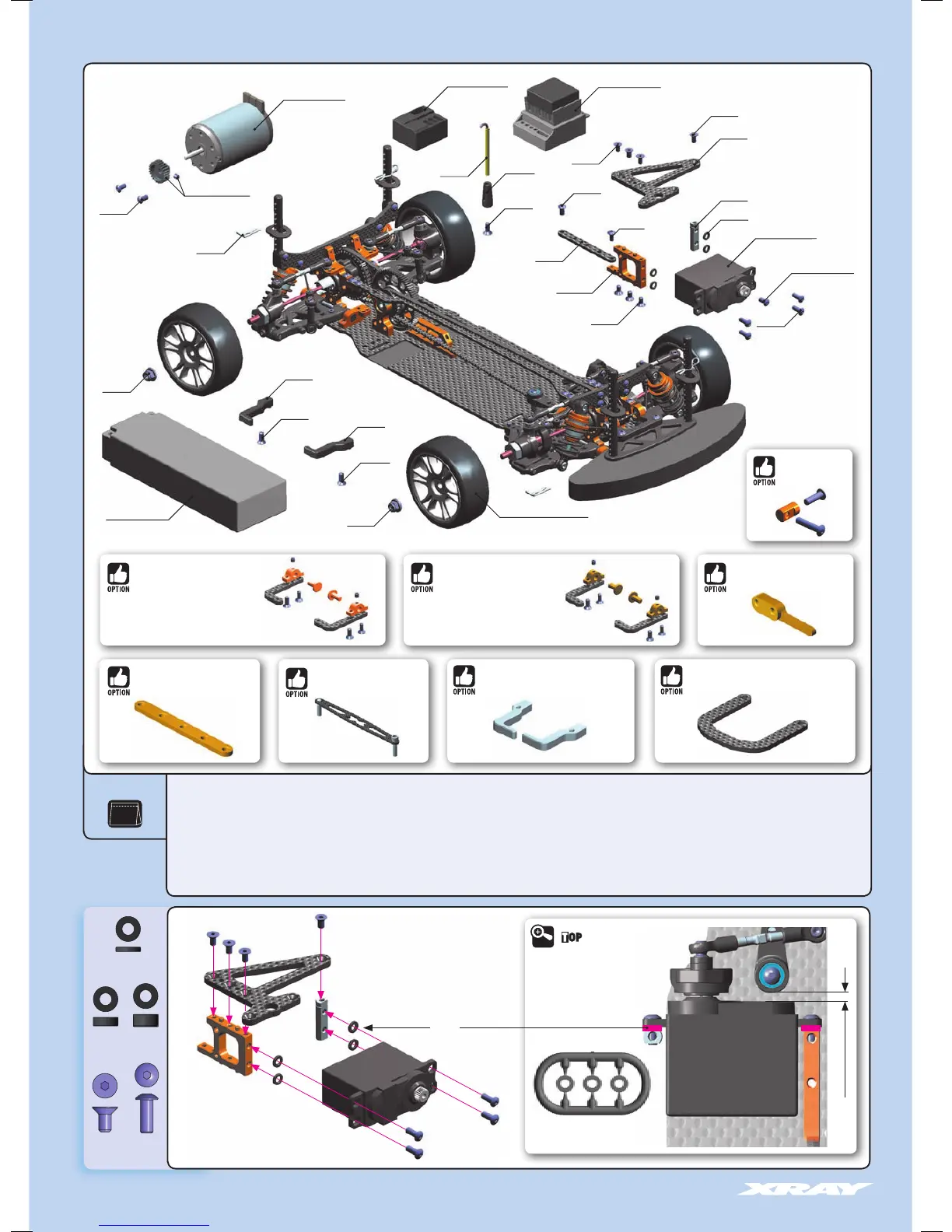

7. FINAL ASSEMBLY
DETAIL
#306531
BRASS CHASSIS STIFFENER
#303061
GRAPHITE MOTOR GUARD
#306191
T4 GRAPHITE + ALU FULLY
ADJUSTABLE BATTERY HOLDER
#306194
T4 GRAPHITE + BRASS FULLY
ADJUSTABLE BATTERY HOLDER
#306186
ALU LIPO BATTERY BACKSTOPS (F+R)
#306165
GRAPHITE BATTERY STRAP
SHIMS
#309855
BRASS BATTERY BACKSTOP
#306410-O
ALU FAN MOUNT
