Xray T4 2018 User Manual

21

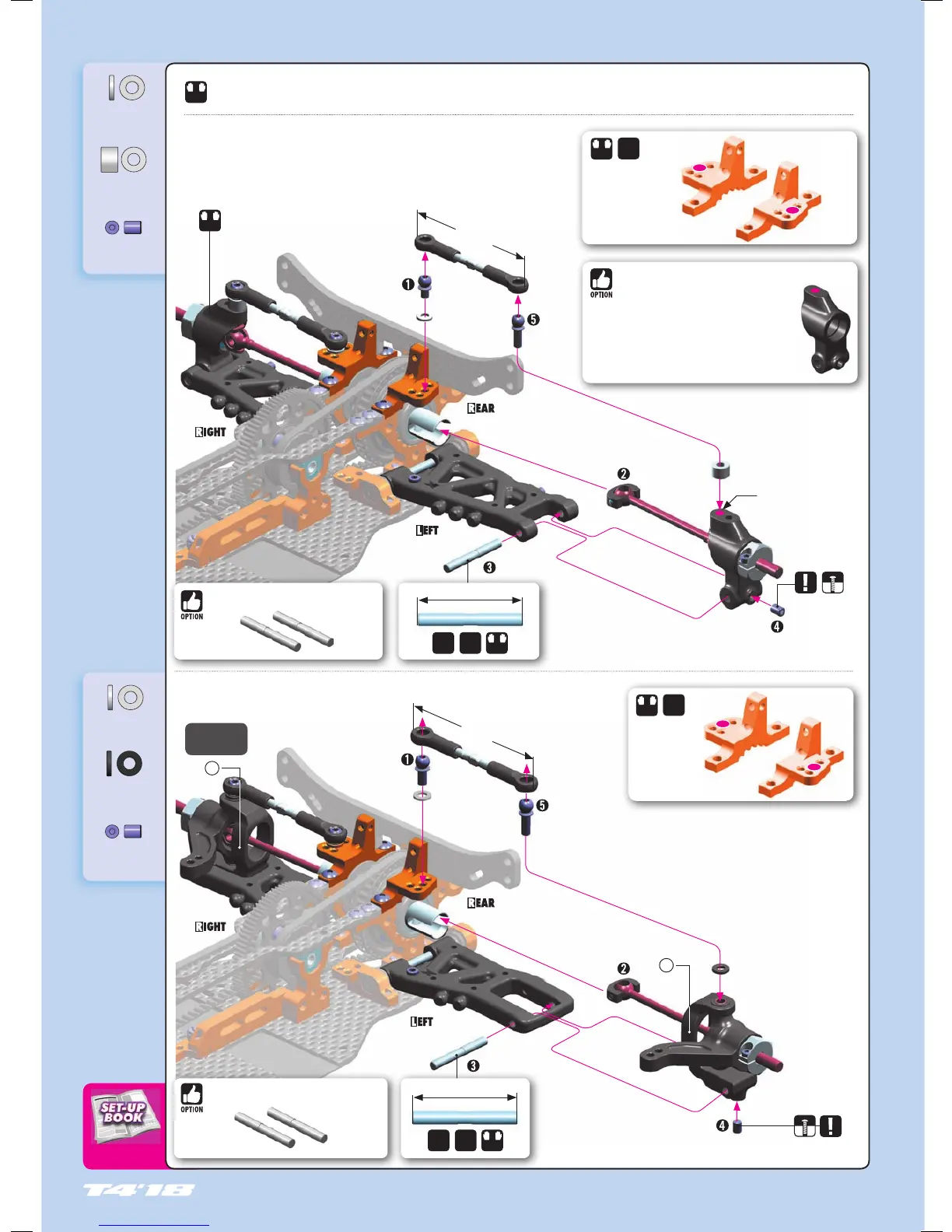

ROLL CENTER
CAMBER
901304
SB M3x4
901304
SB M3x4
303122-K
SHIM 3x6x1
303122-K
SHIM 3x6x1
303127-K
SHIM 3x6x4
303129
SHIM 3x6x1
ALU SHIM
3x6x1mm
ALU SHIM
3x6x1mm
LEFT UPRIGHT = RIGHT UPRIGHT
L=R
5mm THREAD
5mm THREAD
8mm THREAD
8mm THREAD
L=R
L=R
INITIAL SETTING
REAR TRANSMISSION
L=R
ALTERNATIVE
STANDARD REAR SUSPENSION
INITIAL SETTING
ALTERNATIVE
ACTIVE REAR SUSPENSION™
STEP 1
53.5mm
53.5mm
INITIAL SETTING
5. FRONT & REAR TRANSMISSION
TIGHTEN GENTLY
TIGHTEN GENTLY
ALU SHIM 3x6x4mm
COMPOSITE SHIM
3x6x1mm
INITIAL SETTING
1-HOLE REAR UPRIGHTS (See page 19)
An optional 1-hole rear upright is available for fine
tuning. This optional upright may be used on high-
traction tracks or tracks with long sweepers, since the
position of the center hole will allow faster driving
through those corners because of better cornering speed.
1:1
25mm
2x
L=R
1:1
25mm
2x
L=R
0R
0L
2x
2x
#307322 TITANIUM REAR ARM PIVOT PIN (2)
#307322 TITANIUM REAR ARM PIVOT PIN (2)
