30
SHOCK POSITION
RIDE HEIGHT
DROOP
981212
P 2x12
L=R
3x6x2mm
303129
SHIM 3x6x2
902308
SH M3x8
902312
SH M3x12
FRONT SHOCK SPRING
C=2.5

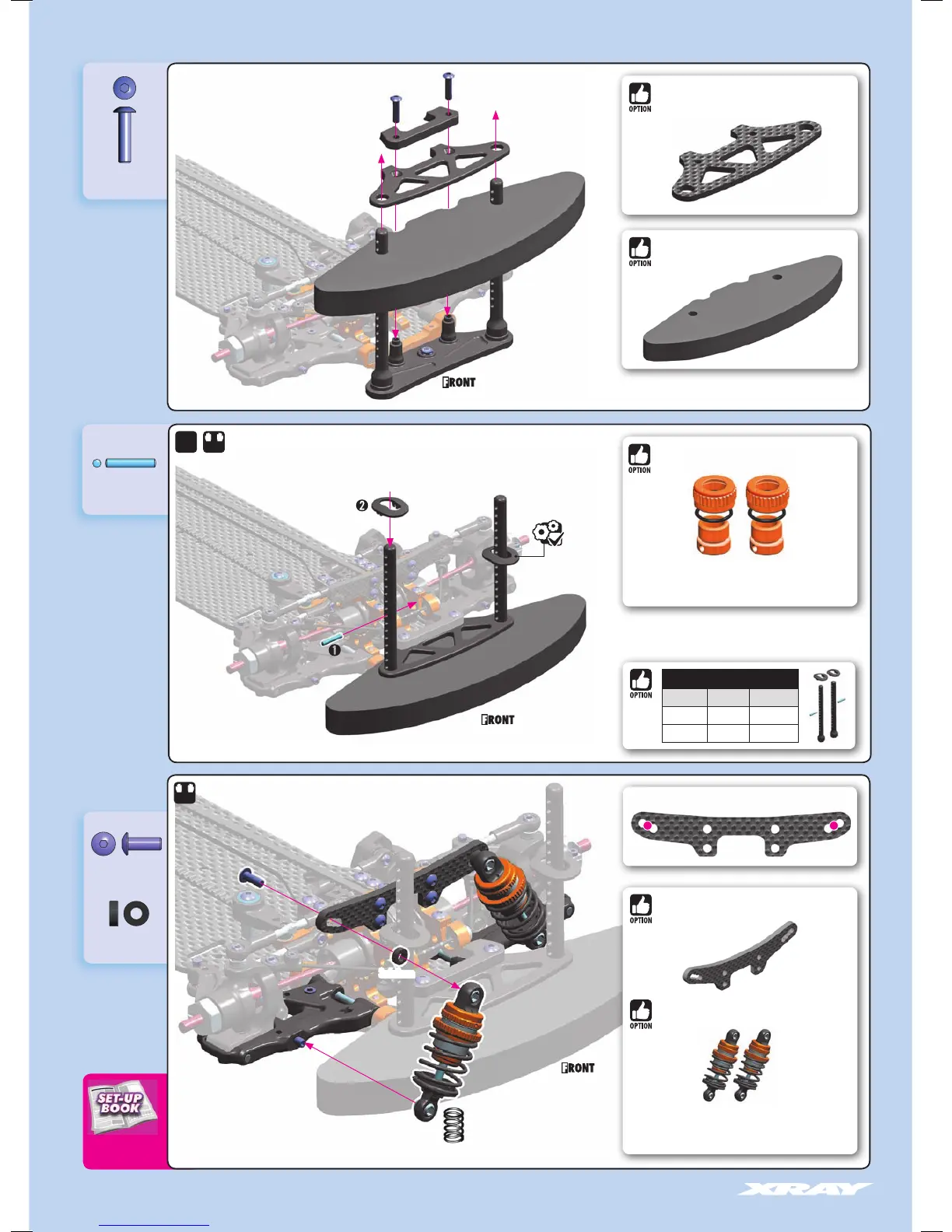

7. FRONT & REAR ASSEMBLY
L=R
#301228
T4 FOAM BUMPER WIDE - HARD
#301351-O
ALU ADJUSTABLE BODY POST STOP (2)
#302085
T4 SHOCK TOWER FRONT 3.0MM GRAPHITE
#308307-O
XRAY T4 ALU SHOCK ABSORBER-SET - ORANGE (2)
Very handy, easily externally adjustable body post from Swiss
7075 T6 aluminum. Allows for adjustment of body height by
3mm without needing to change the position on the body post.
For some very specific racing conditions like extremely low
traction, the shocks with shock towers from previous T4 cars will
fit onto T4’18 and are available as an option.
INITIAL SETTING
2x
#301213
GRAPHITE UPPER HOLDER FOR BUMPER 2.5MM
FRONT BODY MOUNT SET
#301322 0mm INCLUDED
#301323 +1mm OPTION
#301324 +2mm OPTION
