Xray T4 2018 User Manual

6

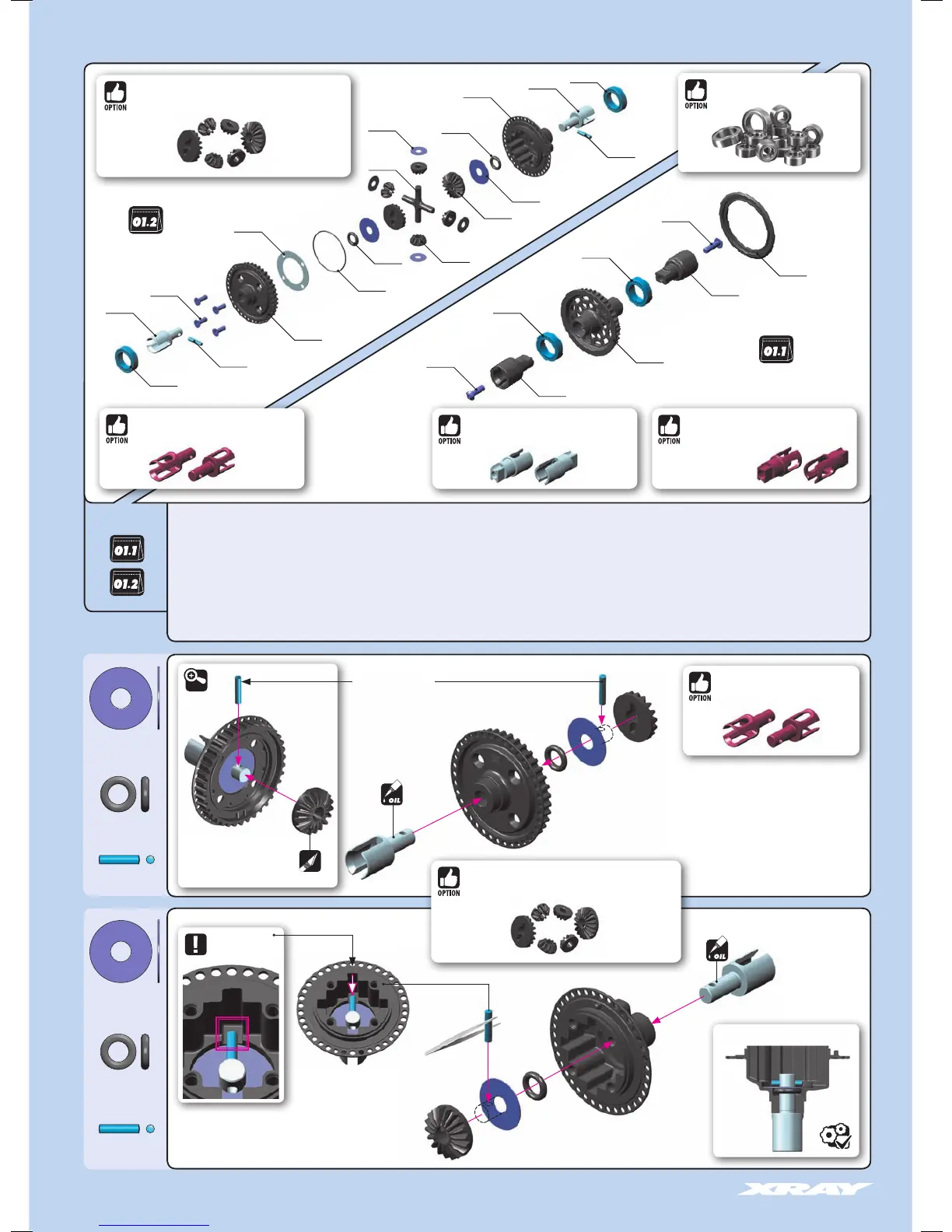

1. GEAR DIFFERENTIAL & FRONT SOLID AXLE
Use tweezers to
insert pin.
981210
P 2x10
981210
P 2x10
972050
O 5x2
972050
O 5x2
964050
S 5x15x0.3
964050
S 5x15x0.3
➊
➋
➌
➍
➍
➍
➎
➎
➊
➋
➌
➍
➎
DETAIL
➎
STEP
STEP DETAIL
30 4900 XRAY GEAR DIFFERENTIAL - SET
30 4910 COMPOSITE GEAR DIFF. CASE & COVER
30 4930 COMPOSITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
30 4970 ALU GEAR DIFF OUTDRIVE ADAPTER - 7075 T6 (2)
30 4980 COMPOSITE GEAR DIFF CROSS PIN
30 4990 DIFF GASKET (4)
30 5105 XRAY MULTI-DIFF T3/T4 LiPo (OPTION)
30 5135 COMPOSITE SOLID AXLE DRIVESHAFT ADAPTERS (2)
30 5188 COMPOSITE SOLID AXLE 38T - SET
90 2310 HEX SCREW SH M3x10 (10)
90 3256 HEX SCREW SFH M2.5x6 (10)
94 1015 HIGH-SPEED BALL-BEARING 10x15x4 RUBBER SEALED (2)
96 4031 WASHER S 3.5x10x0.2 (10)
96 4050 WASHER S 5x15x0.3 (10)
97 1240 SILICONE O-RING 24x0.7 (10)
97 2050 SILICONE O-RING 5x2 (10)
98 1210 PIN 2x10 (10)
GEAR DIFFERENTIAL
➍
NOTE
ORIENTATION
#304971
HUDY SPRING STEEL™ OUTDRIVES
#304971
HUDY SPRING STEEL™ OUTDRIVES
BAG
304970
304910
964050
972050
304990
304910
903256
981210
981210
304970
941015
971240
972050
964031
304980
304930
304930
941015
#305137
STEEL SOLID AXLE DRIVESHAFT ADAPTERS
HUDY SPRING STEEL™
#305136
ALU SOLID DRIVESHAFT ADAPTERS
305188
941015
941015
305135
902310
305135
305188
902310
COMPOSITE SOLID AXLE
CUTAWAY VIEW
#304932
GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
#304932
GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
DETAIL
#309002
SET OF CERAMIC BALL-BEARINGS (14)
