16
BELT TENSION
ADJUSTMENT
VIDEO TECH TIP
▶
962042
S 4x6x0.1
902305
SH M3x5
303122-K
SHIM 3x6x1
303127-K
SHIM 3x6x4
303139-K
SHIM 3x6x7
903318
SFH M3x18
X4 BRASS WEIGHT FRONT RIGHT
FOR MOTOR MOUNT 4g
X4 BRASS WEIGHT REAR RIGHT
FOR MOTOR MOUNT 4g
0.1mm
BEARING OIL
(HUDY #106230)
OIL
BEARING OIL
(HUDY #106230)
OIL

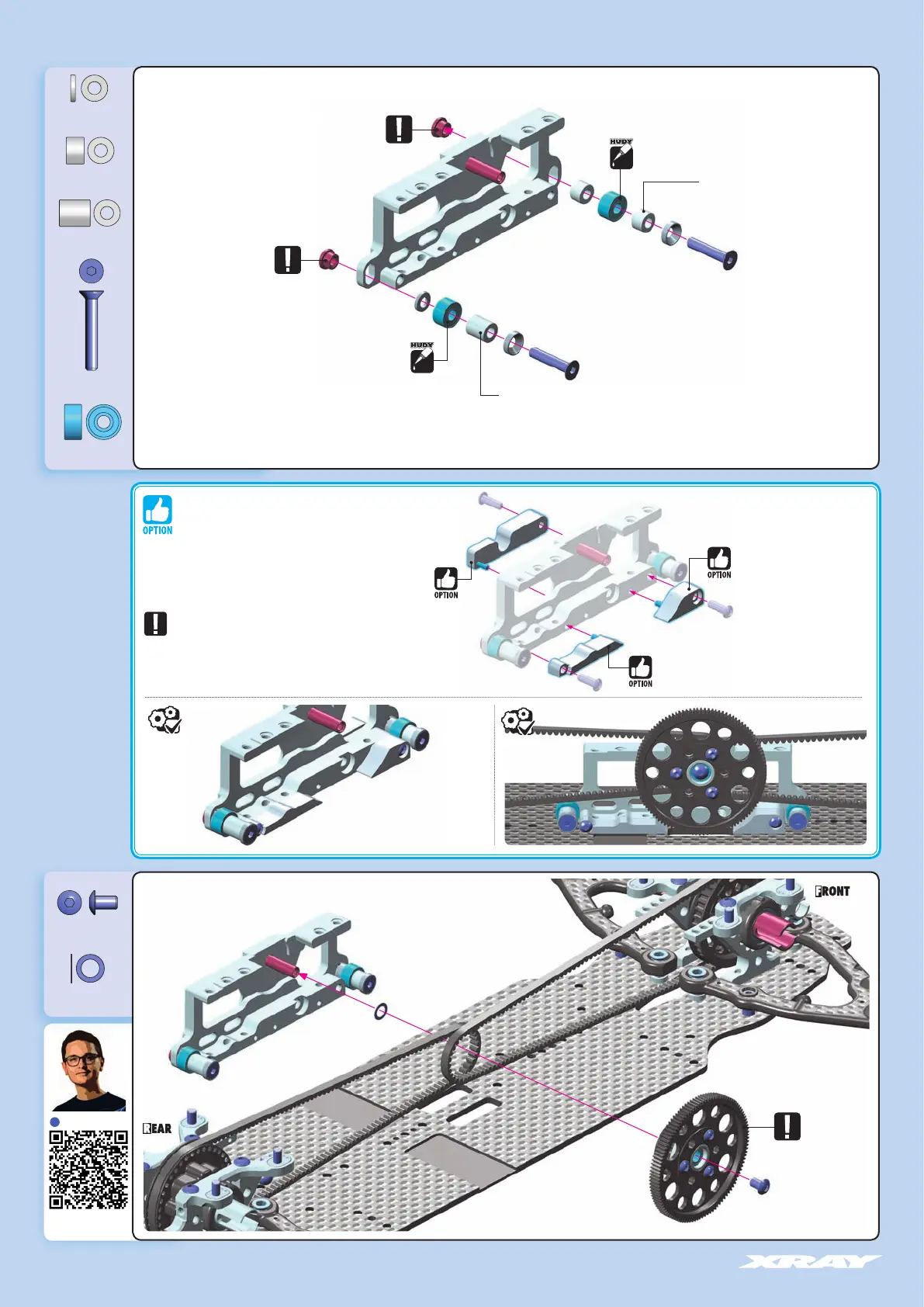

3. CENTRAL TRANSMISSION
X4 BRASS WEIGHT FRONT LEFT
FOR MOTOR MOUNT 8g
#309852
X4 BRASS WEIGHTS NICKEL COATED FOR MOTOR MOUNT 4g+4g+8g
930308
BB 3x8x4
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
1mm
7mm
4mm
4mm
This shim serves as the battery backstop.
To move the battery further away from the
center of the chassis, add additional shims.
This shim serves as the battery backstop.
To move the battery further away from the
center of the chassis, add additional shims.
These optional brass pieces place the extra weight close to the X4 center to minimize
the effects on the front-to-rear weight bias.
MOTOR MOUNT WEIGHT ADJUSTMENT
