ANTI-ROLL BARS
VIDEO TECH TIP
▶
930306
BB 3x6x2.5
303123-K
SHIM 3x6x2
303125-K
SHIM 3x6x3
303123-K
SHIM 3x6x2
303125-K
SHIM 3x6x3
REAR TOE-GAIN
STEERING SYSTEM
VIDEO TECH TIP
▶
VIDEO TECH TIP
▶
REAR LINKS
FRONT TRANSMISSION
REAR TRANSMISSION

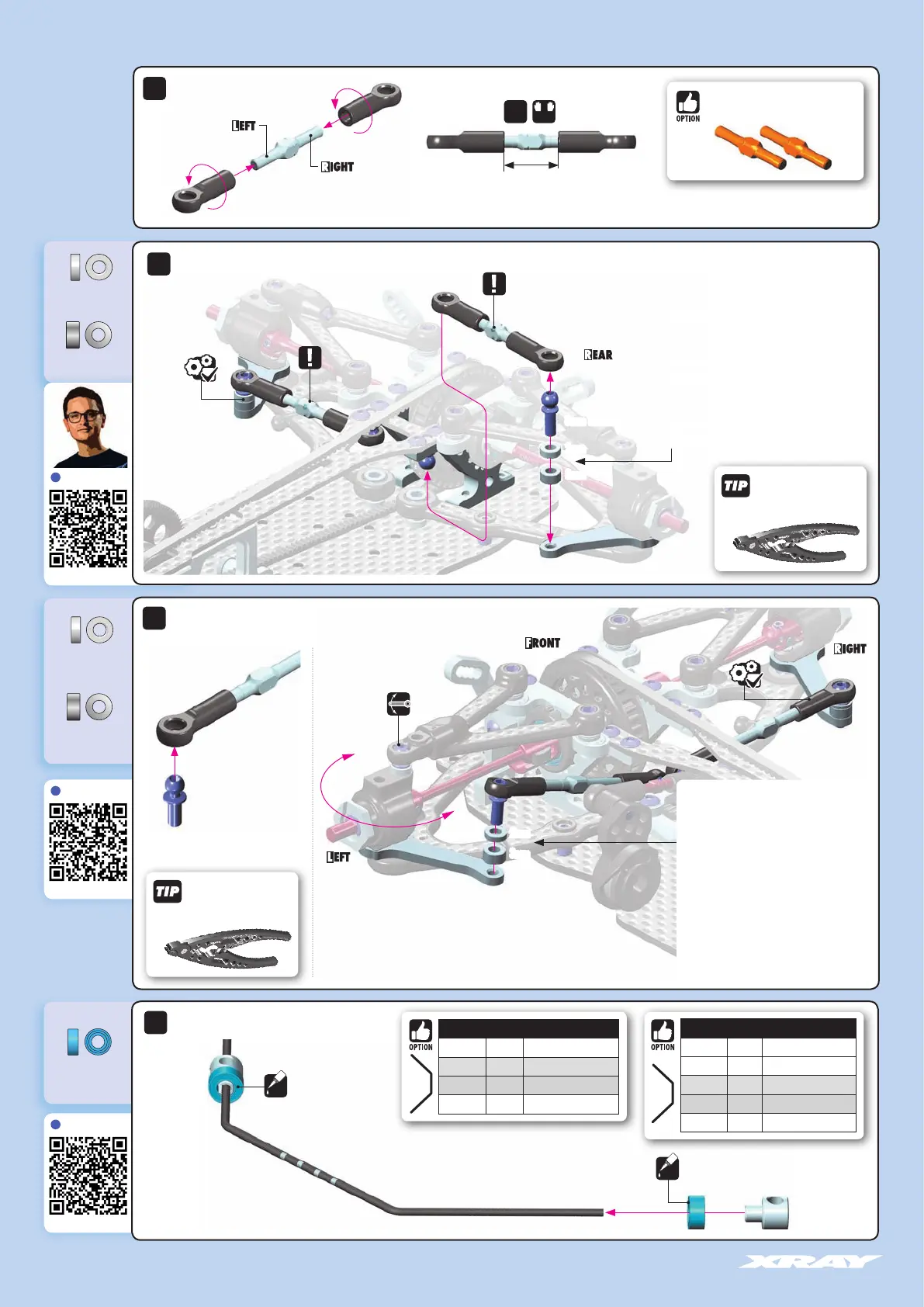

FRONT & REAR ANTI-ROLL BARS
2x
2x
2x
NOTE
ORIENTATION
NOTE
ORIENTATION
15.8mm
2mm
2mm
3mm
3mm
L=R
2x
OIL
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
2x
THREAD
THREAD
#303211-O ALU TURNBUCKLE L/R
30mm ORANGE - SWISS 7075 T6 (2)
FREE MOVEMENT
REAR ANTI-ROLL BARS
#303821 1.1mm OPTION
#303822 1.2mm INCLUDED X4 Graphite
#303823 1.3mm INCLUDED X4 Alu
#303824 1.4mm OPTION
FRONT ANTI-ROLL BARS
#302821 1.1mm OPTION
#302822 1.2mm OPTION
#302823 1.3mm INCLUDED X4 Graphite
#302824 1.4mm INCLUDED X4 Alu
#302825 1.5mm OPTION
MORE SHIMS gives more toe-gain on compression.
LESS SHIMS gives less toe-gain (or even toe loss),
on suspension compression.
MORE TOE-GAIN improves rear grip and side
bite. Mainly recommended for low- to medium-grip
conditions.
LESS TOE-GAIN reduces rear grip and side bite.
Recommended for higher- grip conditions or tracks
that require more steering.
TO DECREASE bump steer, smoothen out the
steering, and reduce traction rolling: increase
the amount of shimming.
TO INCREASE bump steer, to make the steering
more aggressive, decrease the amount of
shimming.
Decrease the amount of shimming to get more
steering.
Increase the shimming if the car is difficult to
drive and/or it is traction rolling.
5. FRONT & REAR SUSPENSION
8mm Thread
Install the pivot balls with
Professional Multi Tool
(HUDY #183011).
Install the pivot balls with
Professional Multi Tool
(HUDY #183011).
To Next Page
