Xray X4 User Manual

40
BAG
07
305912~294160
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
Motor
(NOT INCLUDED)
Wheels & Tires & Inserts
(NOT INCLUDED)
902308
Servo Screw
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
306201
306237
902306
903308
903306
306206
903306
306301
306310
309402
960240
903312
306177
306190
306192
902320
306192
901305
326176
903306
305912~294160 NARROW ALU PINION GEAR 12T~60T (OPTION)
306177 GRAPHITE BATTERY PLATE SHIM (2)
306190 GRAPHITE BATTERY ADJ. WIDTH PLATE (2)
306192 COMPOSITE ADJUSTABLE BATTERY HOLDER & BACKSTOP (2+2)
306201 ALU SERVO MOUNT - LONG
306206 X4 ALU SERVO MOUNT - BLACK
306237 X4 GRAPHITE FLOATING SERVO HOLDER 3.0MM
306301 ANTENNA MOUNT - THIN
309402 BODY CLIP FOR 6MM BODY POST (4)
326176 COMPOSITE LIPO BATTERY BACKSTOP (2+2)
901305 HEX SCREW SB M3x5 (10)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902320 HEX SCREW SH M3x20 (10)
903306 HEX SCREW SFH M3x6 (10)
903308 HEX SCREW SFH M3x8 (10)
903312 HEX SCREW SFH M3x12 (10)
960240 NUT M4 WITH SERRATED FLANGE (10)
306310 ANTENNA (2)
#306165
GRAPHITE BATTERY STRAP
ALU REAR WING SHIM
#353561 SILVER XRAY OPTION
#293561 SILVER HUDY OPTION
#293561-O ORANGE HUDY OPTION
#306410
ALU FAN MOUNT
#309861
SHORT LIPO BALANCING CHASSIS
WEIGHT 40g (2)
#306551
XRAY PURE TUNGSTEN
CHASSIS WEIGHT 11g

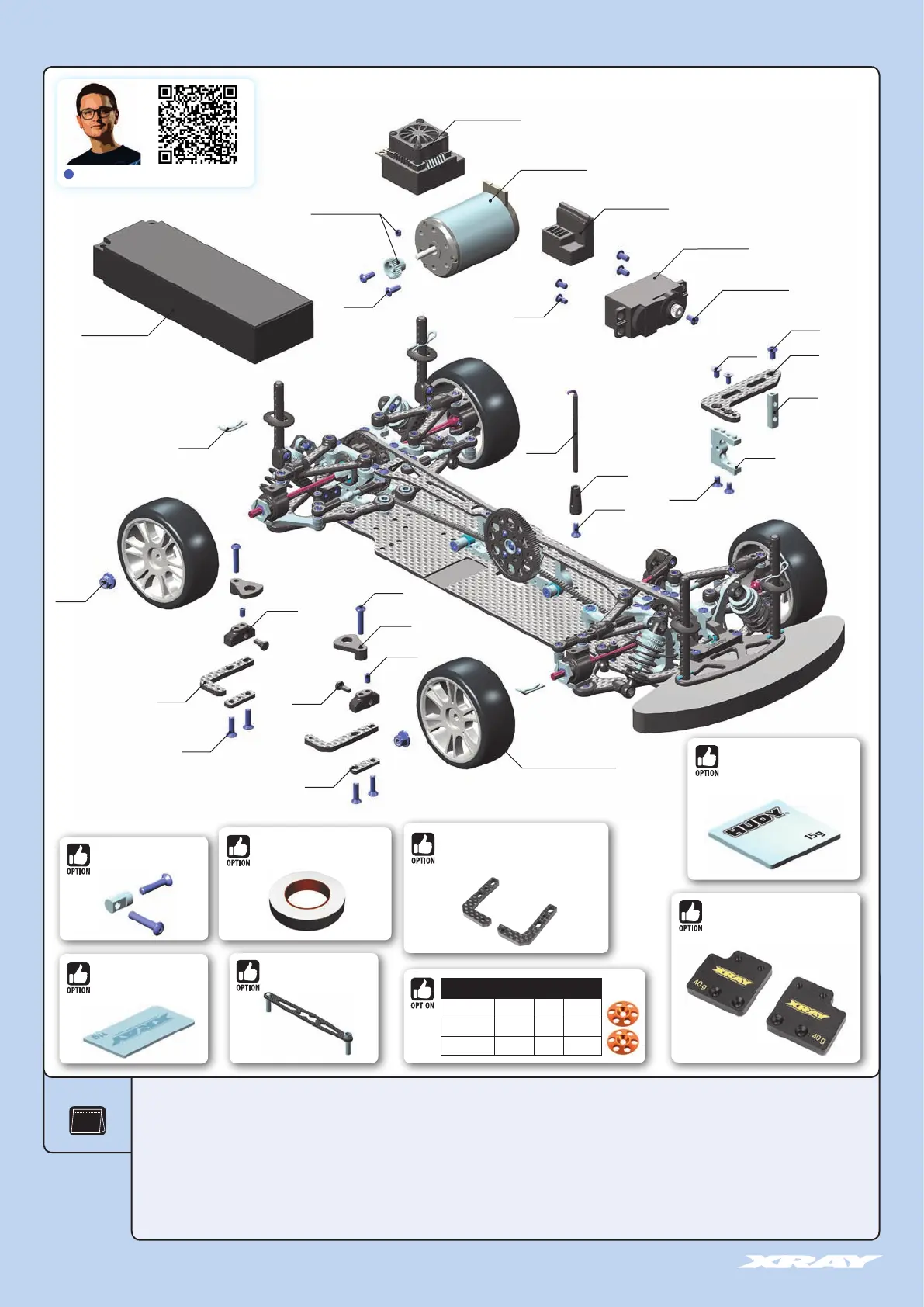

ELECTRONICS INSTALLATION
VIDEO TECH TIP
▶
7. FINAL ASSEMBLY
#306199
GRAPHITE HOLDER FOR ADJ. BATTERY
HOLDER FOR NARROW BATTERIES (2)
#107870
HUDY FIBRE-REINFORCED TAPE
TUNGSTEN & STAINLESS STEEL
WEIGHTS (on page 42 and 45)

Xray X4 Specifications

General

Scale	1/10
Power Source	Electric
Drivetrain	4WD
Motor Type	Brushless
Drive Type	4WD
Battery Type	LiPo
Battery Voltage	7.4V
Radio System	2.4GHz
Tire Type	Rubber (Not Included)
Body Material	Polycarbonate
