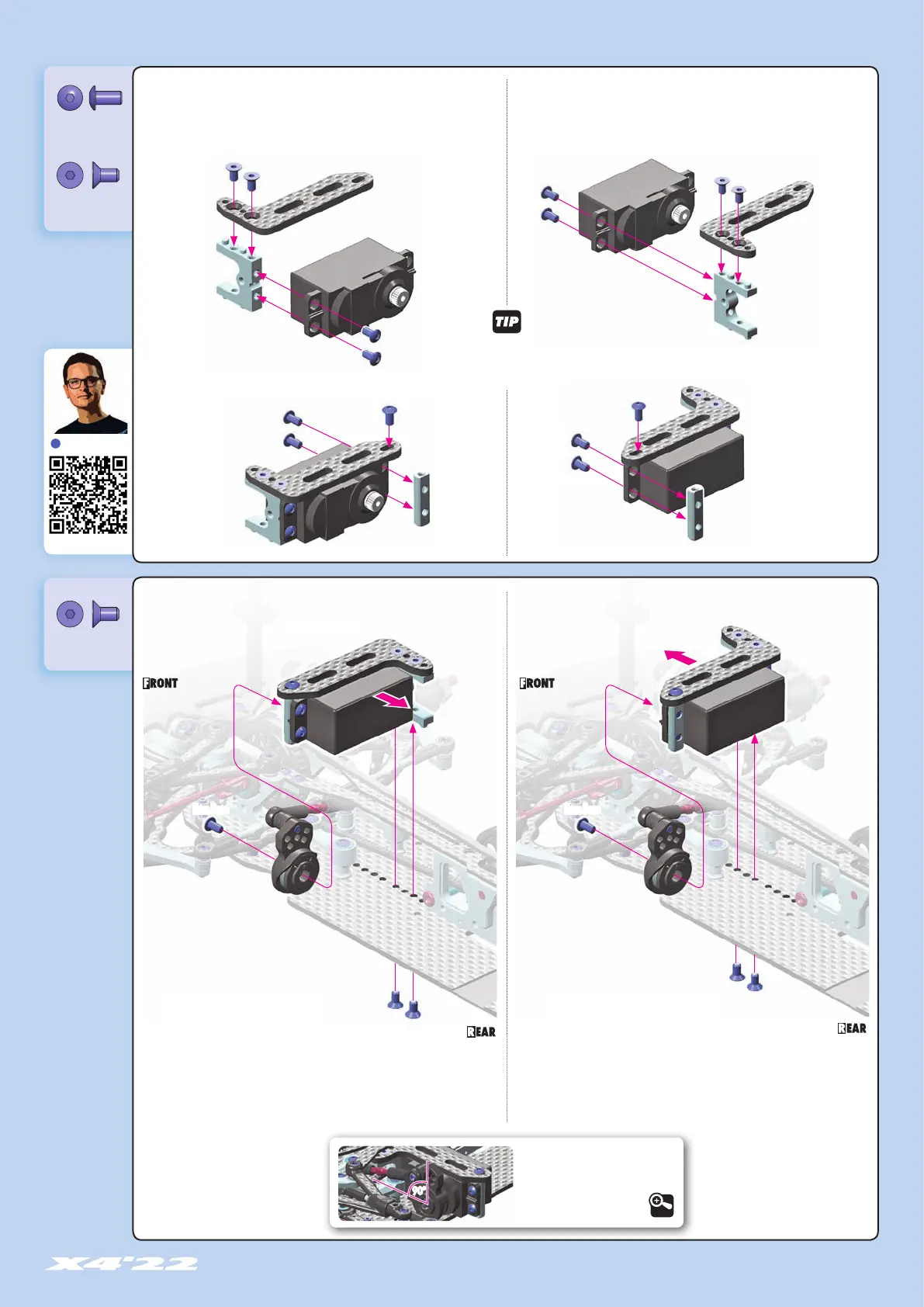

Xray X4 - 7. FINAL ASSEMBLY; FLOATING REARWARD MOUNT SERVO HOLDER

41
STEERING SYSTEM
VIDEO TECH TIP
▶
902306
SH M3x6
For improved weight balance and for more
space for electronics, we recommend using
a narrow, light servo.
7. FINAL ASSEMBLY
(INITIAL SETTING)
(INITIAL SETTING)
From Servo From Servo
90°
DETAIL
Attach servo arm to servo output shaft
using screw from servo. Servo saver must
be perpendicular to chassis when servo
is in neutral.
ALTERNATIVE 1
ALTERNATIVE 1
ALTERNATIVE 2
ALTERNATIVE 2
FLOATING REARWARD MOUNT SERVO HOLDER
FLOATING REARWARD MOUNT SERVO HOLDER
FLOATING FORWARD MOUNT SERVO HOLDER
FLOATING FORWARD MOUNT SERVO HOLDER
903306
SFH M3x6
903306
SFH M3x6
The FORWARD POSITION allows for more
flex at the front of the chassis, which improves
front grip. This is particularly useful on low- to
medium-grip carpet as well as asphalt.
The REARWARD POSITION is a good
basic setting and is mainly recommended
for high-grip carpet racing.
