42
VIDEO TECH TIP
▶
WEIGHT BALANCE
ELECTRONICS
INSTALLATION
VIDEO TECH TIP
▶
903308
SFH M3x8
902308
SH M3x8
DETAIL

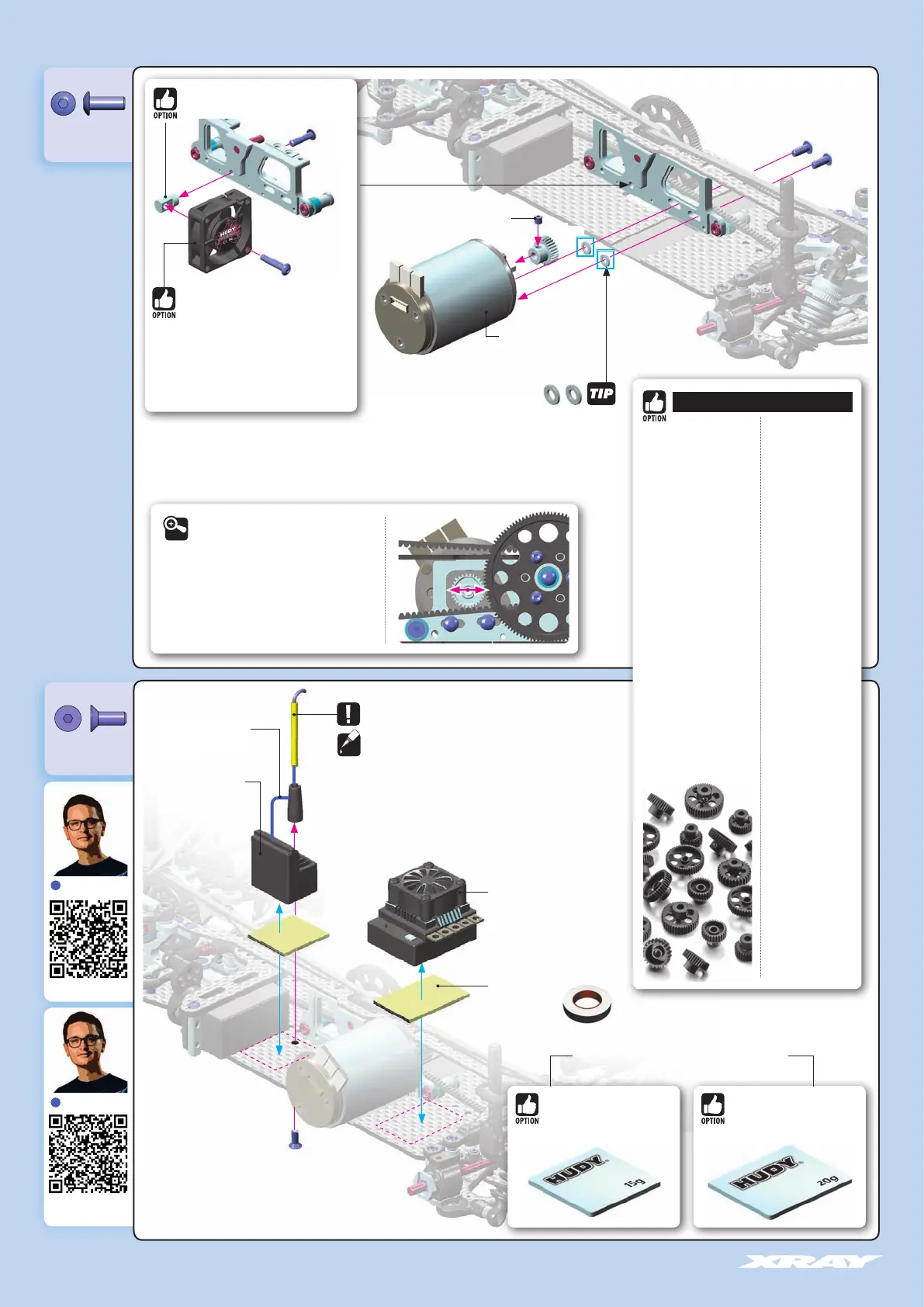

Adjust the motor so the pinion meshes with the spur
gear properly. Make sure the gear mesh is not too tight.
There should be a small amount of play between the
teeth of the pinion gear and the spur gear.
Motor & Pinion
(NOT INCLUDED)
(#901302) 3x2.5mm set screw
(NOT INCLUDED)
#306410
ALU FAN MOUNT
#293110 HUDY BRUSHLESS RC FAN 30MM
WITH EXTERNAL SOLDERING TABS
#293111 HUDY BRUSHLESS RC FAN 40MM
WITH EXTERNAL SOLDERING TABS
#293112 HUDY BRUSHLESS RC FAN 30MM
WITH INTERNAL SOLDERING TABS
#293113 HUDY BRUSHLESS RC FAN 40MM
WITH INTERNAL SOLDERING TABS
Double-sided Tape
HUDY #107875
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
Feed the receiver wire
into the antenna tube.
NOTE: If the antenna tube does not hold the antenna
properly, apply a small drop of the CA glue to the
outside end of the antenna tube while inserting it
into the holder. Make sure not to apply glue to the
inside of the antenna tube, or the antenna wire will
get permanently stuck.
For perfect left-to-right balance, we recommend using
HUDY pure tungsten weights under your electronics.
CA
#305912 12T / 48P
#305913 13T / 48P
#305914 14T / 48P
#305915 15T / 48P
#305916 16T / 48P
#305917 17T / 48P
#305918 18T / 48P
#305919 19T / 48P
#305920 20T / 48P
#294021 21T / 48P
#294022 22T / 48P
#294023 23T / 48P
#305924 24T / 48P
#305925 25T / 48P
#305926 26T / 48P
#305927 27T / 48P
#305928 28T / 48P
#305929 29T / 48P
#294030 30T / 48P
#305931 31T / 48P
#305932 32T / 48P
#294033 33T / 48P
#305934 34T / 48P
#294035 35T / 48P
#305968 18T / 64P
#305969 19T / 64P
#305970 20T / 64P
#305971 21T / 64P
#305972 22T / 64P
#305973 23T / 64P
#305974 24T / 64P
#305975 25T / 64P
#305976 26T / 64P
#305977 27T / 64P
#294128 28T / 64P
#294129 29T / 64P
#294130 30T / 64P
#294131 31T / 64P
#305982 32T / 64P
#294133 33T / 64P
#305984 34T / 64P
#305985 35T / 64P
#294136 36T / 64P
#294137 37T / 64P
#294138 38T / 64P
#294139 39T / 64P
#294140 40T / 64P
#294141 41T / 64P
#294142 42T / 64P
#294143 43T / 64P
#294144 44T / 64P
#294145 45T / 64P
#305996 46T / 64P
#294147 47T / 64P
#294148 48T / 64P
#294149 49T / 64P
#294150 50T / 64P
#294152 52T / 64P
#294154 54T / 64P
#294156 56T / 64P
#294158 58T / 64P
#294160 60T / 64P
ALU PINION GEARS (OPTION)
#293086
HUDY PURE TUNGSTEN WEIGHT
THIN 15g - (24.5x24.5mm)
#293087
HUDY PURE TUNGSTEN WEIGHT
THIN 20g - (31x26mm)
1mm
1mm
If you use very heavy battery for stock racing and very light
speedo and motor, you can use shims between motor and
motor mount to move the weight more outside on the motor
side which can help to have same weight balance left and right.
You can use shims #303122 (3x6x1mm) not included in kit.
7. FINAL ASSEMBLY
