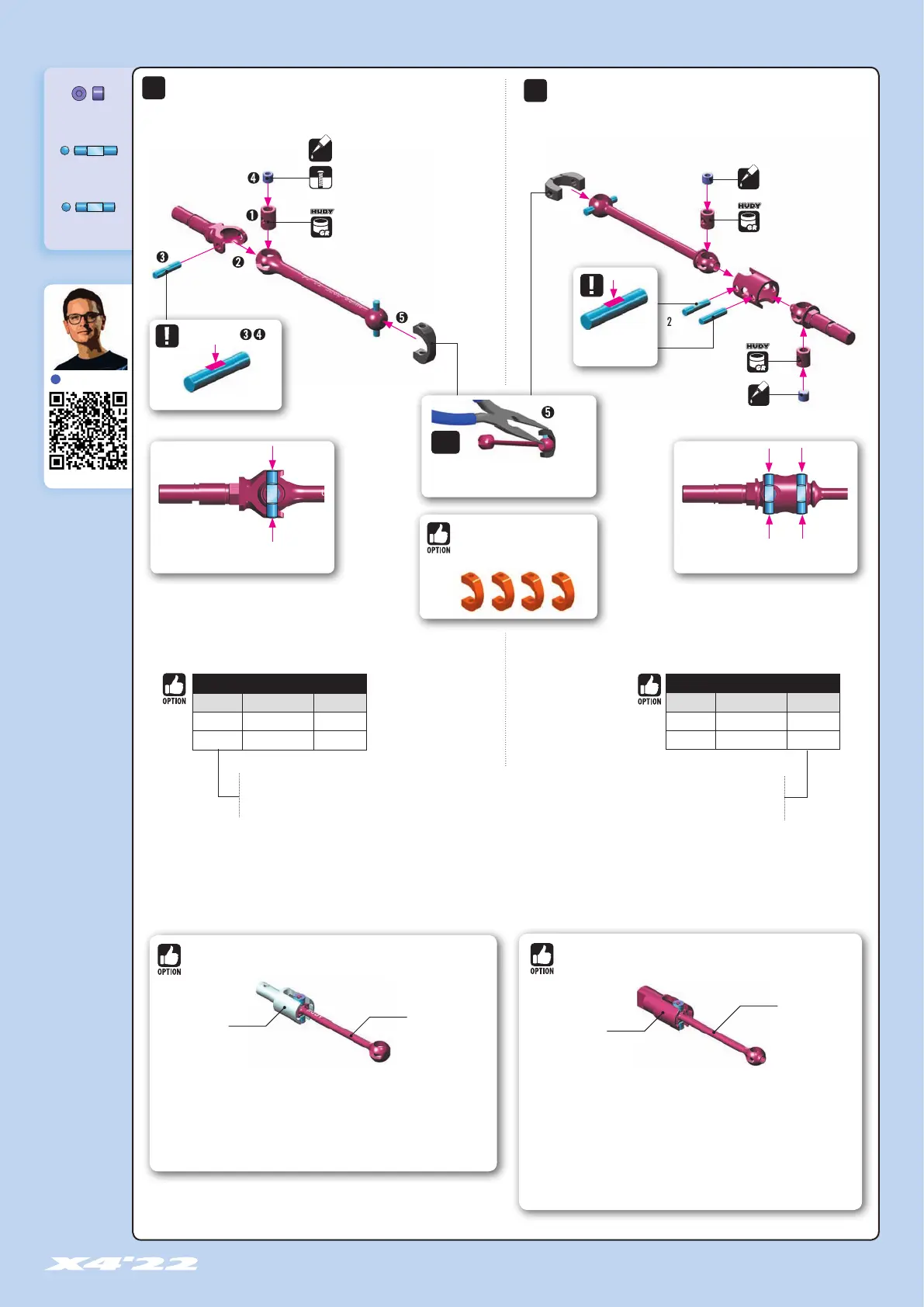

DRIVE SHAFTS
VIDEO TECH TIP
▶
901302
SB M3x2.5
305392
P 2x10
305394
P 2x9
5. FRONT & REAR SUSPENSION
THREAD LOCK
THREAD LOCK
THREAD LOCK
GRAPHITE GREASE
(HUDY #106210)
2x10mm
2x9mm
GRAPHITE GREASE
(HUDY #106210)
TL
TL
DO NOT OVERTIGHTEN
REAR TRANSMISSION - CVD DRIVE SHAFT
FRONT TRANSMISSION - ECS DRIVE SHAFT
TL
#305242
DRIVE SHAFT REPLACEMENT CAP
3.5mm ORANGE - STRONG (4)
DETAIL STEP
Set-screw against the flat spot.
Set-screw against
the flat spot.
2x
2x
Longer driveshafts 59mm Front/ 54mm Rear make the car easier to drive by creating more traction and better stability, felt mostly in chicanes.
However, the car will also understeer more than when using the shorter 58mm Front / 52mm Rear driveshafts that create more steering and
make the car more aggressive. Both left and right should ALWAYS be the same length at each end of the car (FL = FR; RR = RL).
59mm Front / 54mm Rear shafts are recommended for carpet tracks and large asphalt tracks.
58mm Front / 52mm Rear shafts are recommended for low-traction or tight asphalt tracks.
REAR CVD DRIVE SHAFTS
#305370 54mm - CVD INCLUDED
#305407 52mm - BB CVD OPTION
#305408 54mm - BB CVD OPTION
FRONT ECS DRIVE SHAFTS
#305360 58mm - ECS INCLUDED
#305306 58mm - BB ECS OPTION
#305307 59mm - BB ECS OPTION
The optional ECS ball-bearing driveshafts feature a new ball-bearing assembly
at the inner end of the driveshaft where it inserts into the outdrive. The friction
between the driveshaft and the outdrive is greatly reduced, which gives smoother
handling especially on fast direction changes such as chicanes. The reduced friction
also helps to increase cornering speeds.
The new ball-bearing driveshafts must be used with optional:
#305138 SOLID AXLE ECS BB DRIVESHAFT ADAPTER - HUDY SPRING STEEL™ (2)
TIP
For easy installation of the #305241
plastic caps, use pliers as shown.
The CVD bearing driveshafts improve off-power steering and rotation, but decrease
rear traction and stability. Recommended for use in high-traction conditions, and for
tracks with many hairpin corners.
The new ball-bearing driveshafts must be used with optional:
#304972 ALU GEAR DIFF CVD BB DRIVESHAFT ADAPTER - SWISS 7075 T6 (2)
#304972
#305306
#305307
#305138
#305407
#305408
#305407 CVD BB DRIVE SHAFT 52mm - SET
#305408 CVD BB DRIVE SHAFT 54mm - SET
#305306 ECS BB DRIVE SHAFT 58mm - SET
#305307 ECS BB DRIVE SHAFT 59mm - SET
Make sure that the pin is mounted into the
drive shaft into the center.
Make sure that the pin is mounted into the
drive shaft into the center.
To Next Page
