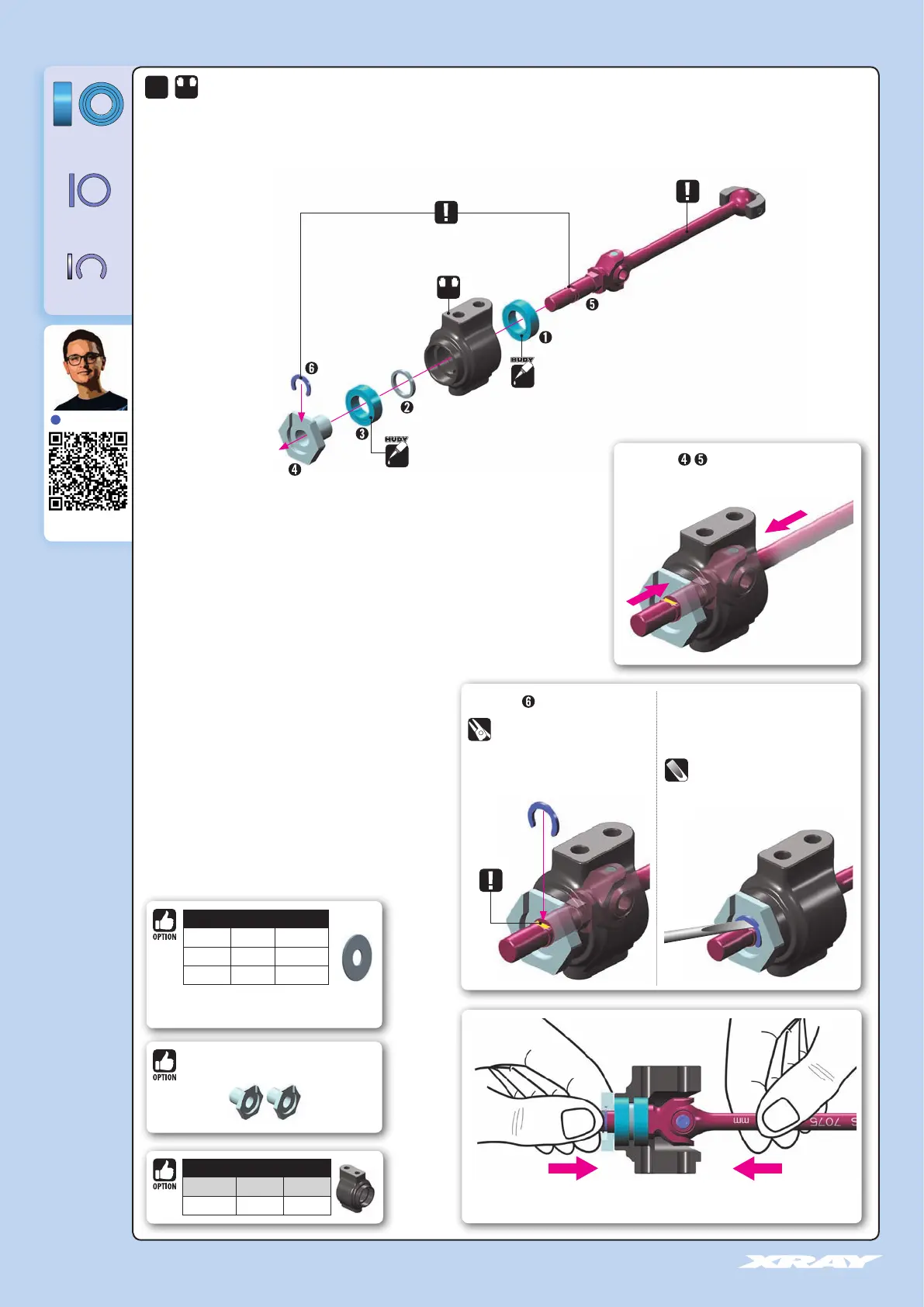

Xray X4 - 5. FRONT & REAR SUSPENSION; REAR TRANSMISSION

26
FRONT & REAR
UPRIGHTS
VIDEO TECH TIP
▶
940611
BB 6x10x3
968050
C 5
962061
S 6x7.5x1
REAR TRANSMISSION
L=R
Use Alu 54mm Drive
Shafts in rear.
BEARING OIL
(HUDY #106230)
1mm
OIL
OIL
2x
L=R
Left UPRIGHT = Right UPRIGHT
NOTE
ORIENTATION
NOTE
ORIENTATION
After inserting the clip, push both sides again to
ensure that there is sufficient axial play.
CUTAWAY VIEW
INSTALL the C-CLIP with Combination
pliers Tool (HUDY #189020).
Before installing the C-clip, make sure that the
slot on the axle is in the line with the cut out
on the hex.
DETAIL STEP
REMOVE the C-CLIP with Screwdriver
Tool 3.0mm (HUDY #153055).
After inserting the driveshaft through the wheel hub,
push both sided to ensure they are properly aligned.
DETAIL STEP
5. FRONT & REAR SUSPENSION
STEERING BLOCKS
#302240-G GRAPHITE INCLUDED
#302241 ALU OPTION
#305357
X4 ALU WHEEL HUB -0.5mm SWISS 7075 T6 (2)
To adjust the width of the car, optional wheel
shims can be quickly added or removed.
OFFSET WHEEL SHIMS
#305380 0.75mm OPTION
#305382 0.5mm OPTION
#305381 1.0mm OPTION
