27
L=R
Left UPRIGHT = Right UPRIGHT
940611
BB 6x10x3
968050
C 5
962061
S 6x7.5x1

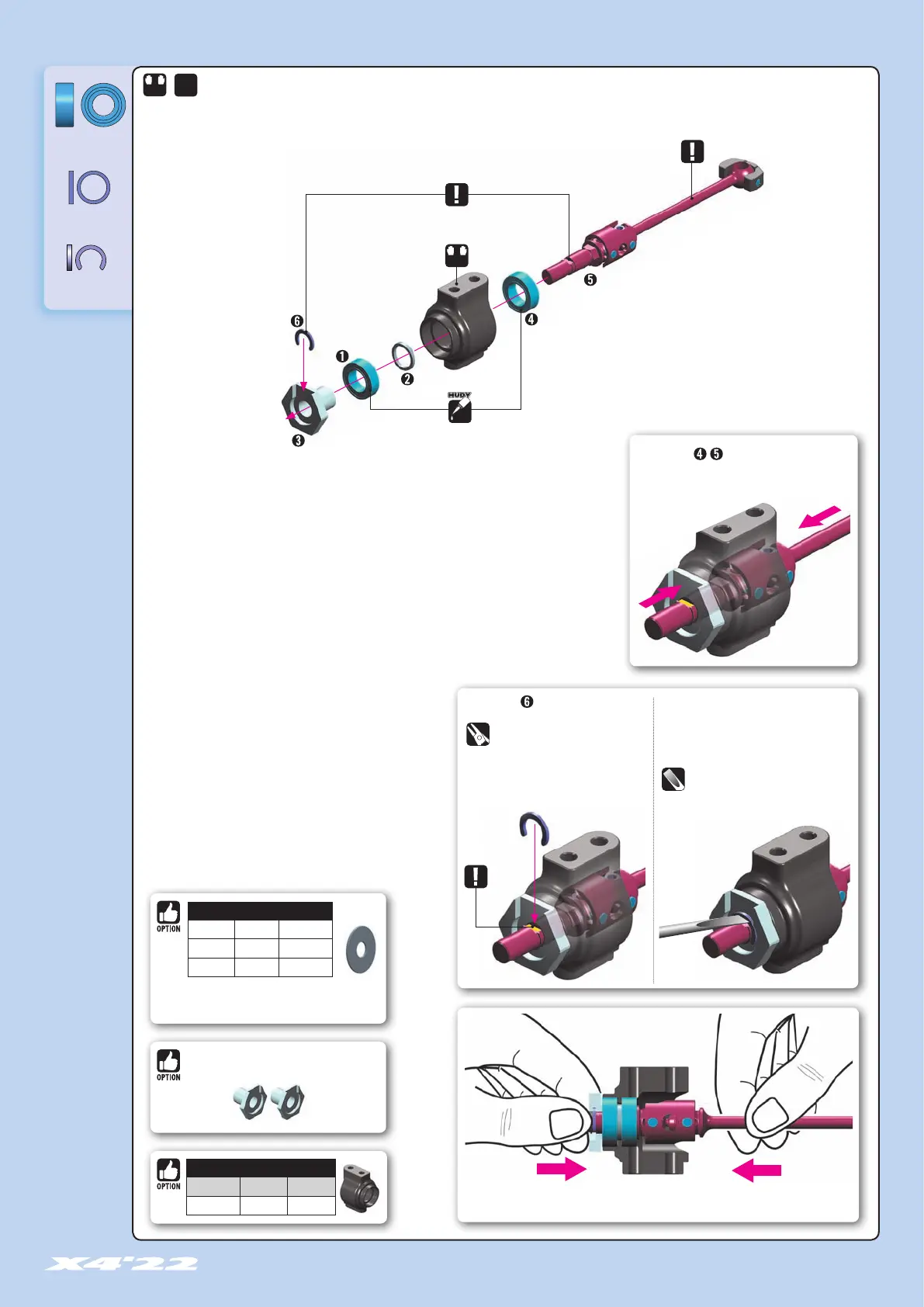

After inserting the clip, push both sides again to
ensure that there is sufficient axial play.
NOTE
ORIENTATION
NOTE
ORIENTATION
CUTAWAY VIEW
Use Steel 58mm ECS
Drive Shafts in front.
FRONT TRANSMISSION
L=R
Before installing the C-clip, make sure that the
slot on the axle is in the line with the cut out
on the hex.
INSTALL the C-CLIP with Combination
pliers Tool (HUDY #189020).
DETAIL STEP
REMOVE the C-CLIP with Screwdriver
Tool 3.0mm (HUDY #153055).
After inserting the driveshaft through the wheel hub,
push both sided to ensure they are properly aligned.
DETAIL STEP
5. FRONT & REAR SUSPENSION
2x
BEARING OIL
(HUDY #106230)
1mm
OIL
STEERING BLOCKS
#302240-G GRAPHITE INCLUDED
#302241 ALU OPTION
#305357
X4 ALU WHEEL HUB -0.5mm SWISS 7075 T6 (2)
To adjust the width of the car, optional wheel
shims can be quickly added or removed.
OFFSET WHEEL SHIMS
#305380 0.75mm OPTION
#305382 0.5mm OPTION
#305381 1.0mm OPTION
