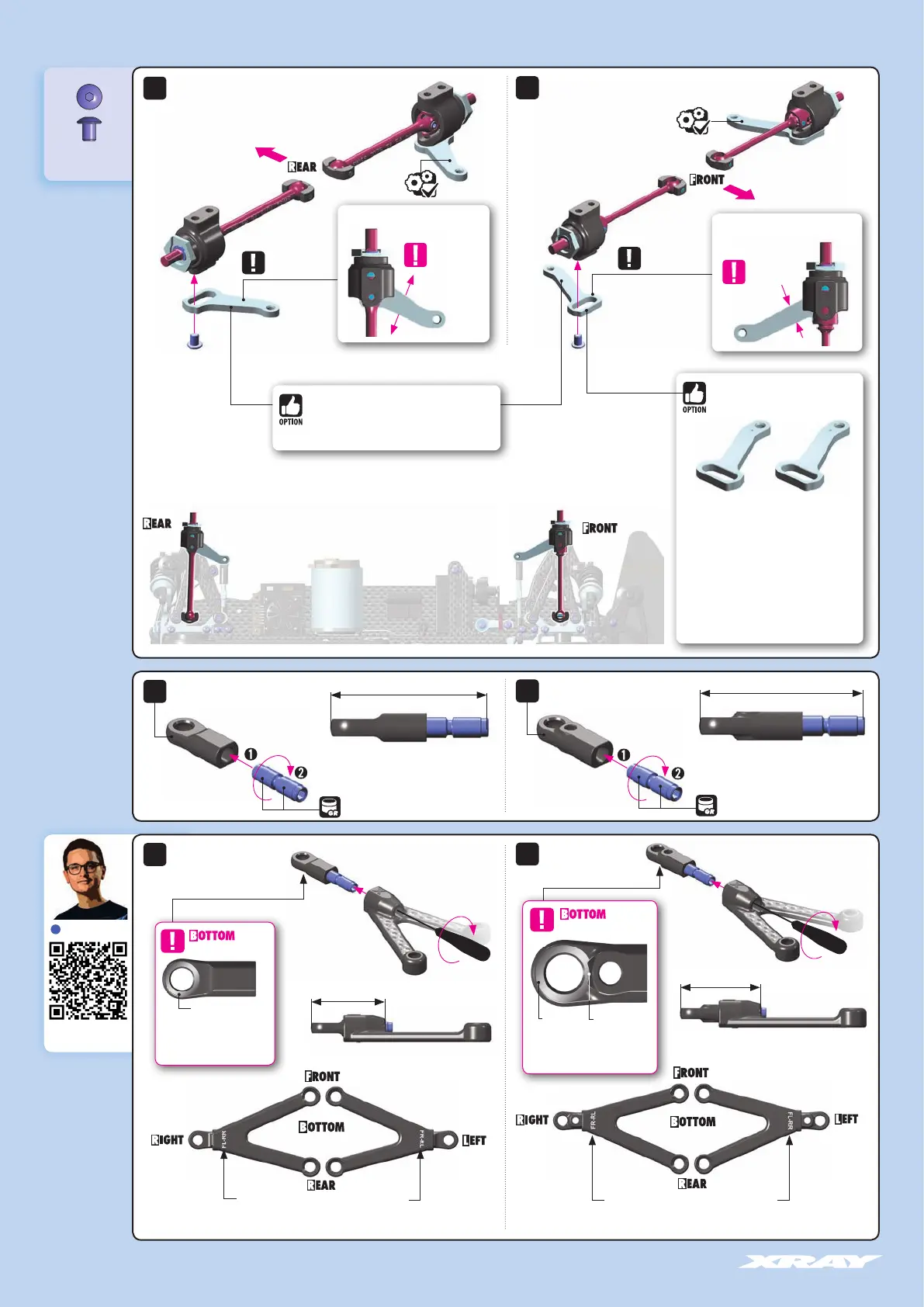

CAMBER & UPPER
ARMS
VIDEO TECH TIP
▶
902304
SH M3x4
REAR TRANSMISSION
REAR
REAR
FRONT TRANSMISSION
FRONT
FRONT
2x
2x
2x
2x
2x
2x
VIEW
VIEW
NOTE
ORIENTATION
NOTE
ORIENTATION
+1mm front steering arms are offered
as an option, mainly recommended for
high-traction carpet conditions such as black
carpet. The +1mm arms have the linkage
point moved 1mm outward, closer towards
the wheel, meaning that the steering links
are longer. The +1mm arms makes the
steering a little less sensitive but more
precise.
#302394
STEERING PLATE FRONT +1mm (2)
29.5mm
26.2mm
Check arm orientation so that each arm is in
the correct location with the markings facing
down when installed.
Check arm orientation so that each arm is in
the correct location with the markings facing
down when installed.
24.6mm
31mm
2.0 mm
2.0 mm
ALU REAR ARS PLATE - SHORTER
WIDER
ALU STEERING PLATE - LONGER
NARROWER
Push inside
Push inside
Tighten
Apply Graphite Grease
Apply Graphite Grease
Tighten
5. FRONT & REAR SUSPENSION
NOTE ORIENTATION
#302396 STEEL FRONT STEERING PLATE (2)
#302395 STEEL REAR ARS PLATE (2)
Use optional steel plates for increased durability.
Shiny side
Ball joint should be aligned
in the arm with the shiny side
facing down.
Shiny side
Cut out
Ball joint should be aligned
in the arm with the machined
clearance facing down.
NOTE ORIENTATION
To Next Page
