Xray X4 User Manual

24
05
BAG
302132-M
302640
302666
362651
303123-K
303232
303121-K
901302
901304
303455
303455
302823 (X4 Graphite)
302824 (X4 Alu)
303822 (X4 Graphite)
303823 (X4 Alu)
930306
305392
305370
305343
940611
302432
302432
303457
303457
901302
303433
302663
302663
303211
302240-G
962061
305358
303125-K
902304
305347
305254
362651
303123-K
303433
930306
901304
305231
940611
940611
305260
305241
305253
901302
305253
901302
305241
901302
305394
#305242
DRIVE SHAFT REPLACEMENT CAP 3.5MM
- ORANGE - STRONG (4)
303122-K
303121-K
303232
302666
302142-M
302640
968050
362651
362651
303123-K
303121-K
303123-K
302392
303121-K
303125-K
302393
902304
302240-G
962061
940611
968050
305358

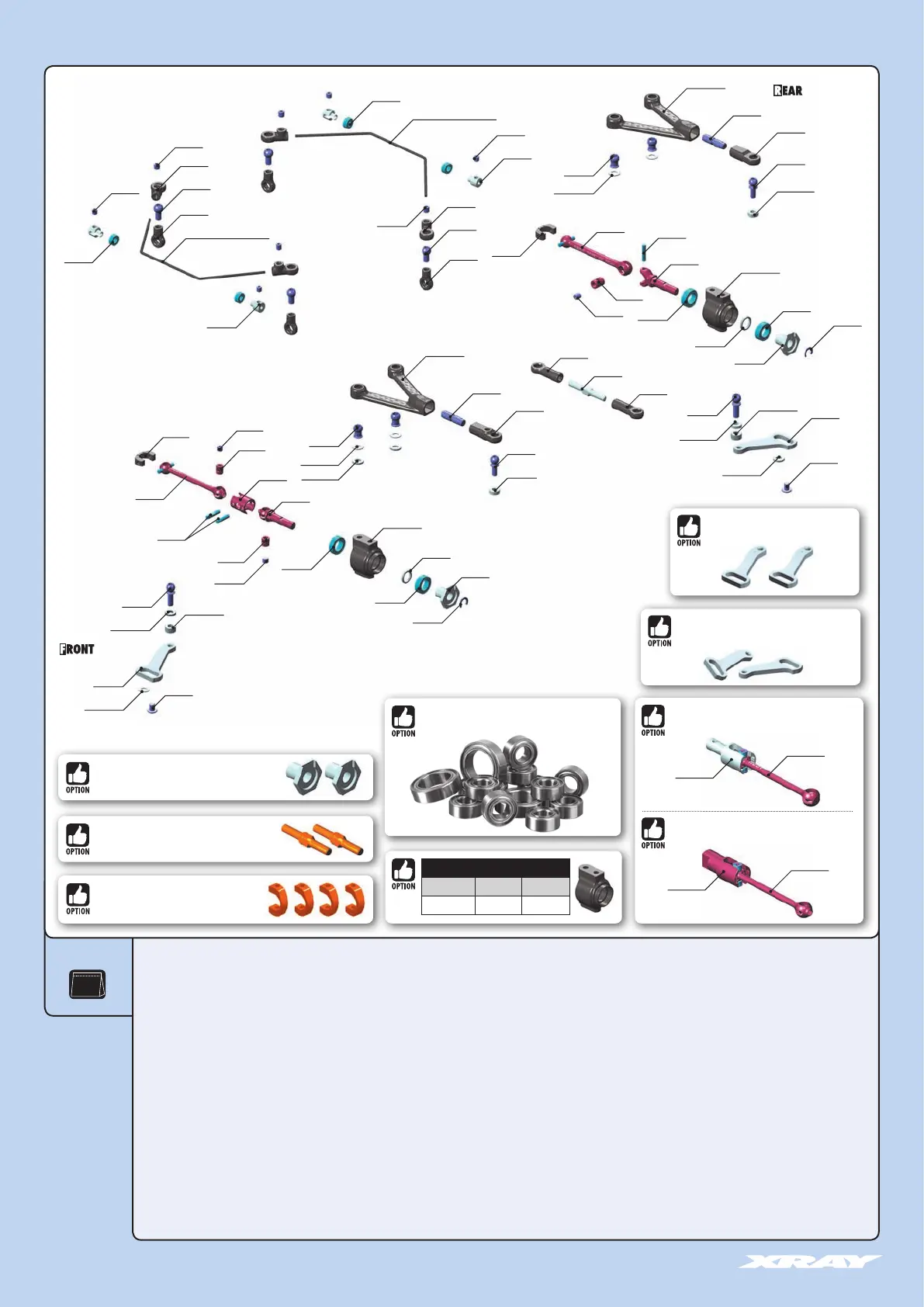

5. FRONT & REAR SUSPENSION
302132-M X4 COMPOSITE CFF™ CARBON-FIBER FUSION UPPER ARM - MEDIUM - FR/RL
302142-M
X4 COMPOSITE CFF™ CARBON-FIBER FUSION UPPER ARM - MEDIUM - FL/RR
302240-G X4 COMPOSITE STEERING BLOCK - GRAPHITE
302392 X4 ALU FRONT STEERING PLATE - SWISS 7075 T6 (2)
302393 X4 ALU REAR ARS PLATE - SWISS 7075 T6 (2)
302432 STEEL BALL END 4.9MM WITH 4MM THREAD (2)
302640 ADJUSTABLE CAMBER SCREW 14MM M4 L/R - HUDY SPRING STEEL™ (2)
302663 COMPOSITE BALL JOINT 4.9MM - OPEN - V2 (8)
302666 COMPOSITE BALL JOINT 4.9MM F+R - OPEN (2+2)
302823 X4 ANTI-ROLL BAR - FRONT 1.3 MM
302824 X4 ANTI-ROLL BAR - FRONT 1.4 MM
303121-K ALU SHIM 3x6x0.5MM - BLACK (10)
303122-K ALU SHIM 3x6x1.0MM - BLACK (10)
303123-K ALU SHIM 3x6x2.0MM - BLACK (10)
303125-K ALU SHIM 3x6x3.0MM - BLACK (10)
303211 ALU ADJUSTABLE TURNBUCKLE L/R 30 MM - SWISS 7075 T6 (2)
303232 X4 UPPER ARM BALL UNIVERSAL 4.9MM - HUDY SPRING STEEL™ (2)
303433 ALU ANTI-ROLL BAR BUSHING - 6MM (2)
303455 COMPOSITE ANTI-ROLL BAR BALL JOINT 4.9 MM (4)
303457 BALL JOINT 4.9MM - EXTRA SHORT OPEN (4)
303822 X4 ANTI-ROLL BAR - REAR 1.2 MM
303823 X4 ANTI-ROLL BAR - REAR 1.3 MM
305231 DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
305241 DRIVE SHAFT REPLACEMENT CAP 3.5 MM (4)
305253 ECS DRIVE SHAFT COUPLING FOR 2MM PIN - HUDY SPRING STEEL™
305254 ECS (ES) DRIVE SHAFT CASE FOR 2MM PIN - HUDY SPRING STEEL™
305260 X4 ECS DRIVE SHAFT 58MM FOR 2MM PIN - HUDY SPRING STEEL™ (1)
305343 X4 DRIVE AXLE - LIGHTWEIGHT - HUDY SPRING STEEL™
305347 X4 ECS DRIVE AXLE FOR 2MM PIN - HUDY SPRING STEEL™
305358 X4 ALU WHEEL HUB - SWISS 7075 T6 (2)
305360 X4 ECS DRIVE SHAFT 58MM - HUDY SPRING STEEL™ - SET
305370 X4 ALU DRIVE SHAFT 54MM - SWISS 7075 T6 - HARD COATED
305392 DRIVE SHAFT PIN 2 x 10 WITH FLAT SPOT (2)
305394 ECS DRIVE SHAFT PIN 2 x 9 WITH FLAT SPOT (2)
362651 BALL END 4.9MM WITH THREAD 8MM (2)
901302 HEX SCREW SB M3x2.5 (10)
901304 HEX SCREW SB M3x4 (10)
902304 HEX SCREW SH M3x4 - STAINLESS (10)
930306 BALL-BEARING 3x6x2.5 STEEL-SEALED - OILED (2)
940611 BALL-BEARING 6x10x3 RUBBER SEALED - OIL (2)
962061 WASHER S 6x7.5x1.0 (10)
968050 C-CLIP 5 (10)
#309003
SET OF CERAMIC BALL-BEARINGS (14)
#303211-O
ALU TURNBUCKLE L/R 30mm ORANGE
- SWISS 7075 T6 (2)
#305407
#305408
#304972
#305306
#305307
#305138
#305407 CVD BB DRIVE SHAFT 52mm - SET
#305408 CVD BB DRIVE SHAFT 54mm - SET
#305306 ECS BB DRIVE SHAFT 58mm - SET
#305307 ECS BB DRIVE SHAFT 59mm - SET
STEERING BLOCKS
#302240-G GRAPHITE INCLUDED
#302241 ALU OPTION
#305357
X4 ALU WHEEL HUB -0.5 SWISS 7075 T6 (2)
#302394
STEERING PLATE FRONT +1mm (2)
#302396 STEEL FRONT STEERING PLATE (2)
#302395 STEEL REAR ARS PLATE (2)
