Xray X4 User Manual

8

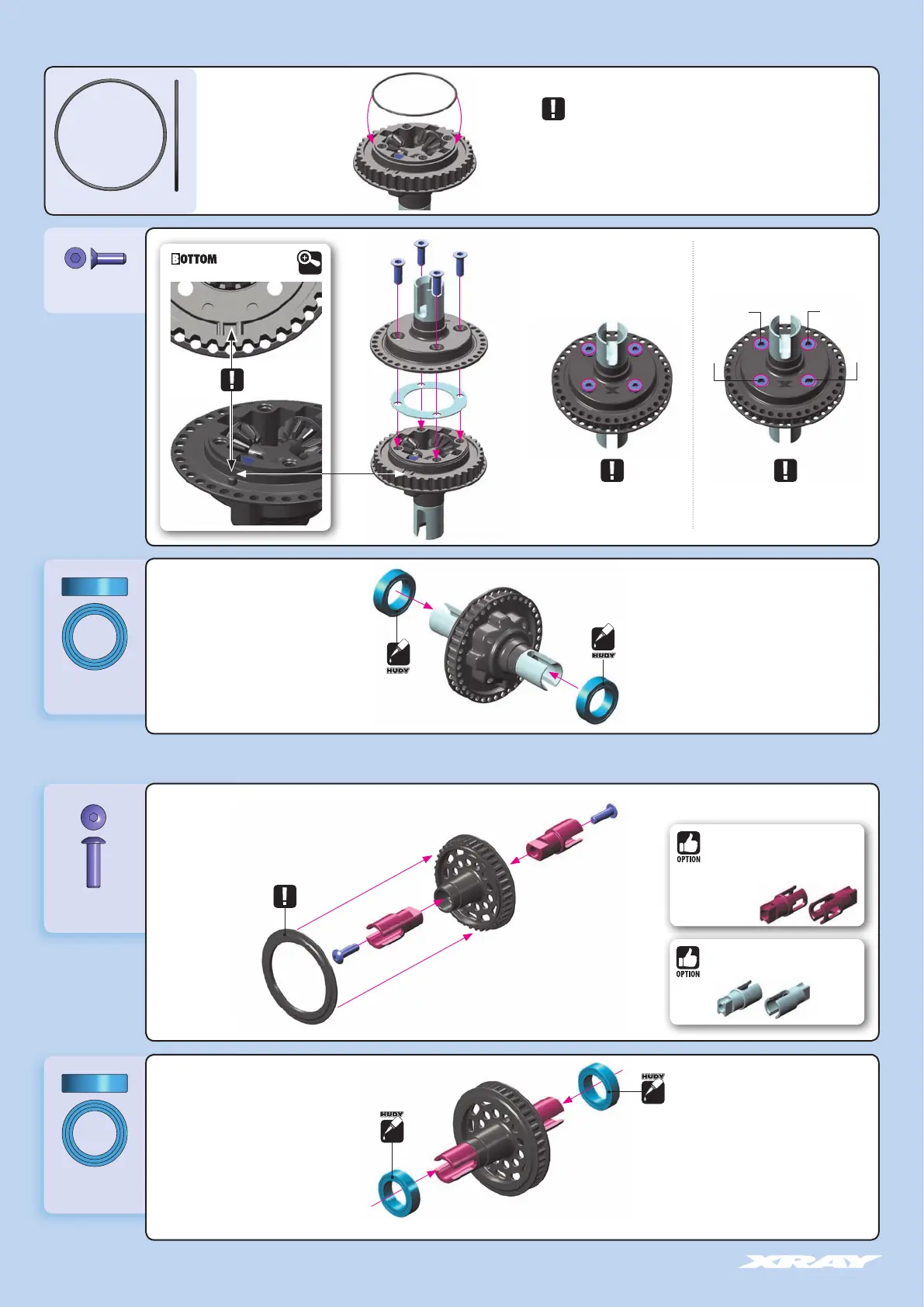

1. GEAR DIFFERENTIAL & FRONT SOLID AXLE
902310
SH M3x10
941015
BB 10x15x4
941015
BB 10x15x4
OIL
903258
SFH M2.5x8
Tighten the screws equally but do
NOT tighten them completely.
Finish tightening in this order.
➊
➋
➌
➍
NOTE
ORIENTATION
DETAIL
971240
O 24x0.7
After disassembling the gear diff, the large O-ring may have an
increased size and may be more difficult to re-install. We recommend
either inserting the old O-ring carefully in the diff cover, or installing
a new O-ring if the old one cannot be made to fit properly.
BEARING OIL
(HUDY #106230)
OIL
BEARING OIL
(HUDY #106230)
OIL
1. FRONT SOLID AXLE
OIL
#305137
STEEL LIGHTWEIGHT SOLID AXLE
DRIVESHAFT ADAPTERS HUDY
SPRING STEEL™ (2)
#305136
ALU SOLID DRIVESHAFT ADAPTERS (2)
NOTE
ORIENTATION

Xray X4 Specifications

General

Scale	1/10
Power Source	Electric
Drivetrain	4WD
Motor Type	Brushless
Drive Type	4WD
Battery Type	LiPo
Battery Voltage	7.4V
Radio System	2.4GHz
Tire Type	Rubber (Not Included)
Body Material	Polycarbonate
