Xray XB4 User Manual

38

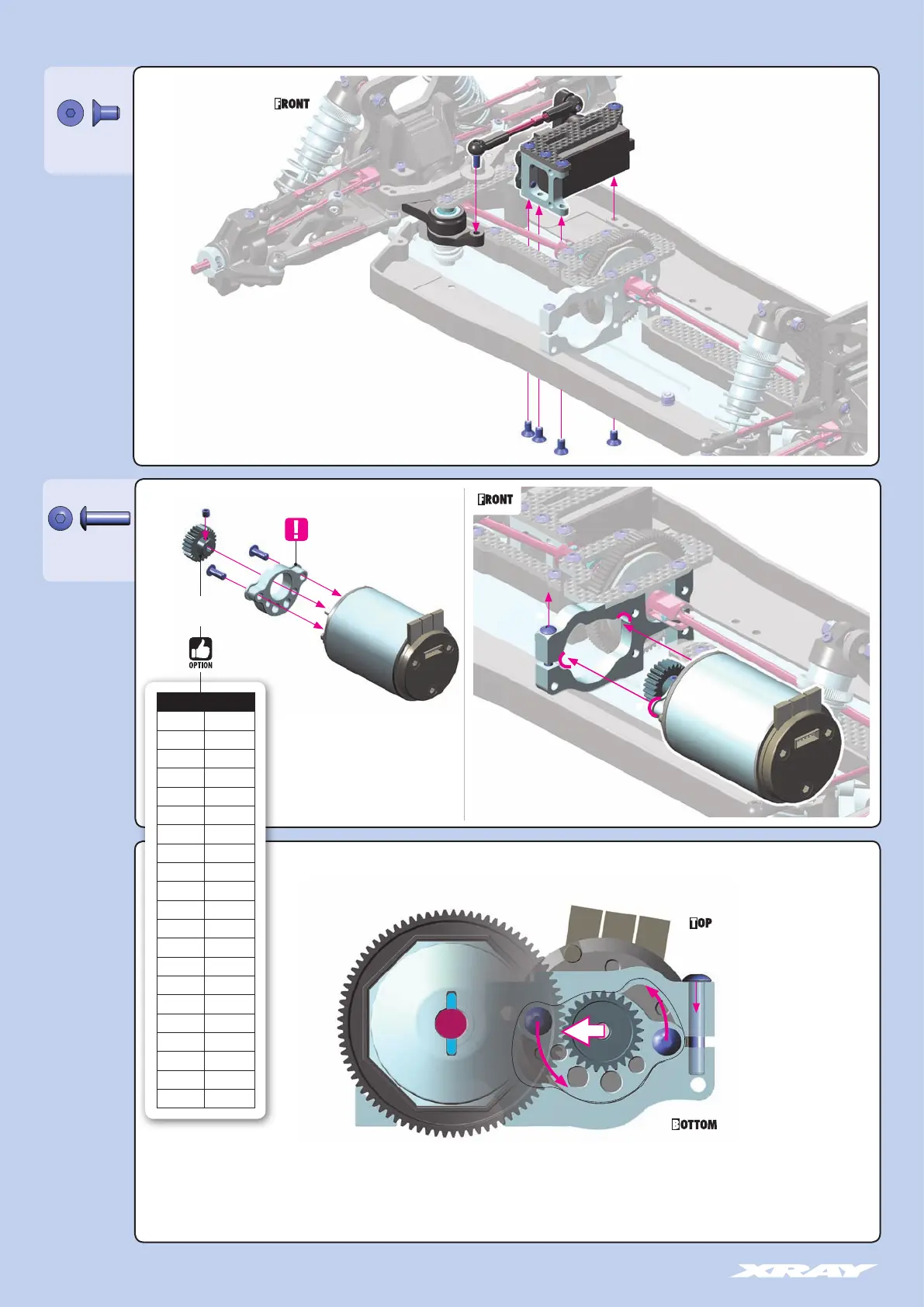

8. FINAL ASSEMBLY
902310
SH M3x10
PINIONS
#365718 18T / 48P
#365719 19T / 48P
#365720 20T / 48P
#365721 21T / 48P
#365722 22T / 48P
#365723 23T / 48P
#365724 24T / 48P
#365725 25T / 48P
#365726 26T / 48P
#365727 27T / 48P
#365728 28T / 48P
#365729 29T / 48P
#365730 30T / 48P
#365731 31T / 48P
#365732 32T / 48P
#365733 33T / 48P
#365734 34T / 48P
#365735 35T / 48P
#365736 36T / 48P
#365737 37T / 48P
#365738 38T / 48P
➋
➊
NOTE
ORIENTATION
Adjust the motor so the pinion meshes with the spur gear properly. Make sure the gear mesh is not too tight.
There should be a small amount of play between the teeth of the pinion gear and the spur gear.
➊ Adjust gear mesh
➋ Tighten the screw
➊
➊
➊
➋
Pinion
(NOT INCLUDED)
903306
SFH M3x6
➊ Loosen the screw
➋ Insert motor into the bulkhead
➊
➋

Xray XB4 Specifications

General

Drive	4WD
Suspension	Independent
Type	Buggy
Battery Type	LiPo
Differential	Gear
Motor Type	Brushless
Class	Off-Road
Radio System	2.4 GHz
Scale	1:10
