Xray XB4 - 8. FINAL ASSEMBLY; ALTERNATIVE 1; ALTERNATIVE 2

39
902312
SH M3x12

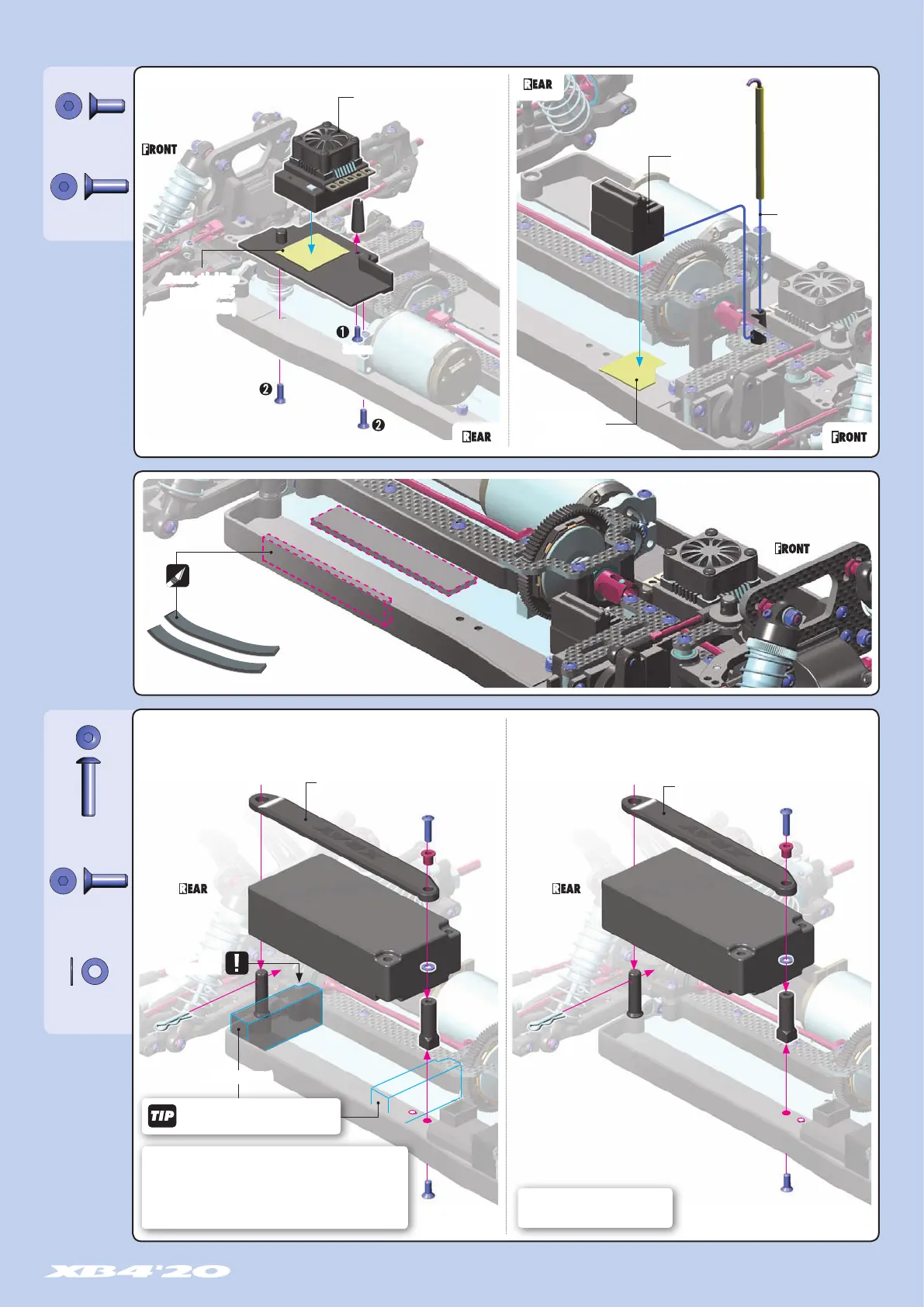

8. FINAL ASSEMBLY
903310
SFH M3x10
962030
S 3x6x0.3
903310
SFH M3x10
903308
SFH M3x8
Double-sided Tape
HUDY #107875
(NOT INCLUDED)
Double-sided Tape
HUDY #107875
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
Feed the receiver wire
into the antenna tube
EXTRA-LONG BATTERY HOLDER
(#366115)
LONG BATTERY HOLDER
(#366114)
➌ ➌
Speed Controller
(NOT INCLUDED)
3x10mm
3x8mm
➋
➋
➊
➊
➍ ➍
Self-adhesive Foam Strip
(#107871 HUDY)
CUT
ALTERNATIVE 1
FORWARD WEIGHT BALANCE POSITION
(INITIAL SETTING)
ALTERNATIVE 2
REARWARD WEIGHT BALANCE POSITION
NOTE
ORIENTATION
(INITIAL SETTING)
The foam battery spacer can be installed
either in front of or behind the battery.
FRONT BATTERY POSITION: More traction on FRONT suspension,
more steering, recommended for medium- and high-traction tracks.
REAR BATTERY POSITION: More traction on REAR suspension,
more stable, recommended for medium - and low-traction tracks.
Using the standard battery holder
positions the battery to the REAR.
