40
2x
L=R
➍

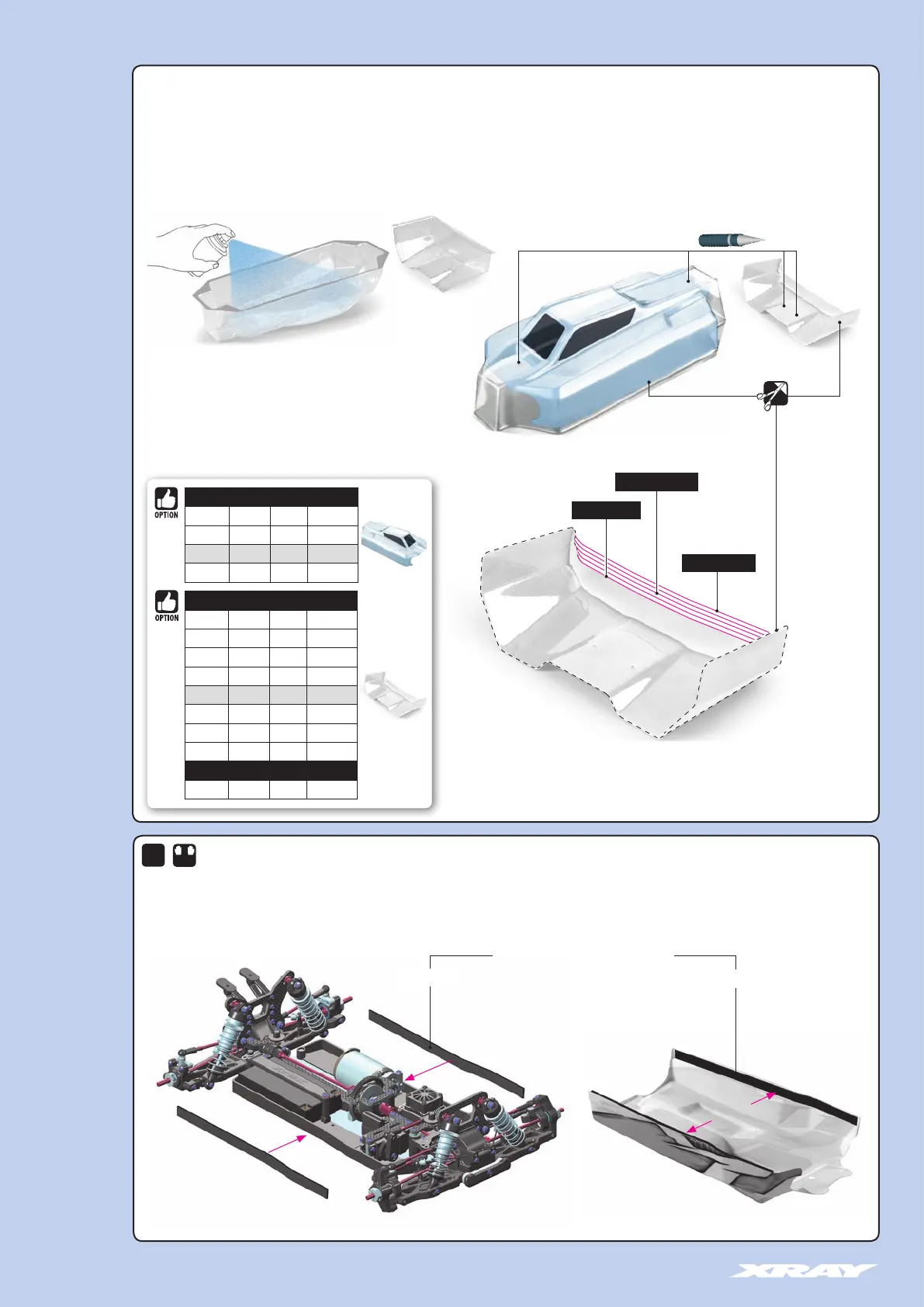

Before cutting and making holes on the BODY, put the unpainted body on the chassis to
confirm the mounting position and location for holes and cutouts. Before cutting and making
holes on the WING, put the unpainted wing on the wing holders to confirm the mounting
position and location for holes and cutouts.
Before painting, wash the inside of the body with mild detergent, and then rinse and dry
thoroughly.
Mask all windows.
➊
➋
➌
➎
➏
➐
➑
WING CUTTING LINE OPTIONS
Apply paint masks as appropriate.
Paint the body using paints formulated for polycarbonate bodies.
When the paint is dry, remove the masking.
Carefully cut out the body using appropriate scissors or cutting tools.
When you have finished cutting, peel off the external protective films.
INITIAL POSITION
MORE TRACTION
LESS TRACTION
BODY REAMER (HUDY #107600)
8. FINAL ASSEMBLY
Double-sided Velcro™ tape is used to seal the body against the side guards.
VELCRO™ TAPE WITH DOUBLE-SIDED TAPE
(Velcro™ tape - hook side) (Velcro™ tape - soft side)
XRAY LEXAN BODY
#369703 0.75mm OPTION
#369704 0.50mm OPTION
#369705 0.75mm ALPHA INCLUDED
#369706 0.50mm ALPHA OPTION
XRAY LEXAN REAR WING
#323510 1.0mm OPTION
#323511 1.5mm OPTION
#323513 1.0mm RANK OPTION
#323517 1.0mm TEC OPTION
#363510 1.0mm INCLUDED
#363510 1.0mm OPTION
#363511 1.5mm OPTION
#363512 2.0mm OPTION
XRAY LEXAN CENTER FIN
#323515 1.0mm ZAP OPTION
