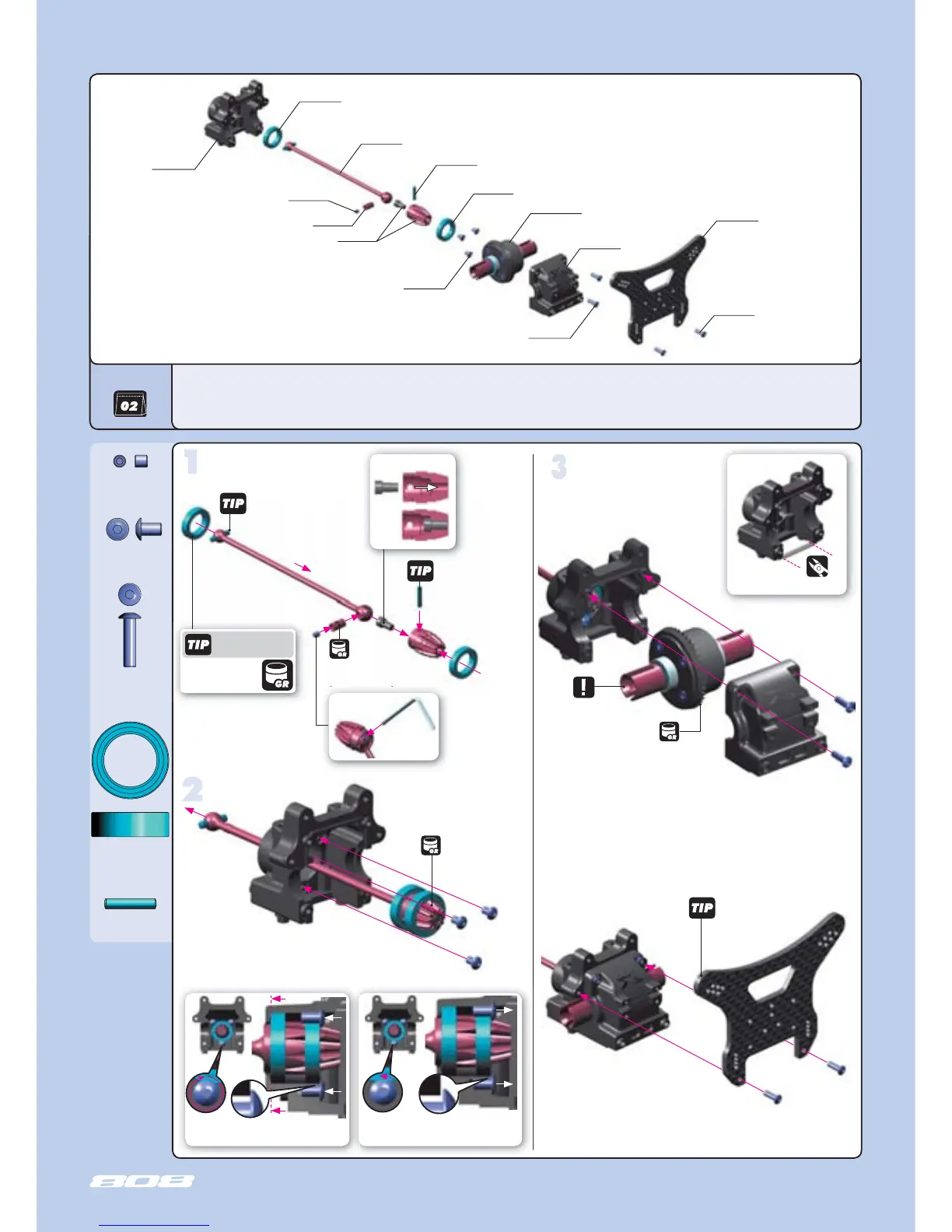

REAR TRANSMISSION
Cut on both front
and rear bulkhead blocks
REAR DIFF 2000 cSt
Follow the TECH TIP on page
5 to protect graphite parts
Graphite Grease
(HUDY #106210)
Follow the TECH TIP on page
5 for drive shaft pin servicing
3x5
Graphite Grease
(HUDY #106210)
941319
BB 13x19x4
902305
SH 3x5
902312
SH 3x12
980263
P 2.5x13
901303
SB 3x3
3x12
Loosen all 3 screws VERY SLIGHTLY
(approximately 1/12 of a turn). Pinion must turn freely.
➊
➋
➊
➋
Graphite Grease
(HUDY #106210)
DETAIL
step
step
4
BAG
35 2002 XB808 DIFF BULKHEAD BLOCK SET FRONT/REAR
35 3092 XB808 GRAPHITE REAR SHOCK TOWER - CNC MACHINED 3.5 MM
35 5111 XB808 PINION GEAR 10T
35 5238 XB808 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
35 5621 XB808 REAR CENTRAL CVD DRIVE SHAFT - HUDY SPRING STEEL™
90 1303 HEX SCREW SB M3x3 (10)
90 2305 HEX SCREW SH M3x5 (10)
90 2312 HEX SCREW SH M3x12 (10)
94 1319 HIGH-SPEED BALL-BEARING 13x19x4 RUBBER SEALED (2)
98 0263 PIN 2.5x13 (10)
3x12
step
step
➊
➋
➌
➏
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
STEP DETAIL
➊
➐
➎
STEP DETAIL
➎
Replace this pin
when wear is
present
➍
Use 1.5mm
Allen wrench
352002
355001
REAR DIFF
980263
941319
352002
941319
355238
902305
902312
902312
353092
355621
355111
901303
DETAIL
Tighten screws fully. Make sure the
bearing seats properly in the bulkhead.
DETAIL
To Next Page
