7
GEAR DIFF
VERY IMPORTANT!
Fill the differentials with oil just
above the satellite gears.
After assembly the differentials
should have a length of 32.6~32.7
mm measured from the ends of the
installed ball-bearings. If differentials
are longer, retighten the 4 screws
holding the crown gears.
32.6~32.7 mm
OIL
INCORRECT
CORRECT

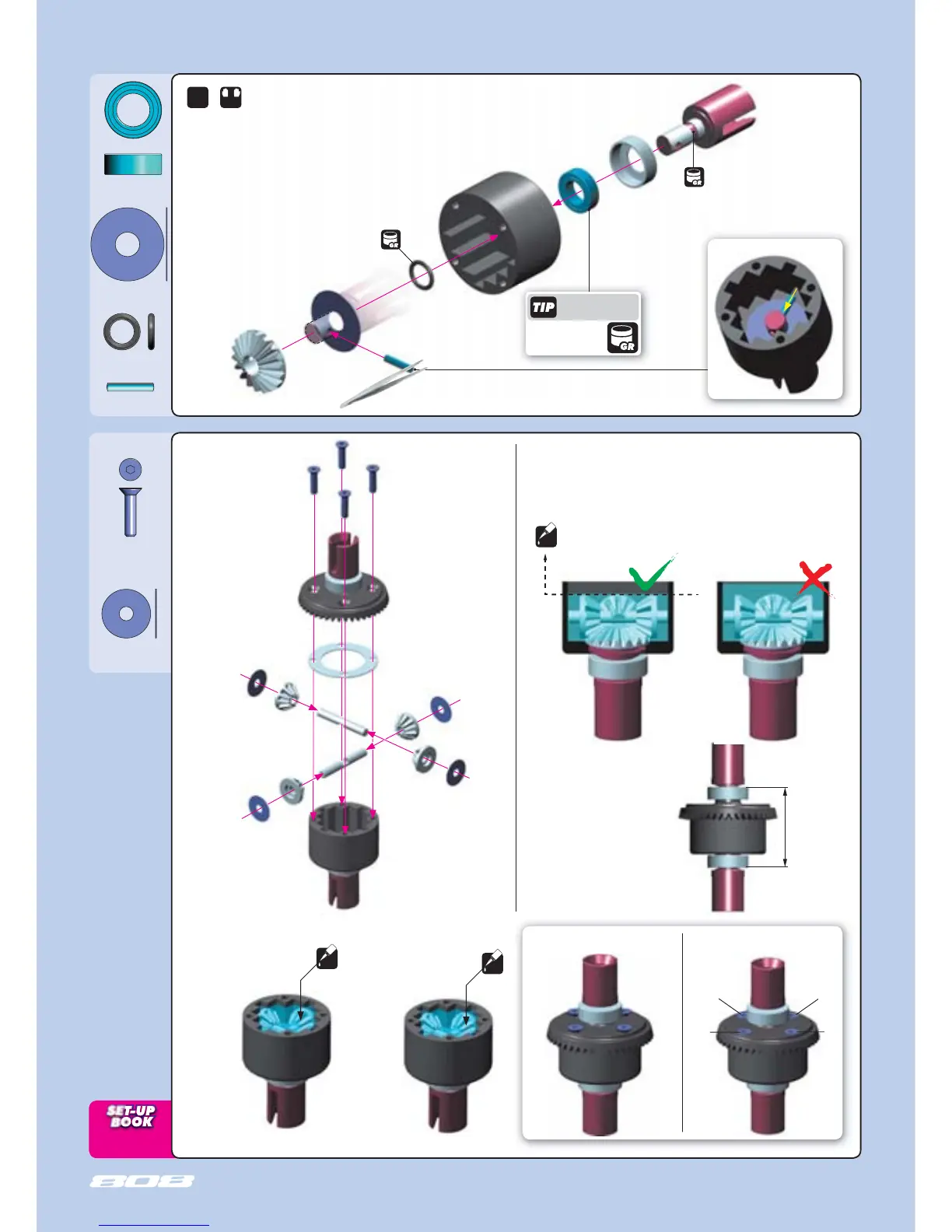

FRONT & REAR DIFFERENTIALS
964030
S 3.5x12x0.2
903312
SFH M3x12
2x
F=R
OIL
Tighten the screws equally Finish tightening in this order
OIL
➊
➋
➌
➍
➎
➏
➊
➋
➌
➍
➐
940814
BB 8x14x4
964060
S 6x18x0.2
971060
O 6x1.5
980212
P 2x11.6
STEP DETAIL
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
➏
Use these silicone oils included in the kit for initial settings:
Front diff:
5000cSt / Rear diff: 2000cSt
Rear diff:
Silicone oil 2000cSt
Fill just above the
satellite gears.
Front diff:
Silicone oil 5000cSt
Fill just above the
satellite gears.
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
