Xray XB808 User Manual

6

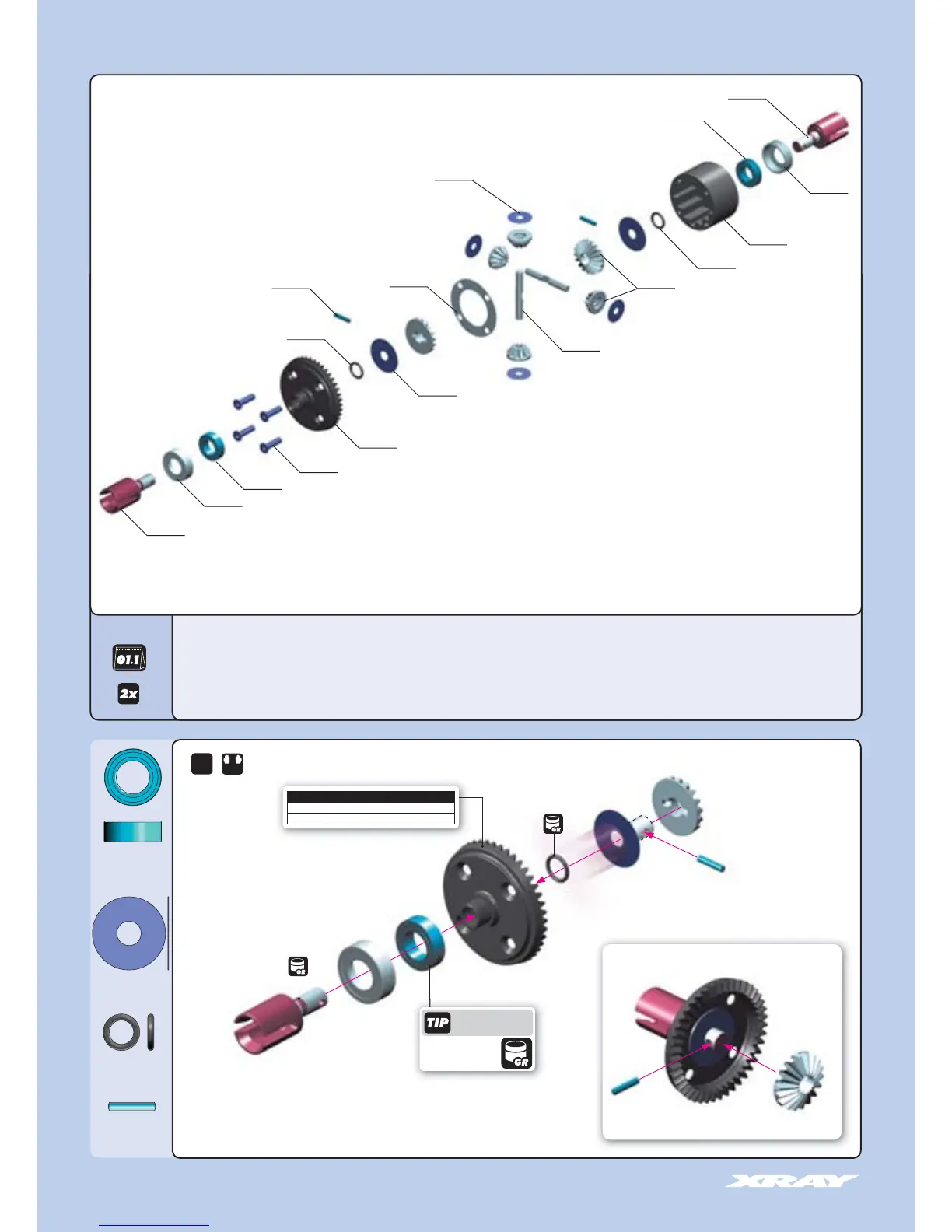

1. FRONT & REAR DIFFERENTIALS
2x
F=R
STEP DETAIL
➊
➋
➌
➍
➎
➏
➏➐
➐
35 2070 XB808 COMPOSITE BEARING HUB FOR DIFF (4)
35 5001 XB808 FRONT/REAR DIFFERENTIAL - SET
35 5020 DIFFERENTIAL CASE
35 5030 STEEL DIFF BEVEL & SATELLITE GEARS (2+4)
35 5043 FRONT/REAR DIFF LARGE BEVEL GEAR 43T - HUDY STEEL
35 5062 XB808 FRONT/REAR DIFF OUTDRIVE ADAPTER (2) HUDY SPRING STEEL™
35 5080 DIFF PIN (2)
35 5090 DIFF GASKET (4)
90 3312 HEX SCREW SFH M3x12 (10)
94 0814 HIGH-SPEED BALL-BEARING 8x14x4 BLUE COVERED (2)
96 4030 WASHER S 3.5x12x0.2 (10)
96 4060 WASHER S 6x18x0.2 (10)
97 1060 SILICONE O-RING 6x1.5 (10)
98 0212 PIN 2x11.6 (10)
BAGS
940814
352070
903312
355043
964060
355030
971060
355020
940814
355090
964030
980212
971060
355080
355062
352070
355062
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
940814
BB 8x14x4
964060
S 6x18x0.2
971060
O 6x1.5
980212
P 2x11.6
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
FRONT/REAR DIFF LARGE BEVEL GEAR
#355041
DIFF LARGE BEVEL GEAR 41T (OPTION)
#355043
DIFF LARGE BEVEL GEAR 43T (STANDARD)
➏
➐
