Xray XB808 User Manual

28
902312
SH M3x12

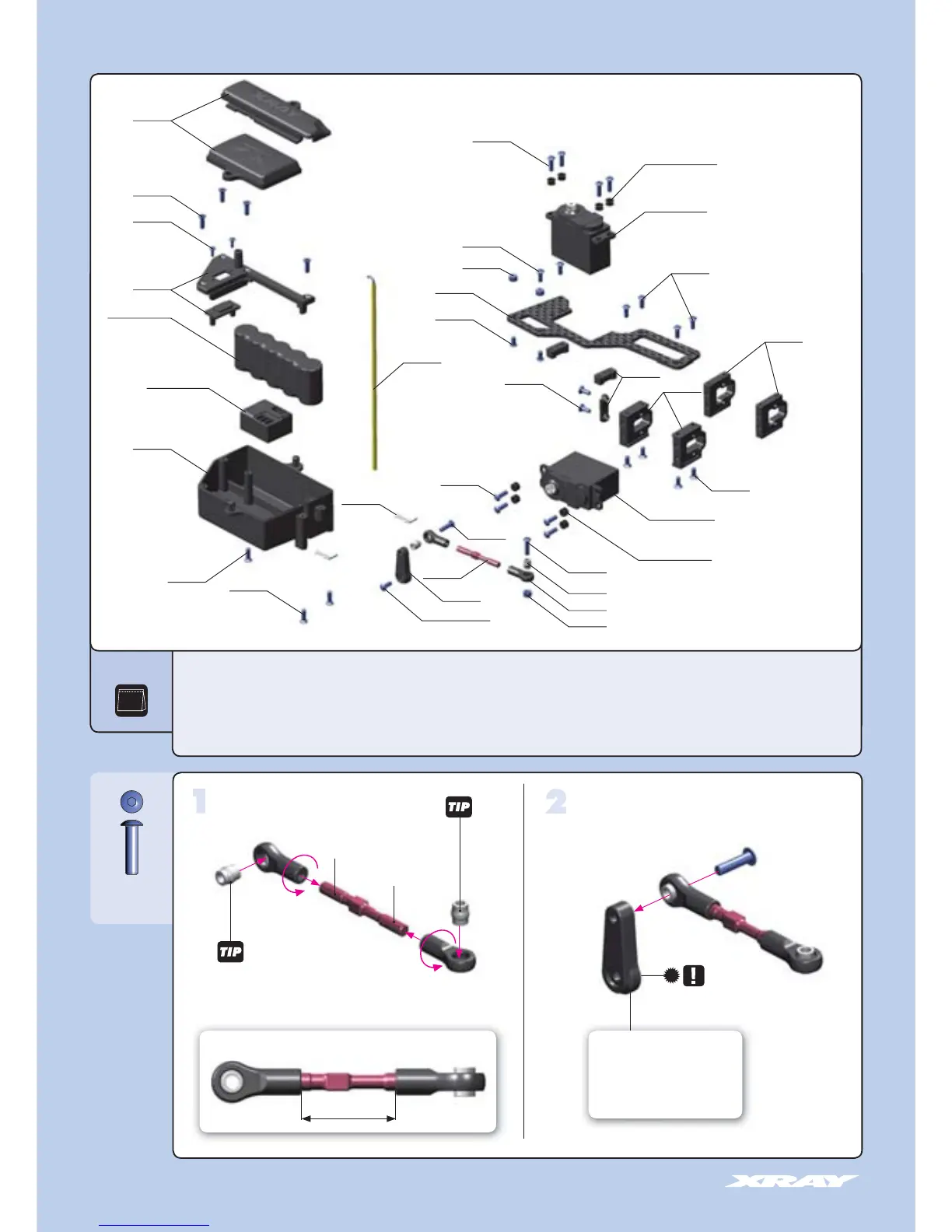

10. RADIO CASE
10
BAG
30 2615 ADJ. TURNBUCKLE M3 L/R 30 MM - SPRING STEEL (2)
30 6310 ANTENNA TUBE (2)
30 9400 BODY CLIP (8)
35 2460 PIVOT BALL 5.8 (10)
35 2670 SERVO BALL JOINT 5.8MM (4)
35 6001 XB808 RADIO CASE SET
35 6050 BATTERY CABLE WITH SWITCH (OPTION)
35 6111 XB808 GRAPHITE RADIO PLATE
35 6120 STEERING SERVO MOUNT - SET
35 6200 BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
38 9135 CONNECTING CABLE RECEIVER/BATT. PACK (OPTION)
90 2308 HEX SCREW SH M3x8 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 2312 HEX SCREW SH M3x12 (10)
90 3308 HEX SCREW SFH M3x8 (10)
90 3310 HEX SCREW SFH M3x10 (10)
90 7206 SCREW PHILLIPS 2x6 (10)
96 0030 NUT M3 (10)
LEFT
THREAD
RIGHT
THREAD
Ball-joints must be 90° to each other
USE APPROPRIATE SERVO ARM:
K - KO Propo, JR, Sanwa, Multiplex
H - Hitec
F - Futaba
Receiver battery
(not included)
306310
Servo Grommet
(not included)
356001
Throttle Servo
(not included)
356120
903308
Steering Servo
(not included)
Servo Grommet
(not included)
Servo Screw
(not included)
Follow the TECH TIP on page
5 to install the pivot balls
Receiver
(not included)
20.5 mm
907206
903308
356001
356001
903310
903310
356200
960030
352670
352460
902312
309400
902310
902310
960030
902310
356111
902308
902308
NOTE
ORIENTATION
356120
356120
903308
902312
302615
Left threadRight thread
step
step
Follow the TECH TIP on page
5 to install the pivot balls
