10

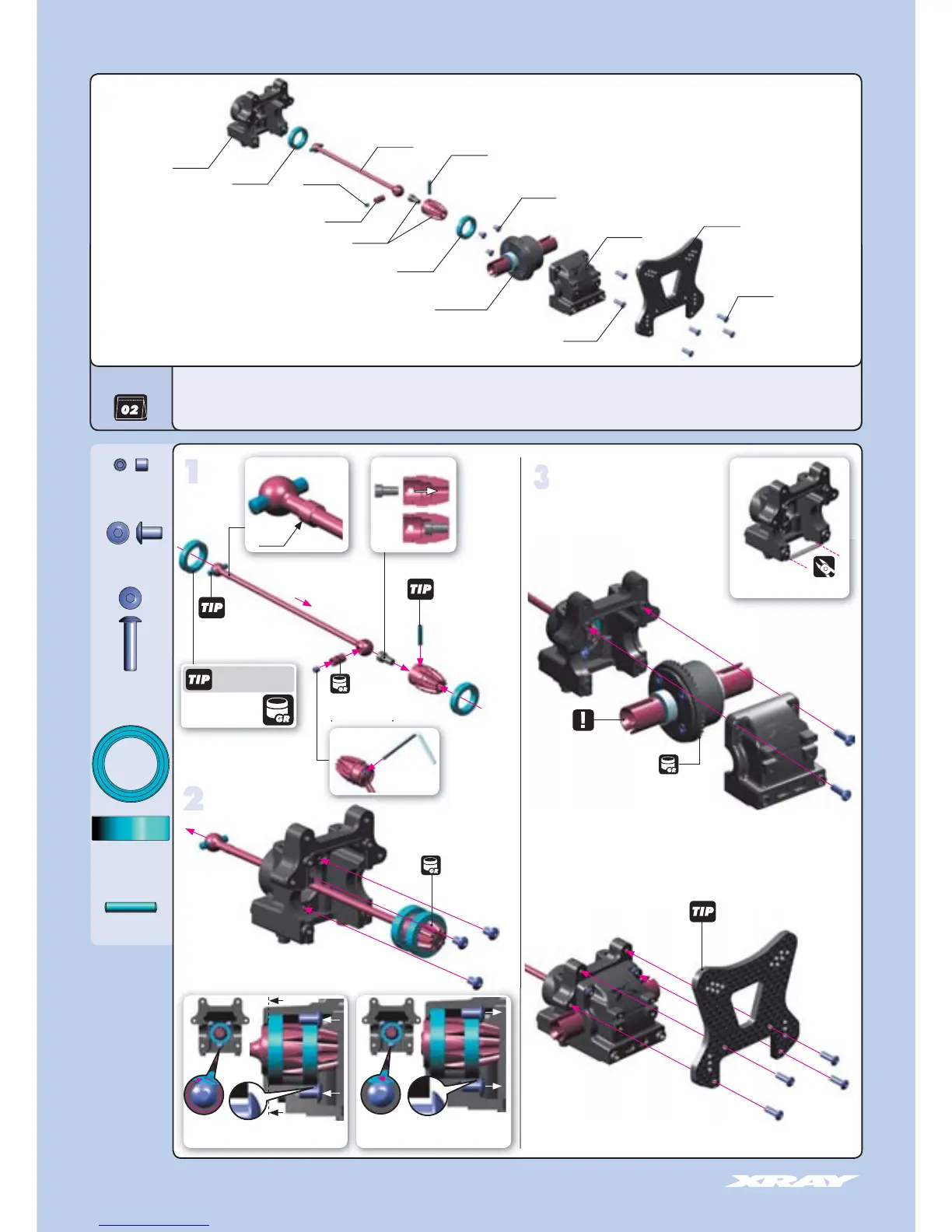

2. FRONT TRANSMISSION
Cut on both front
and rear bulkhead blocks
941319
BB 13x19x4
902305
SH 3x5
902312
SH 3x12
980263
P 2.5x13
Follow the TECH TIP on page
5 for drive shaft pin servicing
Follow the TECH TIP on page
5 to protect graphite parts
3x5
3x12
Replace this pin
when wear is
present
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
FRONT DIFF 5000 cSt
Graphite Grease
(HUDY #106210)
901303
SB 3x3
3x12
Loosen all 3 screws VERY SLIGHTLY
(approximately 1/12 of a turn). Pinion must turn freely.
➊
➋
➊
➋
DETAIL
step
step
step
DETAIL
➊
➋
➌
➍
➏
FRONT
DETAIL
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
step
4
STEP DETAIL
➊
➐
902312
352092
352002
355001
FRONT DIFF
980263
355238
355421
941319
352002
355111
941319
902305
902312
35 2002 XB808 DIFF BULKHEAD BLOCK SET FRONT/REAR
35 2092 XB808 GRAPHITE FRONT SHOCK TOWER - CNC MACHINED 4 MM
35 5111 XB808 PINION GEAR 10T
35 5238 XB808 CVD DRIVE SHAFT COUPLING HUDY SPRING STEEL™
35 5421 XB808 FRONT CENTRAL CVD DRIVE SHAFT - HUDY SPRING STEEL™
90 1303 HEX SCREW SB M3x3 (10)
90 2305 HEX SCREW SH M3x5 (10)
90 2312 HEX SCREW SH M3x12 (10)
94 1319 HIGH-SPEED BALL-BEARING 13x19x4 RUBBER SEALED (2)
98 0263 PIN 2.5x13 (10)
BAG
Tighten screws fully. Make sure the
bearing seats properly in the bulkhead.
➎
STEP DETAIL
➎
901303
Use 1.5mm
Allen wrench
DETAIL
