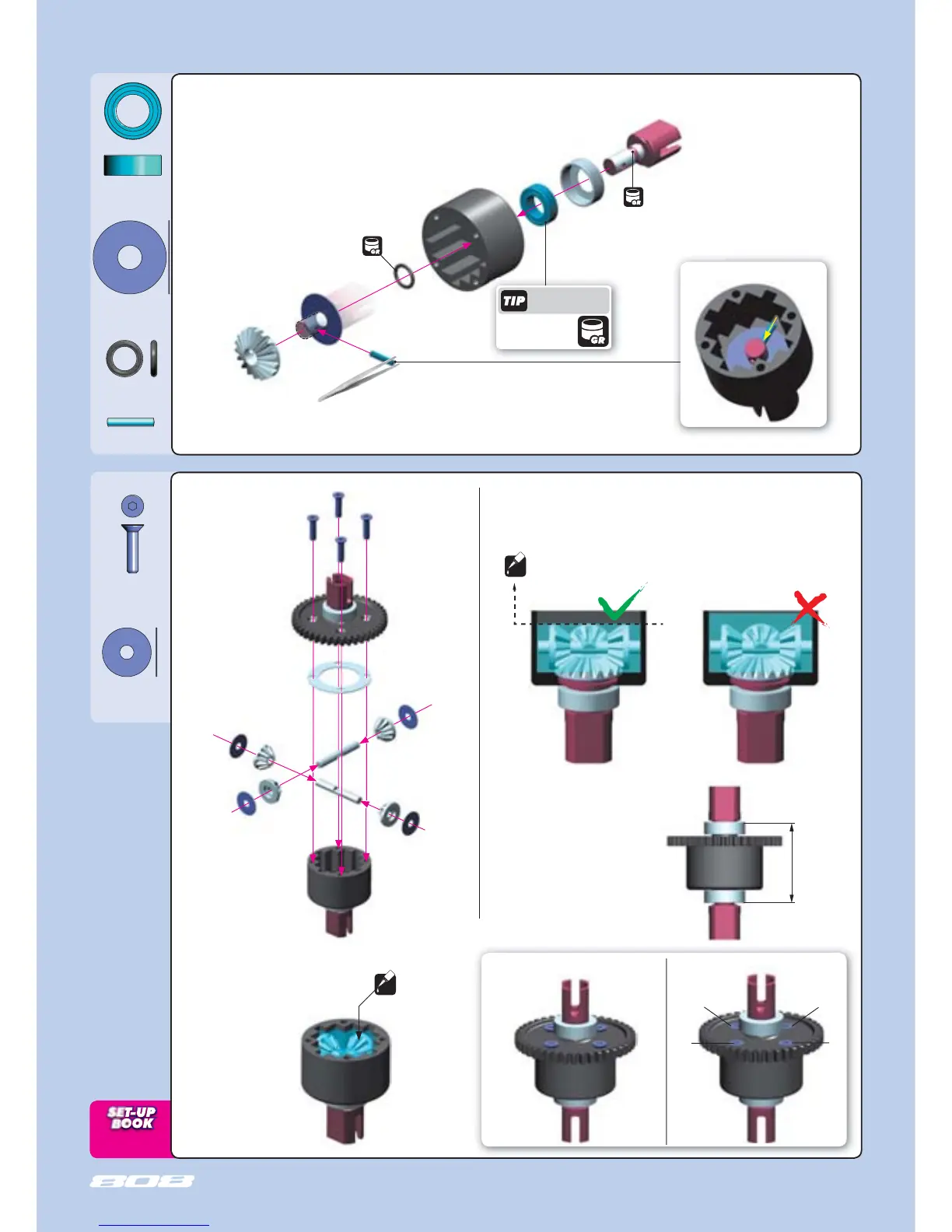

GEAR DIFF
After assembly the differential should have
a length of 32.6~32.7 mm measured from
the ends of the installed ball-bearings. If
differential is longer, retighten the 4 screws
holding the spur gear.
32.6~32.7 mm
➊
➋
➍
➎
➏
➌
➐
940814
BB 8x14x4
971060
O 6x1.5
964060
S 6x18x0.2
Center diff:
Silicone oil 7000cSt
Fill just above the
satellite gears.
980212
P 2x11.6
VERY IMPORTANT!
Fill the differentials with oil just
above the satellite gears.
OIL
INCORRECT
CORRECT
CENTER DIFFERENTIAL
964030
S 3.5x12x0.2
903312
SFH M3x12
Tighten the screws equally Finish tightening in this order
OIL
➊
➋
➌
➍
STEP DETAIL
➏
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
Use the following silicone oil included in the kit for initial setting:
Center diff:
7000cSt
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
