Xray XB808 User Manual

16
KICK-UP
ROLL CENTER
909395
SS 3.5x45
909372
SS 3.5x22

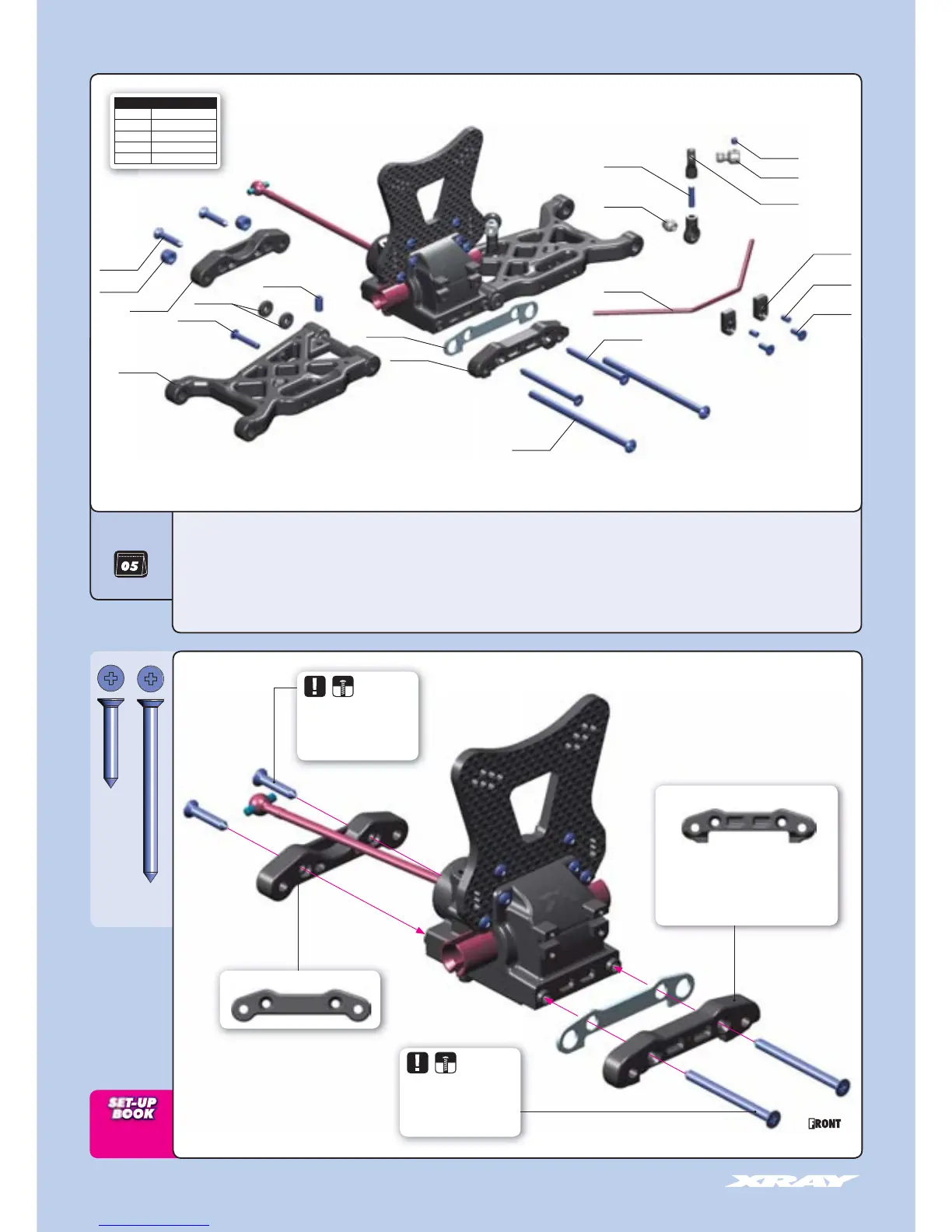

5. FRONT SUSPENSION
33 3450 ANTI-ROLL BAR BALL JOINT 5.8 MM (2)
35 2002 XB808 DIFF BULKHEAD BLOCK SET FRONT/REAR
35 2114 XB808 COMPOSITE FRONT LOWER SUSPENSION ARM
35 2302 XB808 COMPOSITE FRONT LOWER SUSP. HOLDERS SET
35 2317 XB808 STEEL SUSP. HOLDER - FRONT - LASER CUT
35 2460 PIVOT BALL 5.8 (10)
35 2470 BALL JOINT 5.8 (8)
35 2484 XB808 FRONT ANTI-ROLL BAR 2.4MM
35 3371 XB808 SET OF COMPOSITE LOWER ARM SHIMS
35 7213 XB808 LOWER INNER PIVOT PIN SCREW 4MM (2)
90 1303 HEX SCREW SB M3x3 (10)
90 1305 HEX SCREW SB M3x5 (10)
90 1312 HEX SCREW SB M3x12 (10)
90 1408 HEX SCREW SB M4x8 (10)
90 2318 HEX SCREW SH M3x18 (10)
90 3308 HEX SCREW SFH M3x8 (10))
90 9372 SCREW PHILLIPS SS 3.5x22 (10)
90 9395 SCREW PHILLIPS SS 3.5x45 (10)
96 0040 NUT M4 (10)
BAG
909372
960040
902318
352114
903308
353371
901408
901303
333450
352470
901312
352460
901305
352002
352484
352302
357213
909395
352302
3.5x22
3.5x45
F
FRONT VIEW
The composite suspension holders feature
preset optimum geometry 0° kick-up which
with the combination of the 10° angled
chassis creates total 10° kick-up. Use optional
adjustable suspension holders for further
geometry adjustment.
352317
FRONT ANTI-ROLL BARS
#352480 2.0mm (OPTION)
#352482 2.2mm (OPTION)
#352484 2.4mm (STANDARD )
#352486 2.6mm (OPTION)
#352488 2.8mm (OPTION)
REAR VIEW
F
Do not overtighten the screws.
Overtightening may result in
composite suspension holder
deformation.
Do not overtighten the screws.
Overtightening may result in
composite suspension holder
deformation.
