Xray XB808 User Manual

17
DOWNSTOP
WHEELBASE
ANTI-ROLL BAR

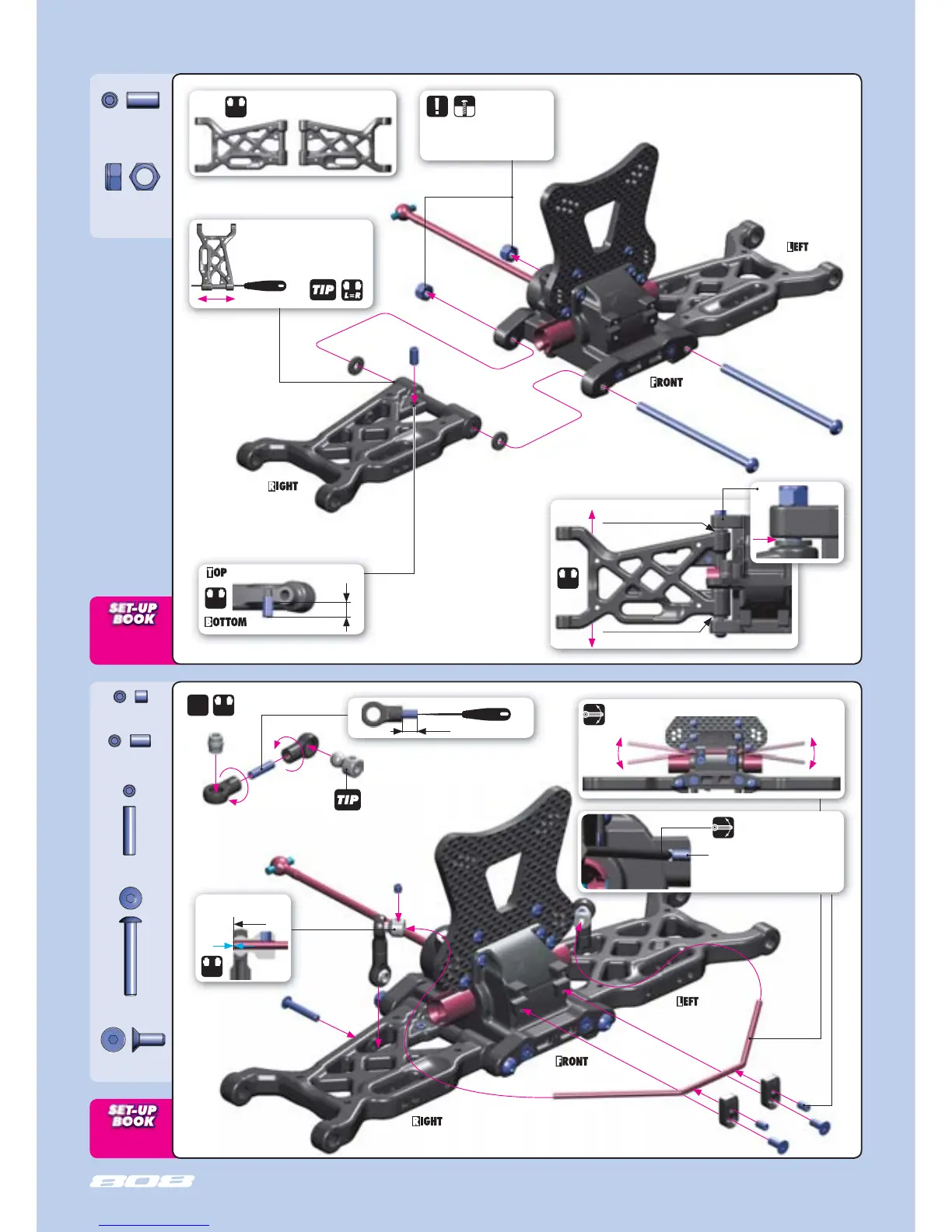

FRONT SUSPENSION
901408
SB M4x8
901312
SB M3x12
901303
SB M3x3
902318
SH M3x18
903308
SFH M3x8
901305
SB M3x5
960040
N M4
➊
➋
➌
➍
3x5
3x8
3x3
3x18
L=R
L=R
2x
Loosen the 3x5 setscrew if the anti-
roll bar does not turn freely
1.5mm
6mm
Follow the TECH TIP on page
5 to install the pivot balls
F
FRONT ARM
L=R
Step check for free movement
➊
STEP DETAIL
➍
(HUDY #107634)
ARM REAMER
L=R
0mm
2mm
3x12
Step
➊
If the suspension arms do not
move freely, use a HUDY Arm
Reamer resize the holes.
Do not overtighten the self-locking
nut. Overtightening may result in
suspension binding.
2mm
4x8
Downstop screw
Ensure there is a little play
DETAIL
Ensure there is a little play
L=R
2mm
DOWNSTOP SETTING
