19

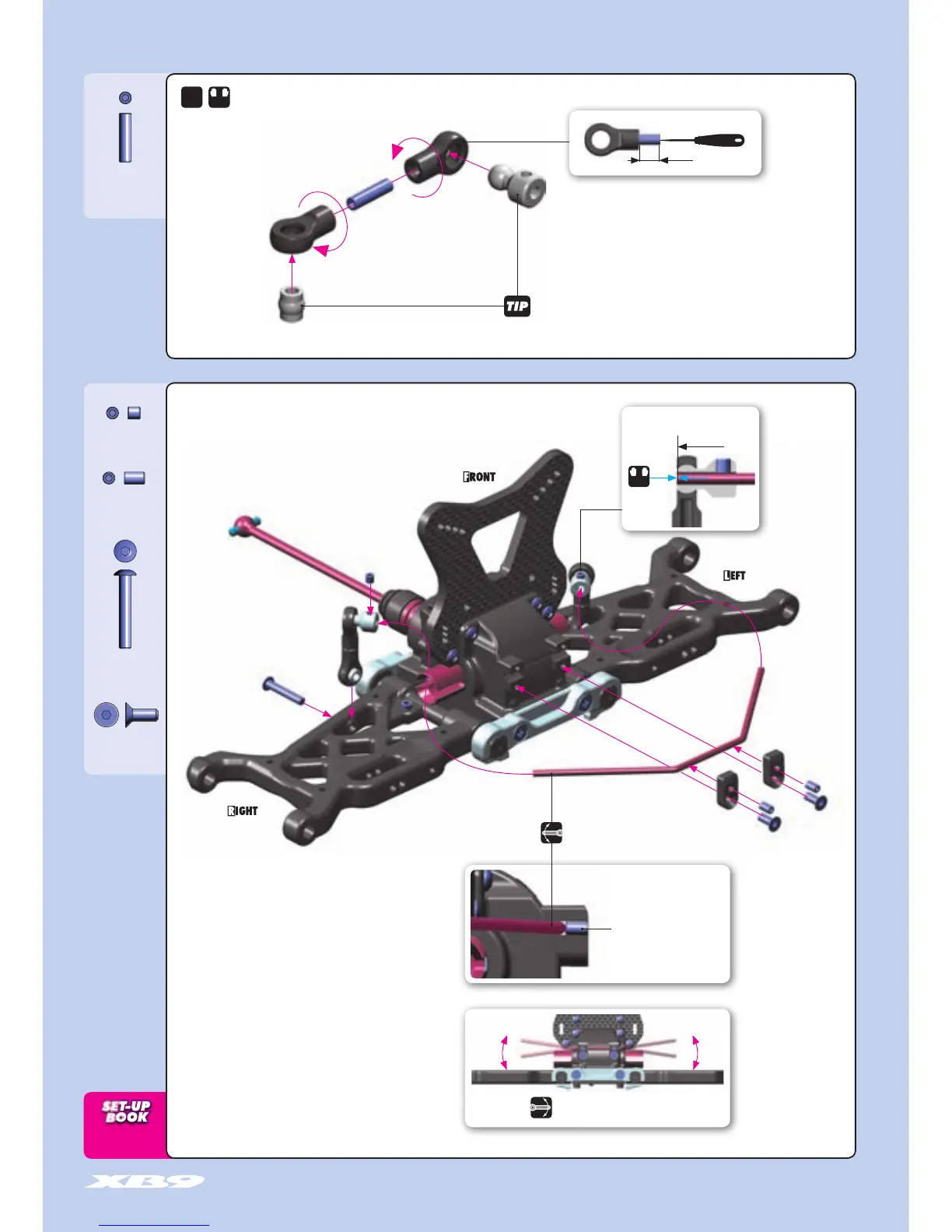

FRONT
SUSPENSION
901303
SB M3x3
901305
SB M3x5
901312
SB M3x12
902318
SH M3x18
903308
SFH M3x8
L=R
2x
1.5mm
6mm
Follow the TECH TIP on page 5
to install the pivot balls
Step check for free movement
➊
DETAIL
DETAIL
Loosen the 3x5 setscrew if
the anti-roll bar does not
turn freely
Step
➊
➊
➋
➌
➍
3x5
3x8
3x3
L=R
0mm
STEP
DETAIL
➍
3x18
18
20
Table of Contents
Safety Precautions
2
Symbols Used
4
Tools Required
4
Equipment Required
4
Graphite Parts
5
Very Important
7
Center Differential
8
Front Transmission
10
Rear Transmission
11
Rear Suspension
12
Front Suspension
17
Front & Rear Assembly
22
Radio Case
31
Shock Absorbers
33
Final Assembly
36
Throttle Linkage Adjustment
39
Troubleshooting Guide
42
