902414
SH M4x14
#106220 - Standard
#106221 - Extra
#106222 - Premium
➊
➋
➋
➊
➊
980317
P 3x17
941319
BB 13x19x4
901504
SB M5x4
980263
P 2.5x13
940814
BB 8x14x4

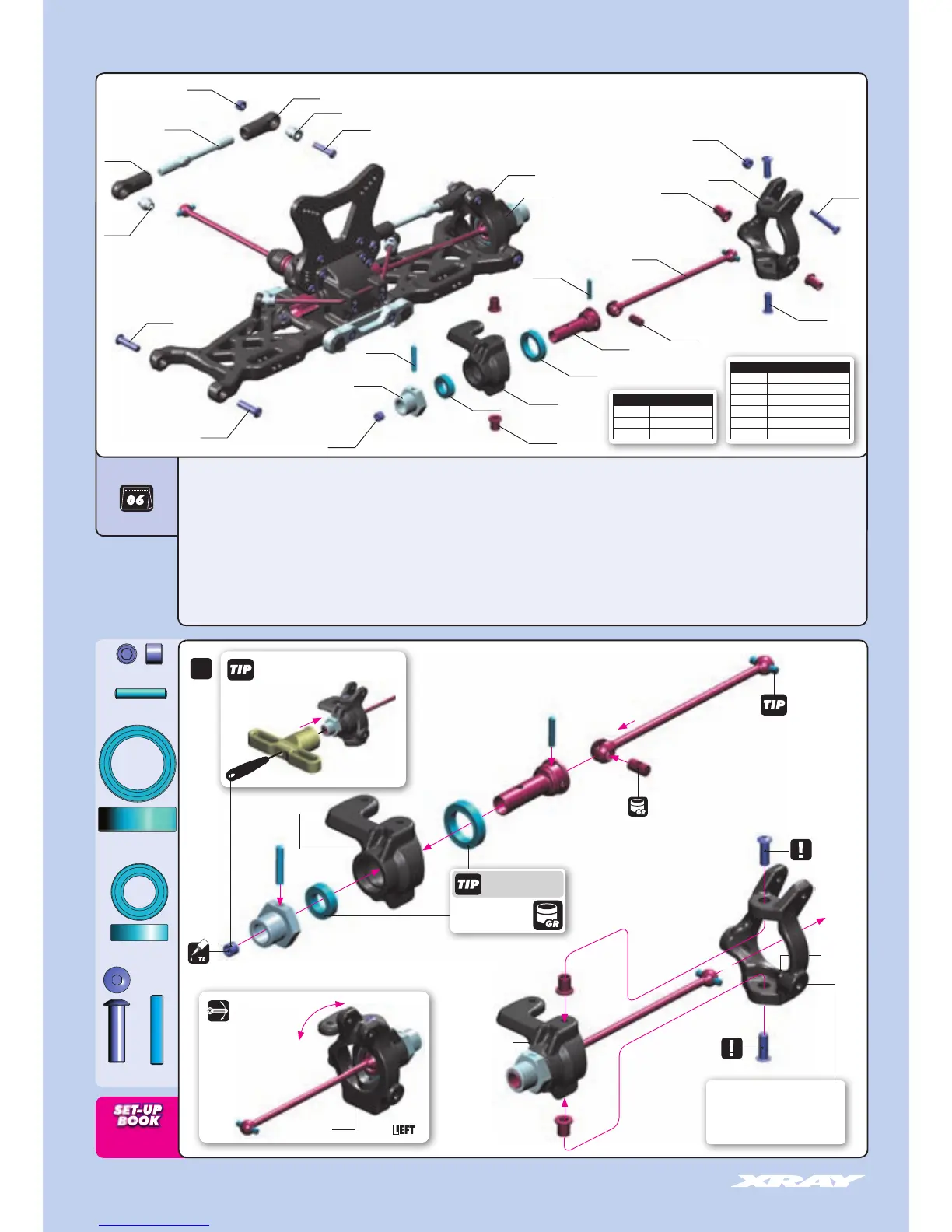

6. FRONT SUSPENSION
35 2151 FRONT UPPER ARM BALL JOINT (2)
35 2181 STEEL ARM BUSHING (2)
35 2212 COMPOSITE CASTER BLOCK 10° RIGHT
35 2222 COMPOSITE CASTER BLOCK 10° LEFT
35 2252 COMPOSITE STEERING BLOCK RIGHT
35 2262 COMPOSITE STEERING BLOCK LEFT
35 2299 STEEL STEERING BUSHING (2)
35 2622 ALU ADJ. TURNBUCKLE M5 L/R 58 MM - SWISS 7075 T6 (2)
35 3160 MOUNTING BALL 6.8 (4)
35 3170 PIVOT BALL 6.8 (4)
35 5211 CVD DRIVE AXLE - HUDY SPRING STEEL™
35 5221 CVD UNIVERSAL DRIVE SHAFT - HUDY SPRING STEEL™
35 5237 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
35 5250 ALU WHEEL AXLE - HARD COATED (2)
90 1504 HEX SCREW SB M5x4 (10)
90 2318 HEX SCREW SH M3x18 (10)
90 2325 HEX SCREW SH M3x25 (10)
90 2414 HEX SCREW SH M4x14 (10)
90 2418 HEX SCREW SH M4x18 (10)
94 0814 HIGH-SPEED BALL-BEARING 8x14x4 BLUE COVERED (2)
94 1319 HIGH-SPEED BALL-BEARING 13x19x4 BLUE COVERED (2)
96 0030 NUT M3 (10)
98 0263 PIN 2.5x13 (10)
98 0317 PIN 3x17 (10)
BAG
353170
352622
902318
2x
➎
➍
➏
➐
➑
Graphite Grease
(HUDY #106210)
Marked “R“
353160
352151
960030
902418
901504
902418
960030
352181
355221
980263
902414
355237
355211
941319
352252
352299
940814
980317
355250
352212
Marked “R“
Marked “R“
➌
352151
902325
352222
352262
3x17
2.5x13
8x14x4
13x19x4
To tighten the setscrew you can also
use the HUDY 17mm Wheel Nut Tool
#107570
Follow the TECH TIP on page 5
for drive shaft pin servicing
DO NOT
OVERTIGHTEN
➌
➌
DO NOT
OVERTIGHTEN
The standard caster block features
10° caster angle and together with
the 10° angle of the chassis creates
a total 20° caster.
Marked “L“
ASSEMBLED VIEW
Check for free
movement
2.5mm
To Next Page
