Xray XB9 User Manual

21


902418
SH M4x18
902325
SH M3x25
902318
SFH M3x18
960030
N M3
➊
➋
➌
➌

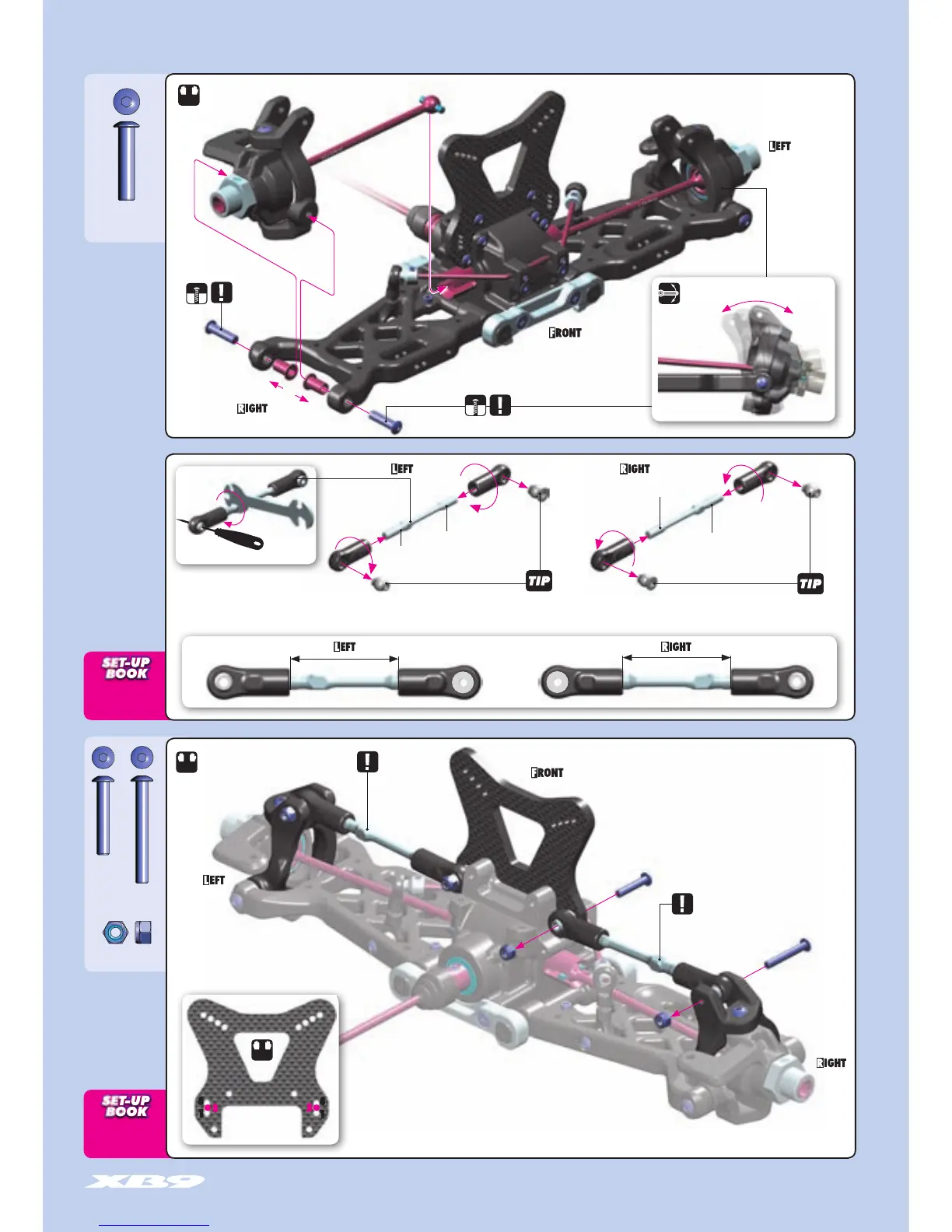

FRONT SUSPENSION
L=R
L=R
INITIAL POSITION
L=R
DO NOT
OVERTIGHTEN
DO NOT OVERTIGHTEN
RIGHT
THREAD
LEFT
THREAD
DETAIL
Use tools to tighten as shown
NOTE ORIENTATION
Adjustment block towards outside
3x18
3x25
NOTE ORIENTATION
Left threadRight thread
Left thread
Right thread
Adjustment block towards outside
Follow the TECH TIP on page 5
to install the pivot balls
RIGHT
THREAD
LEFT
THREAD



RIGHT ASSEMBLY
LEFT ASSEMBLY
Check for free movement
Follow the TECH TIP on page 5
to install the pivot balls
37.3 mm
37.3 mm



