SERVO SAVER
903308
SFH M3x8
940610
BB 6x10x3
Follow the TECH TIP on page 5
to protect graphite parts
971120
O 12x1.6

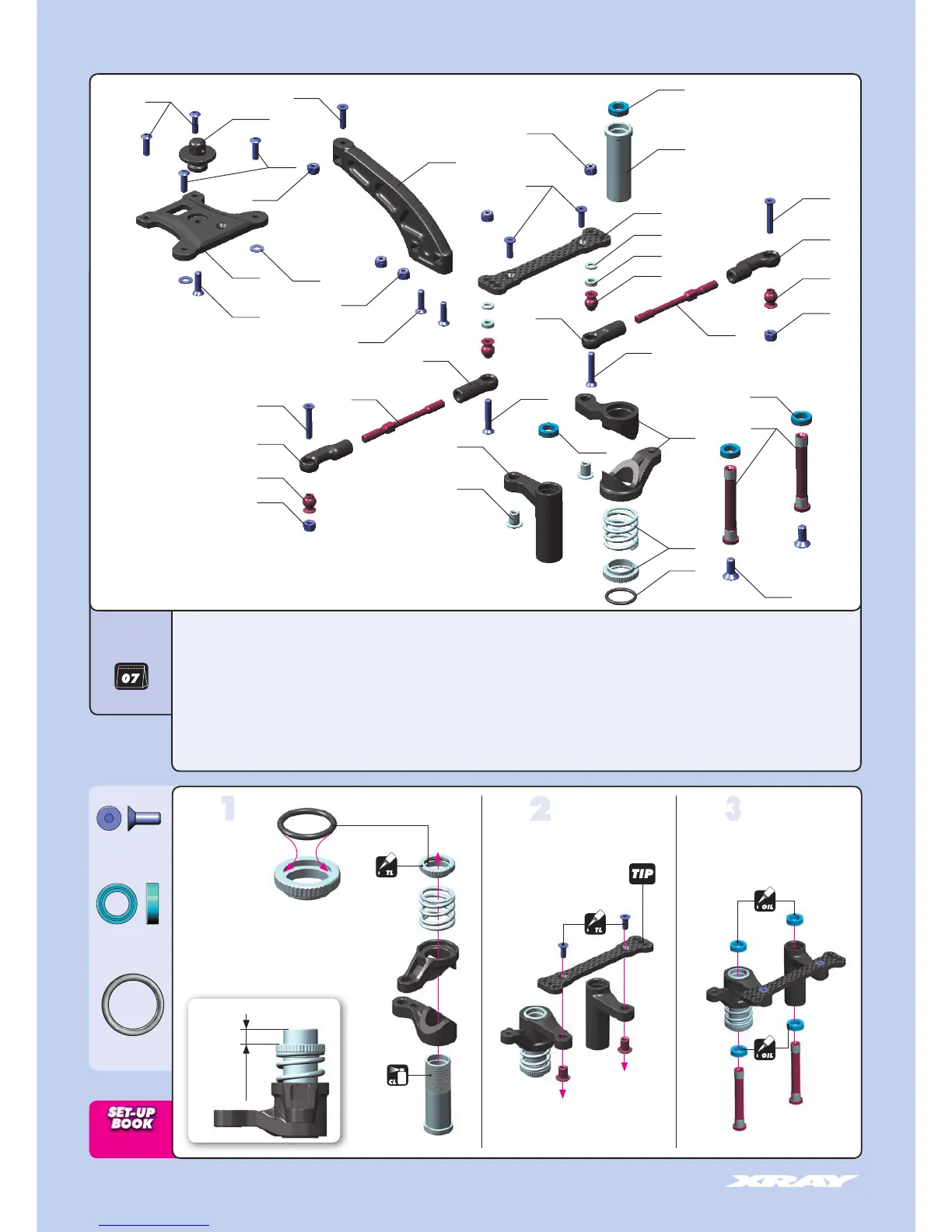

7. STEERING
30 3122 ALU SHIM 3x6x1.0MM (10)
30 3123 ALU SHIM 3x6x2.0MM (10)
35 1301 BODY POSTS
35 1349 COMPOSITE UPPER PLATE
35 2088 XB9 COMPOSITE FRONT BRACE
35 2502 XB9 SERVO SAVER COMPLETE SET
35 2512 XB9 COMPOSITE SERVO SAVER
35 2577 XB9 GRAPHITE STEERING PLATE
35 2576 STEERING PLATE BUSHING (2)
35 2611 ADJ. TURNBUCKLE M4 L/R 51 MM - HUDY SPRING STEEL (2)
35 2652 BALL STUD 6.8MM (4)
35 2664 COMPOSITE STEERING BALL JOINT 6.8MM (2)
35 2665 COMPOSITE RELIEF STEERING BALL JOINT 6.8MM (2)
90 2308 HEX SCREW SH M3x8 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 3308 HEX SCREW SFH M3x8 (10)
90 3310 HEX SCREW SFH M3x10 (10)
90 3312 HEX SCREW SFH M3x12 (10)
90 3314 HEX SCREW SFH M3x14 (10)
90 3320 HEX SCREW SFH M3x20 (10)
90 3410 HEX SCREW SFH M4x10 (10)
94 0610 HIGH-SPEED BALL-BEARING 6x10x3 BLUE COVERED (2)
96 0030 NUT M3 (10)
96 1032 WASHER S 3.2 (10)
97 1120 SILICONE O-RING 12x1.6 (10)
BAG
6~7mm
INITIAL PRELOAD SETTING
CLEANER
For servicing use
Bearing Oil
(HUDY #106230)
940610
902310
903314
960030
903308
352502
903320
352665
352652
960030
352577
303122
352652
352088
903320
352512
902308
903310
960030
960030
903312
903320
352665
352652
960030
352611
352611
352512
352576
352502
940610
940610
352502
903410
351301
351349
352664
903320
971120
352664
303123
step
step
step
961032
