Xray XB9 User Manual

26
902316
SH M3x16

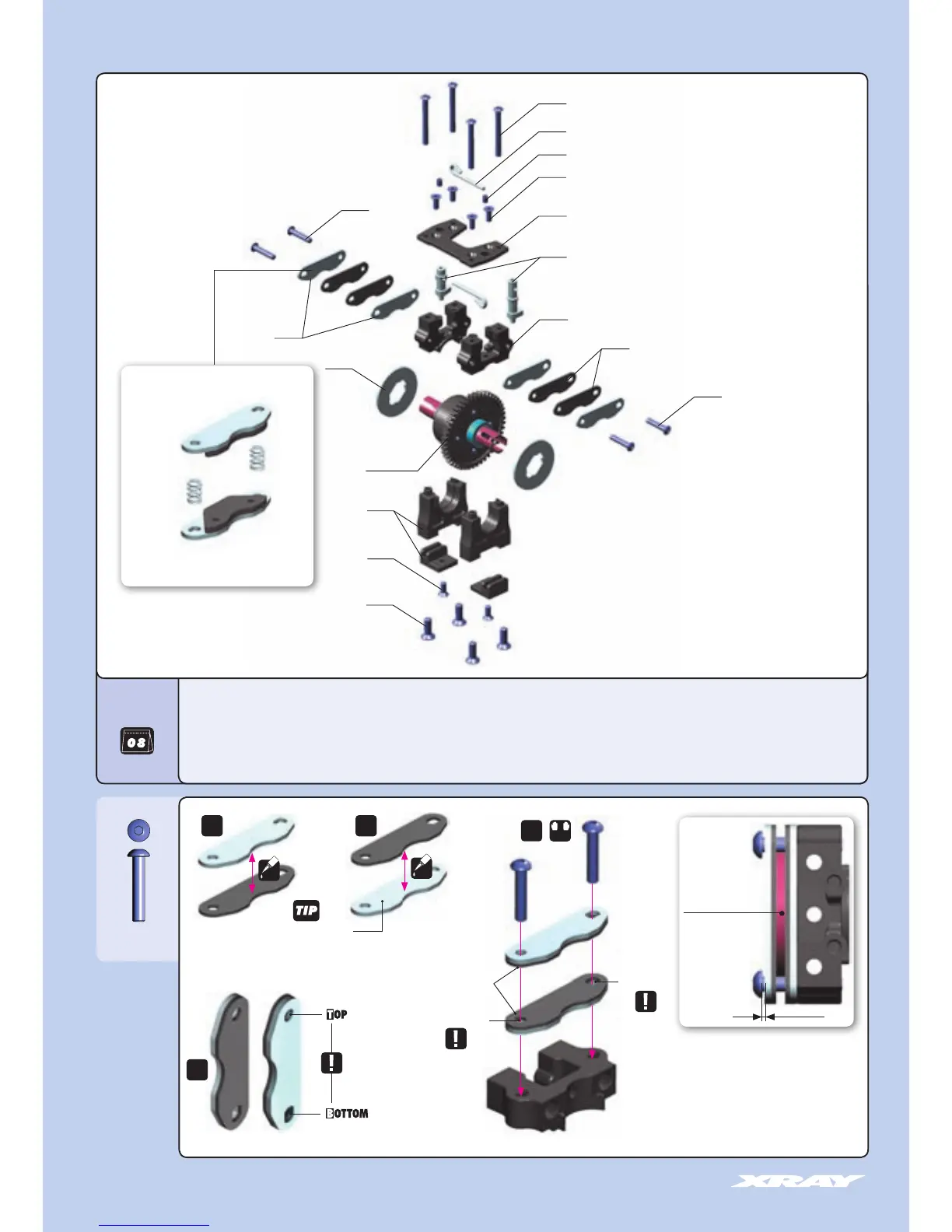

8. CENTER DIFF & BRAKE
2x
CA
Fibre pad
(Ferodo™)
BAG
Steel pad
F=R
35 4010 CENTER DIFF MOUNTING PLATE - SET
35 4041 ALU BRAKE CAM POST & ROD (2+2) HARD COATED
35 4058 COMPOSITE CENTER DIFF MOUNTING PLATE
35 4110 VENTILATED BRAKE DISK - LASER CUT - PRECISION-GROUND
35 4121 STEEL BRAKE PAD - LASER CUT (4)
35 4130 BRAKE PAD FERODO (4)
90 1304 HEX SCREW SB M3x4 (10)
90 2316 HEX SCREW SH M3x16 (10)
90 2330 HEX SCREW SH M3x30 (10)
90 3308 HEX SCREW SFH M3x8 (10)
90 3412 HEX SCREW SFH M4x12 (10)
Fibre pads together
Temporarily insert
brake disk between
pads to set correct gap
0.5 mm
354121
355012
CENTER DIFF
354110
354130
354041
354058
903308
901304
354041
902330
Roughen steel plates with
sandpaper before gluing
fibre pads
ROUND HOLE
OVAL HOLE
NOTE
ORIENTATION
NOTE
ORIENTATION
354010
902316
354010
903412
902316
CA
Fibre pad
(Ferodo™)
Steel pad
NOTE
ORIENTATION
ROUND HOLE
OVAL HOLE
2x
DETAIL
2x 2x
903308
For less wear of break pads, optional brake pads
with springs can be used.
OPTIONAL
GLUED BRAKE PADS SET - ULTRA EFFICIENT(4)
#354131
