IMPORTANT:
• When the Sleep mode is active (by default after two minutes of inactivity of the instrument) press
any key to reactivate the brightness of the display.
• Only at this point do the keys regain their function.
• Inputs / Outputs connections
Use original accessories guaranteed by the manufacturer only.
If necessary, contact your local distributor.
The BNC connectors are protected by a plastic cap.
Remove the cap before connecting the probes.
.

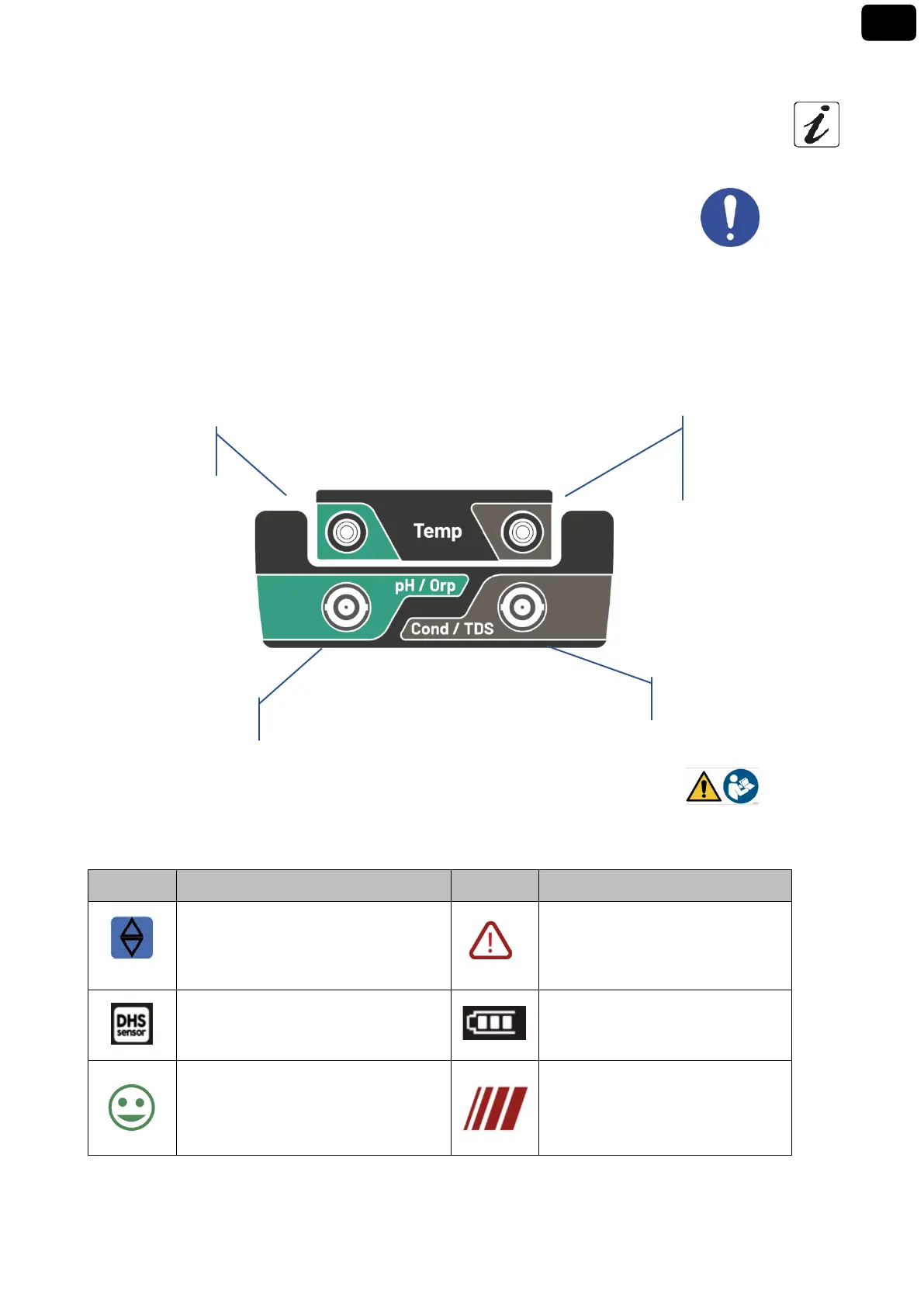

PC 7 Vio upper panel
READ THE MANUAL BEFORE PROCEEDING TO CONNECT PROBES OR PERIPHERALS
• Symbols and icons on the display
Symbol
Description
Symbol
Description
Press the directional keys to change the
parameter or value on the display
Error in measurement or calibration
DHS digital sensor active Battery charge indication
Measurement stability indicator
The bars scroll if the measurement
is not stable
RCA for pH Temperature
probe
BNC for pH/ORP electrodes
BNC for COND cell
RCA for Cond
Temperature probe
