Input / Backup Source Select

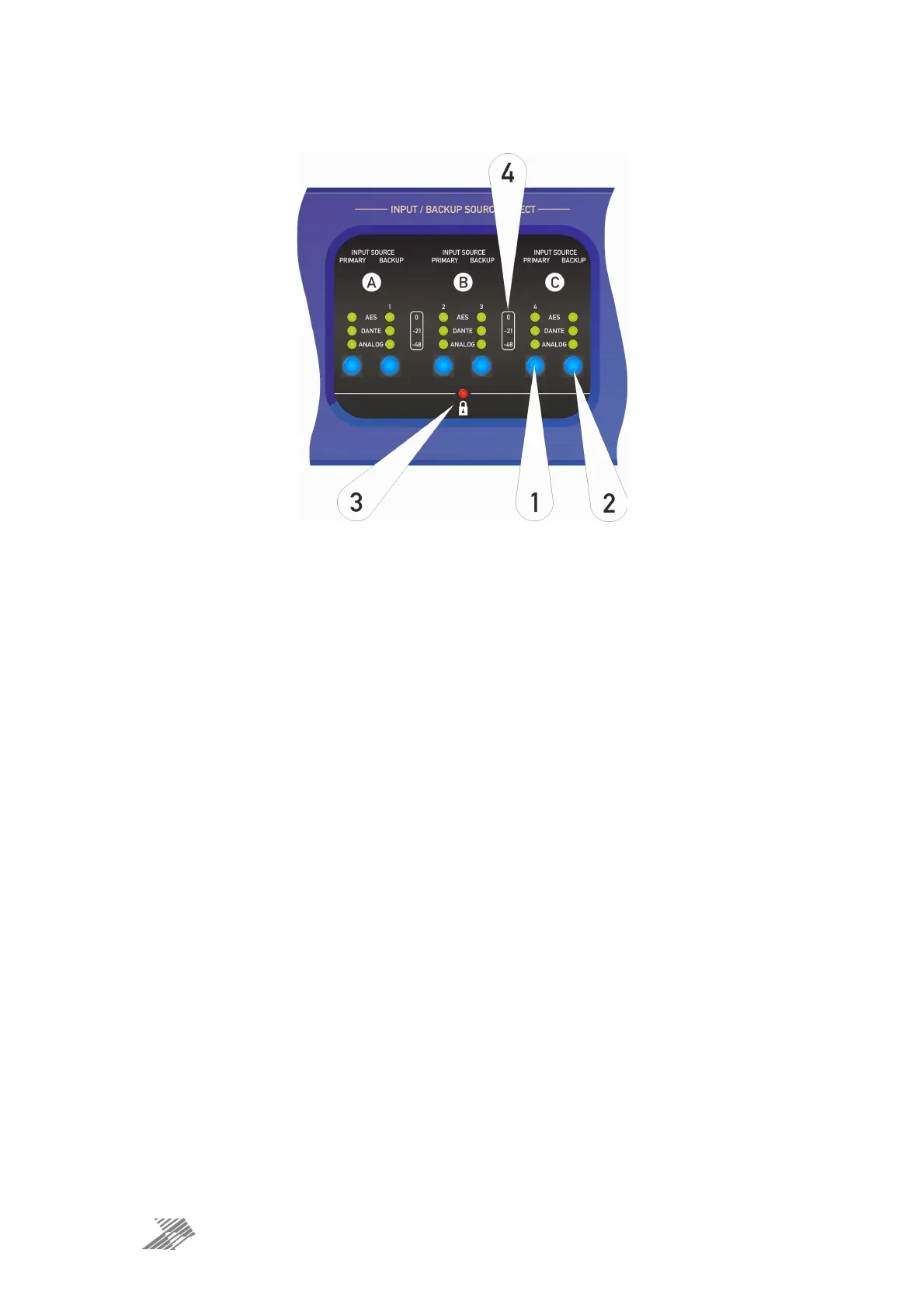

1: Primary Input Source Selections: Choose Analogue, AES or Dante for the main source for
each input set (A/B/C). Works in conjunction with 2.
2: Backup Source Selection: Choose a backup source which will be automatically routed to
the particular set’s outputs (pre-console selects) should the primary source fail. There is an
OFF state if redundancy/failover operation is not required on this set.
Not available if primary source is analogue.
3: Locked/Safe LED: If the padlock button is active, the corresponding locked/safe LEDs
show which sections cannot be adjusted. All Line Monitoring functions always remain
accessible, as do the Listen functions in the MIC / Line section.
4: Meter Outs Scaling: When the METER OUT button is enabled, the middle four columns of
LEDs show real time output levels for the main outputs as designated by these labels.
Pressing any source select button will cancel this and switch back to show input source
selections.
