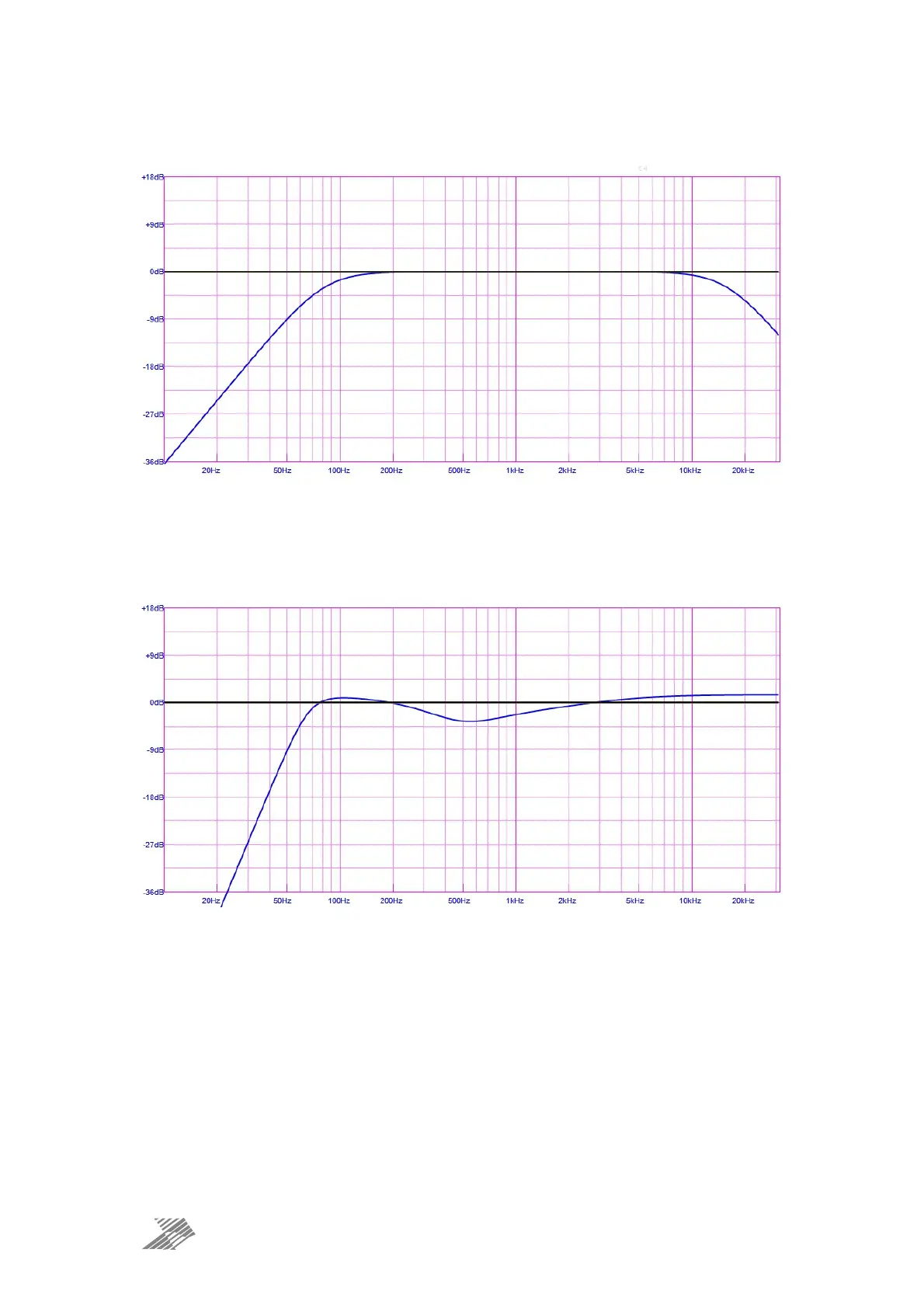

Appendix I: Microphone and Stereo Line Input DSP Filter Responses
Stereo Line Input:
12dB/Oct. Butterworth HPF @ 80.3Hz;
12dB/Oct. Butterworth LPF @ 16kHz
Microphone Input:
24dB/Oct. Butterworth HPF @ 66.2Hz;
500Hz PEQ -3.3dB, Q = 0.84;
1kHz PEQ 2.2dB, Q = 0.4;
Channel gain +1.5dB
