Inside Your MX36: Configurations and Routing

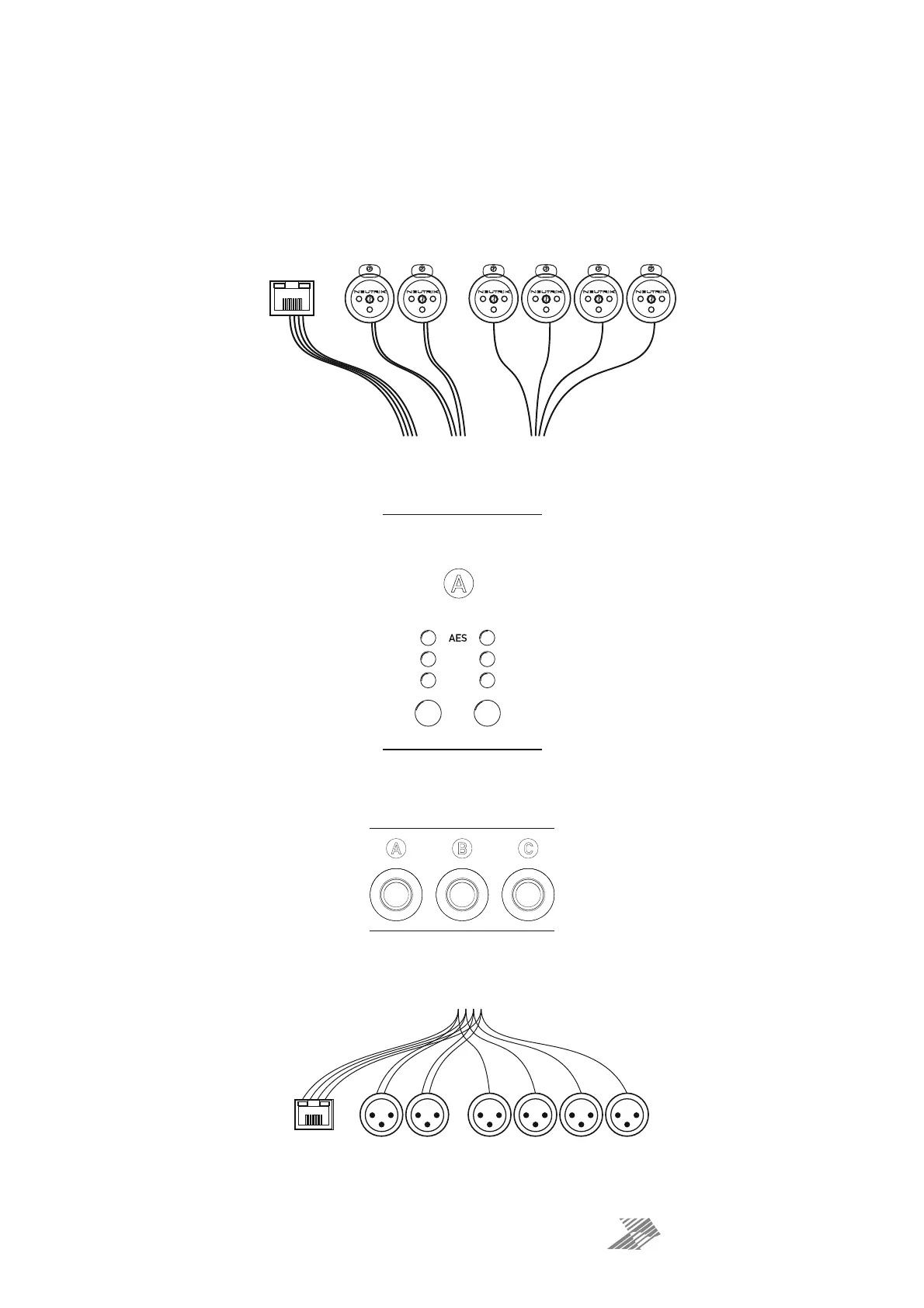

Overview of Audio Routing
The MX36 offers three sets four inputs, each of which can be analogue, AES or Dante audio.
ANALOGUEAESNETWORK AUDIO
L-R-FF-SUB L/R FF/SUB LEFT RIGHT F.FILL SUB
These are designated as sets A, B and C, and each set can switch automatically between
either the analogue, AES or Dante inputs, depending on the settings of the front panel source
selection.
PRIMARY
INPUT SOURCE
BACKUP
ANALOG
DANTE
The “output” of each of the sets is controlled by the set of three console switching selectors
on the front panel which will then route these onto the main four-channel output bus.
The output bus is available simultaneously as four analogue outputs, a pair of two channel
AES outputs, and four transmitter channels on the Dante network.
ANALOGUEAES DIGITALNETWORK A U D IO
1-2-3-4 1-2 3-4 -1- -2- -3- -4-
