Studer Innotec SA
Xtender
User manual V4.6.0 37

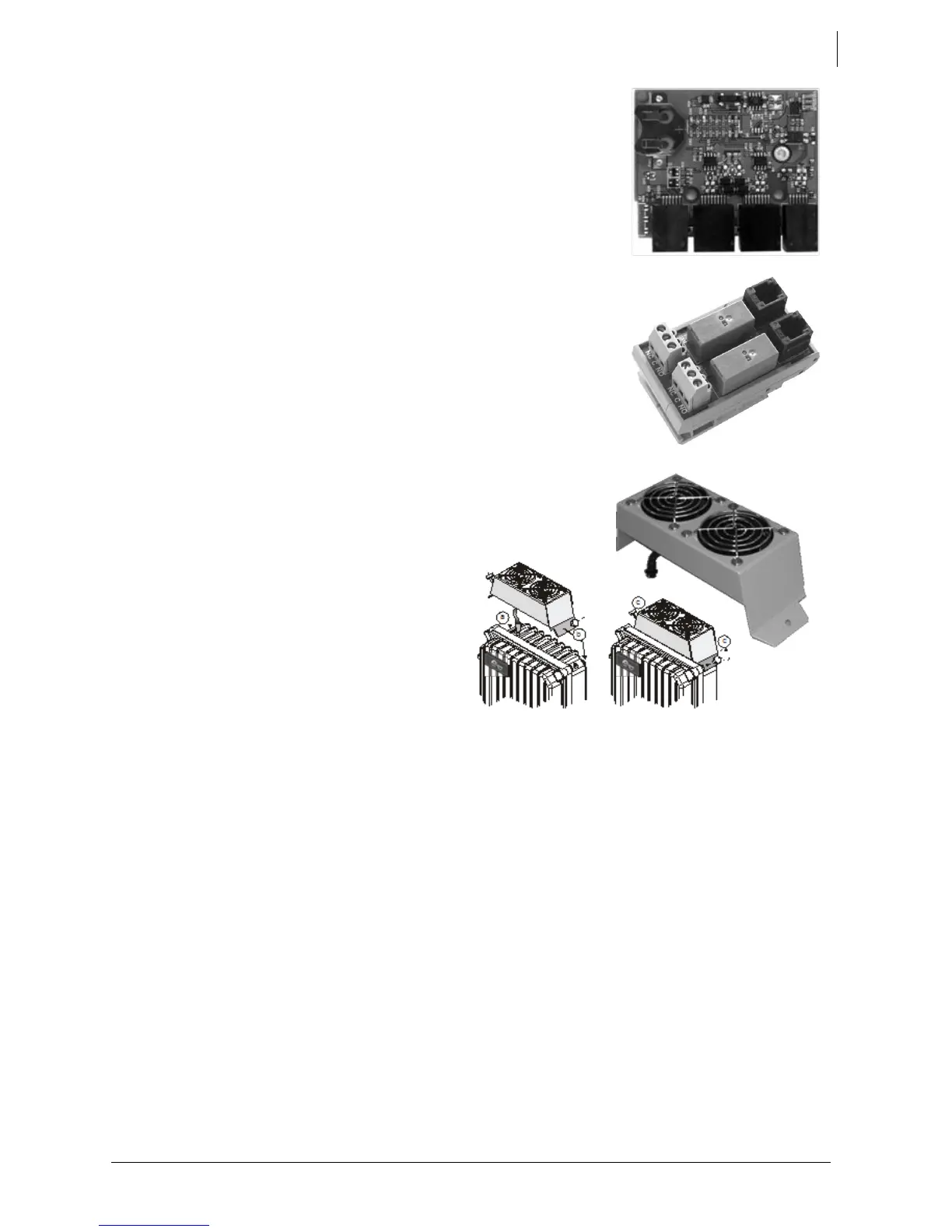

9.4 TIME AND COMMUNICATION MODULE TCM-01(XTS)
This module, mounted inside the XTS, allows the XTS to be connected
with the remote control RCC-02/03, as well as to Xtender compatible
devices and accessories. The module also features a real time clock
and connectors to connect the ARM-02, RCM-10 and BTS-01 modules.
Note: In recent XTS versions the functionalities of this module have been
integrated in the control electronics and it is therefore no longer
present. (see "Connection compartment, XTS" in chapter 3.6.3.).
9.5 AUXILIARY RELAY MODULE ARM-02 (XTS)
This external module is connected to the plug (2) (described in chapter
xx) by a 5m cable supplied with the accessory. It provides the XTS with
auxiliary relays as described in sect. 7.5 - p. 31. This module can be
mounted on DIN rail.
If the plug (2) is already used for the temperature senor BTS-01, it should
be moved to the free plug on ARM-02.
9.6 EXTERNAL COOLING FAN UNIT ECF-01 (XTS)
The external cooling fan unit ECF-01 is an optional accessory.
It improves the performance of the device (see technical data p. 57).
It is particularly recommended to use this accessory if the ambient
temperature is high (> 40 ° C).
This unit has an IP 54 protection rating and can
be exposed to a spray of water without
damage. However, it cannot be exposed to a
spray of dirty water to prevent mud or similar
particles from clogging the mechanism. The
assembly instructions are supplied with the
accessory.
