Xterra FS3.5 User Manual

8
FS3.5 Elliptical
#76. 5/16 x 1-3/4
Hex Head Bolt (6 pcs)
#87. Ø3.5 x 12mm
Sheet Metal Screw
(8 pcs)
#91. 5/16 x 7T
Nyloc Nut (6 pcs)
#113. 5/16” x 23 x 1.5T
Curved Washer
(4 pcs)
Conecting Arm Assembly
4

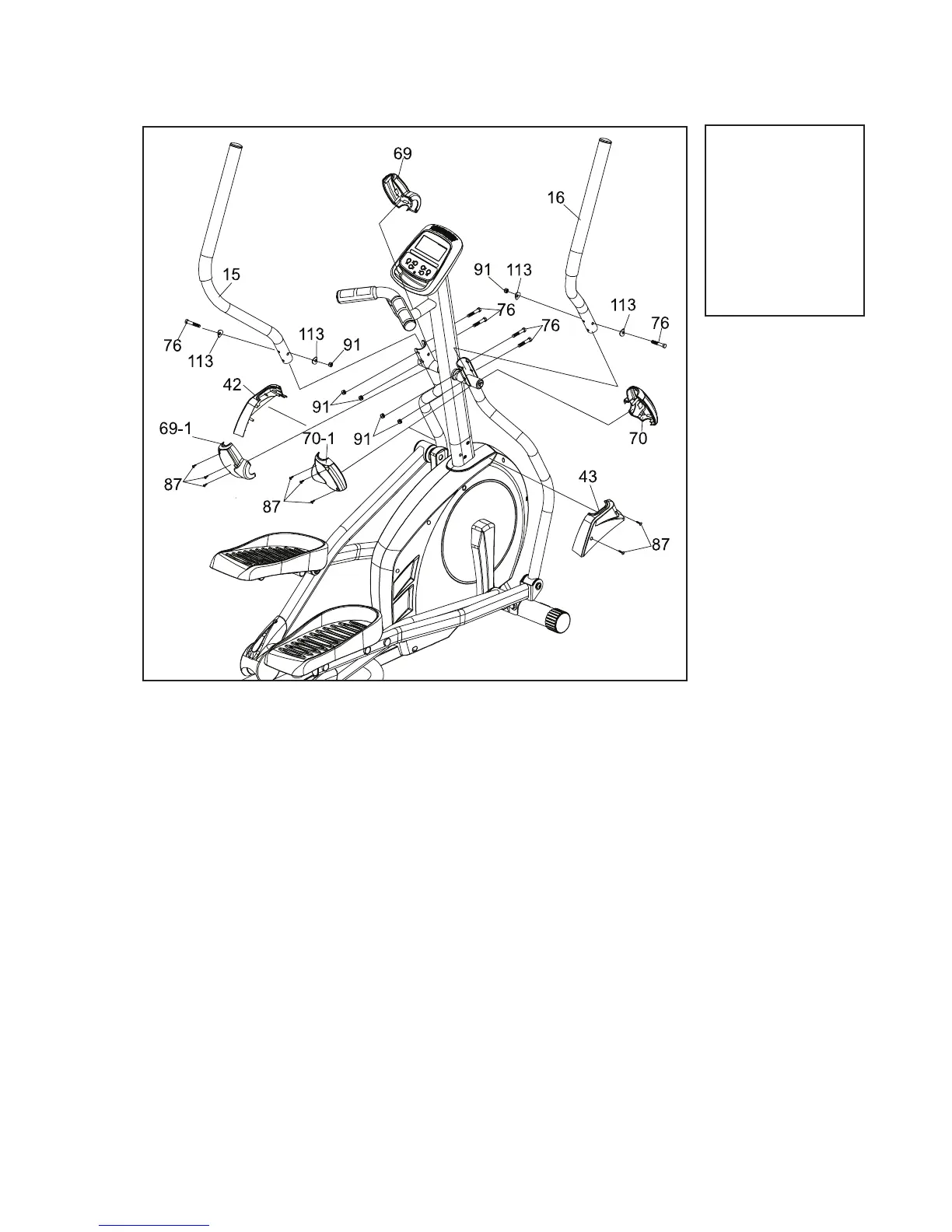

Hardware Step 4
1. Connect the Swing Arm (L) (15) to the left Lower Handle Bar and con-
nect the Swing Arm (R) (16) to the right Lower Handle Bar, and secure
them with six Hex Head Bolts (76), four Curved Washers (113) and six
Nyloc Nuts (91) by using 12m/m Wrench (116) 13.14m/m Wrench (115).
2. Put the Front Handle Bar Cover (L) (69) and the Rear Handle Bar Cover
(L) (69-1) together on the left Handle Bar and secure with three Sheet
Metal Screws (87) by using Combination M5 Allen Wrench & Phillips
Head Screw Driver (118). Repeat the same procedure for the right side.
3. Connect the Console Mast Cover (L)(42) and the Console Mast Cover
(R)(43) together on the Console Mast and secure with two Sheet Metal
Screws (87) by using Combination M5 Allen Wrench & Phillips Head
Screw Driver(118)

Xterra FS3.5 Specifications

General

Brand	Xterra
Model	FS3.5
Category	Elliptical Trainer
Language	English
