7
#74. 5/16” x 15mm
Hex Head Bolt
(2 pc)
#102. Ø8.7 x 20 x 1.5T
Flat Washer (2 pcs)

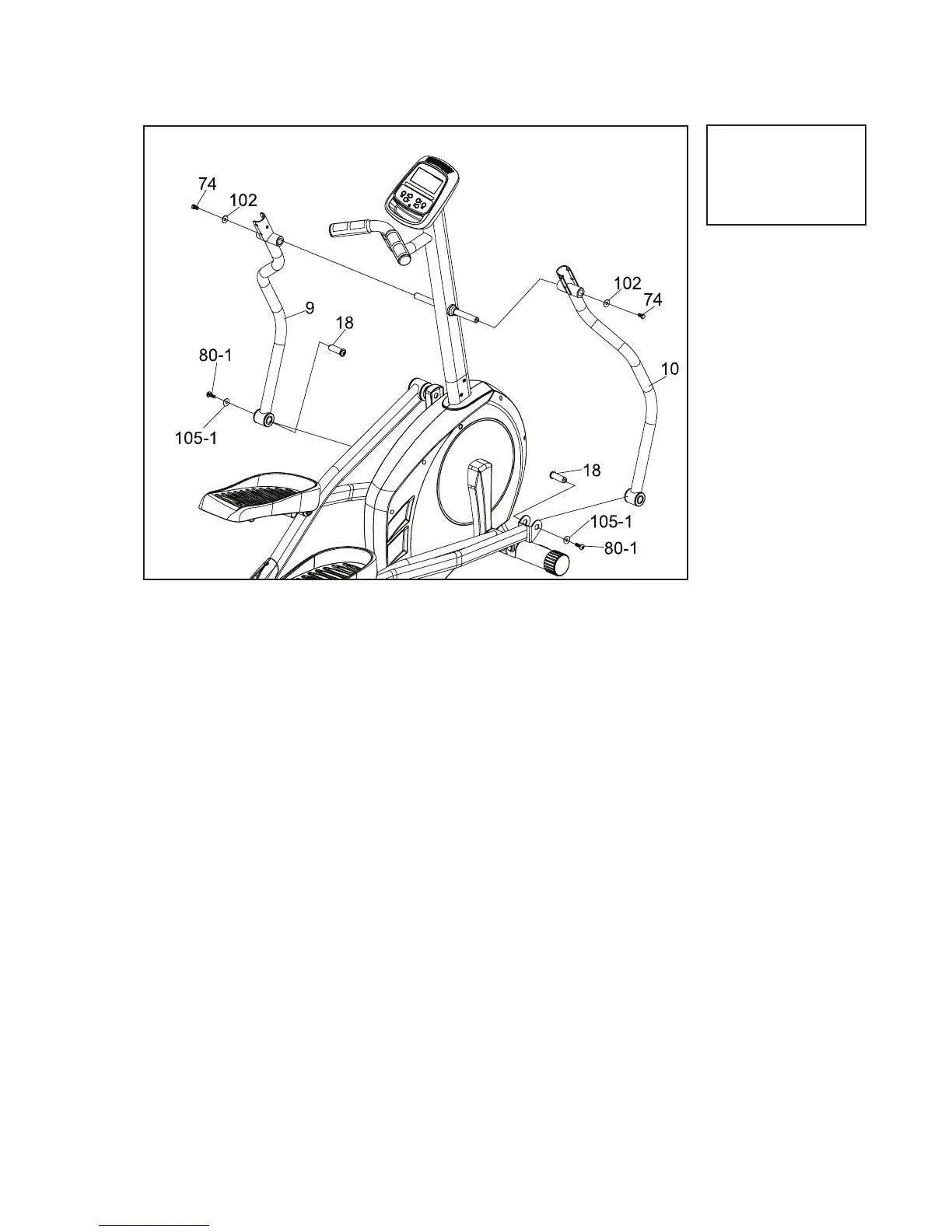

Handle Bar Assembly
3
Hardware Step 3
1. Install the Lower Handle Bar (L) (9) in the left shaft of Console Mast (11)
and the Lower Handle Bar (R) (10) in the right shaft of Console Mast
(11), and secure them with two Hex Head Bolts (74) and two Flat Wash-
ers (102) by using 12m/m Wrench (116).
2. Release rod end shafts (18) which are on left and right connecting arms.
Connect the connecting arm with lower handle bar and secure with rod
end shafts (18) and the screw by using Combination M5 Allen Wrench &
Phillips Head Screw Driver (118) and 12m/m_Wrench (116).
