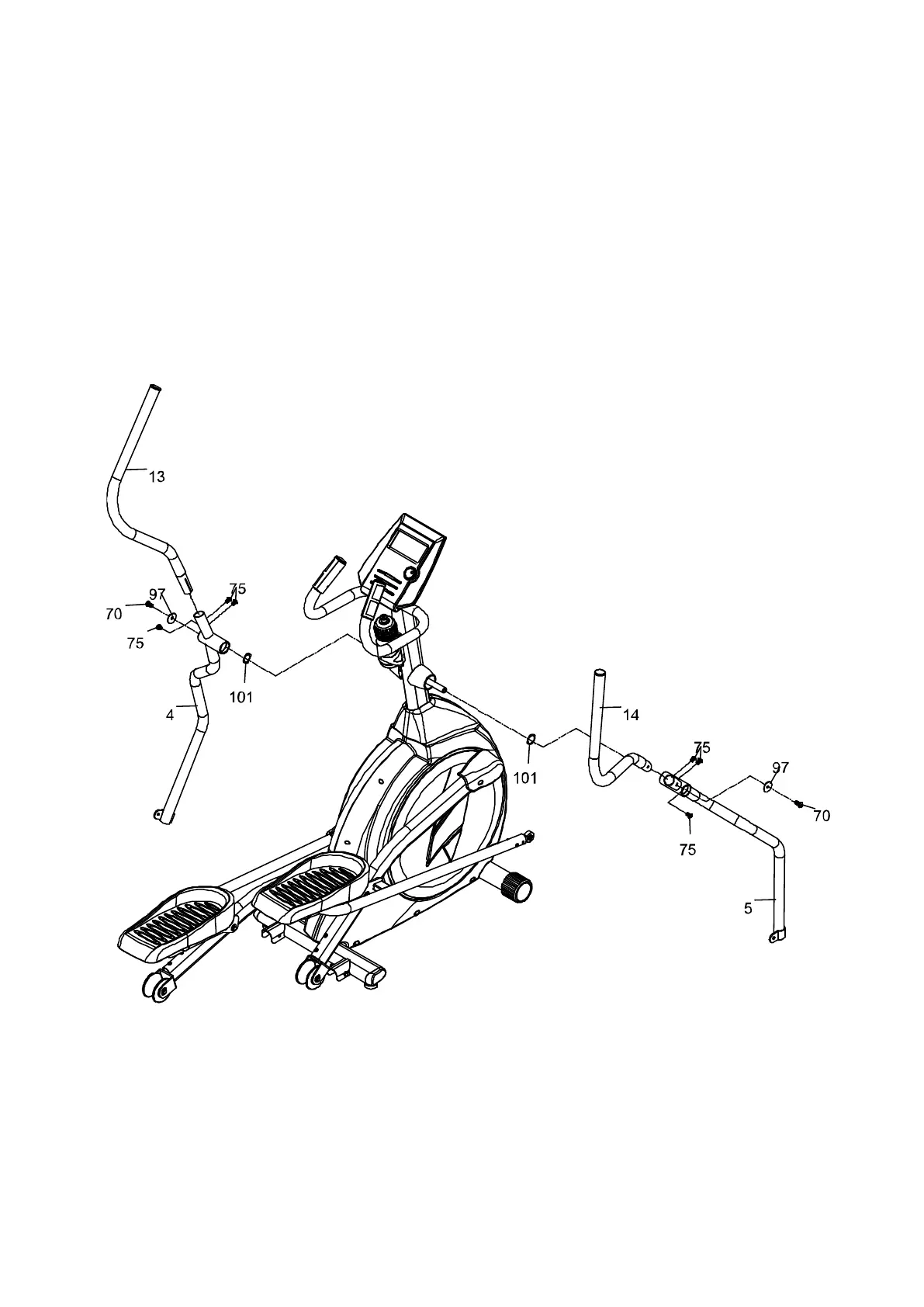

2 HANDLE BAR ASSEMBLY
1. Install the 2pcs of Ø 17 Wave Washers (101) onto the Left and Right side of the Handle
Bar axle.
2. Slide the Lower Left and Right Lower Handle Bars (4 & 5) onto the appropriate side of
the axle.
3. Put the 2pcs of 5/16” × 23 × 1.5T Flat Washers (97) onto the 2pcs of 5/16” × 15m/m Hex
Head Bolts (70) and install, and tighten, in the threaded holes in the ends of the axle.
4. Install the Left and Right Swing Arms (13 & 14) into the Lower Left and Right Lower
Handle Bars (4 & 5) with 6pcs of 5/16” × 15m/m Button Head Socket Bolts (75) by using
the Combination M5 Allen Wrench & Phillips Head Screw Driver (108).
To Next Page
