10
SB250 Recumbent Bike

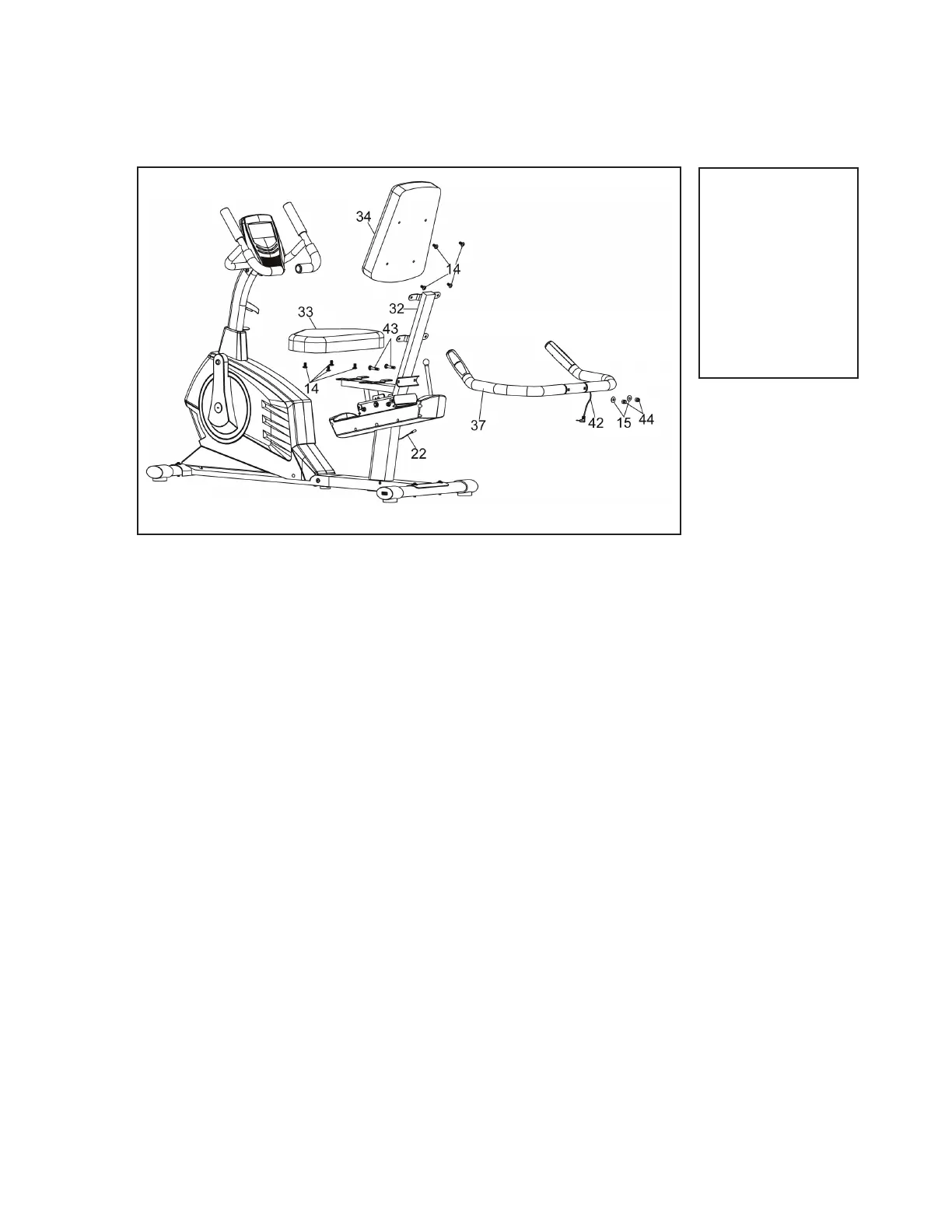

1. Connect the rear extension hand pulse wire (22) to the hand
pulse wire (42).
2. Attach the rear handlebar (37) to the seat support bracket
(32). Secure using two carriage bolts (43), two curved
washers (15) and two domed nuts (44).
3. Attach the seat cushion (33) to the seat support bracket (32).
Secure using four allen screws (14). Attach back cushion
(34) to the seat support bracket (32). Secure using four allen
screws (14).
Tip: Avoid pinching the pulse Wires
SB250 Assembly Instructions
Hardware Step 5
Rear Handlebar Assembly
8 Allen Screws (#14)
2 Carriage Bolts (#43)
2 Curved Washers
(#15)
2 Domed Nuts (#44)
5
To Next Page
