SB250 Recumbent Bike
7
Support Tube and Rear Stabilizer
2
Hardware Step 2
2 Allen Screw (#21)
6 Flat Washers (#16)
2 Curved Washers
(#15)
6 Allen Screw (#14)
1 Leveling Pad (#25)

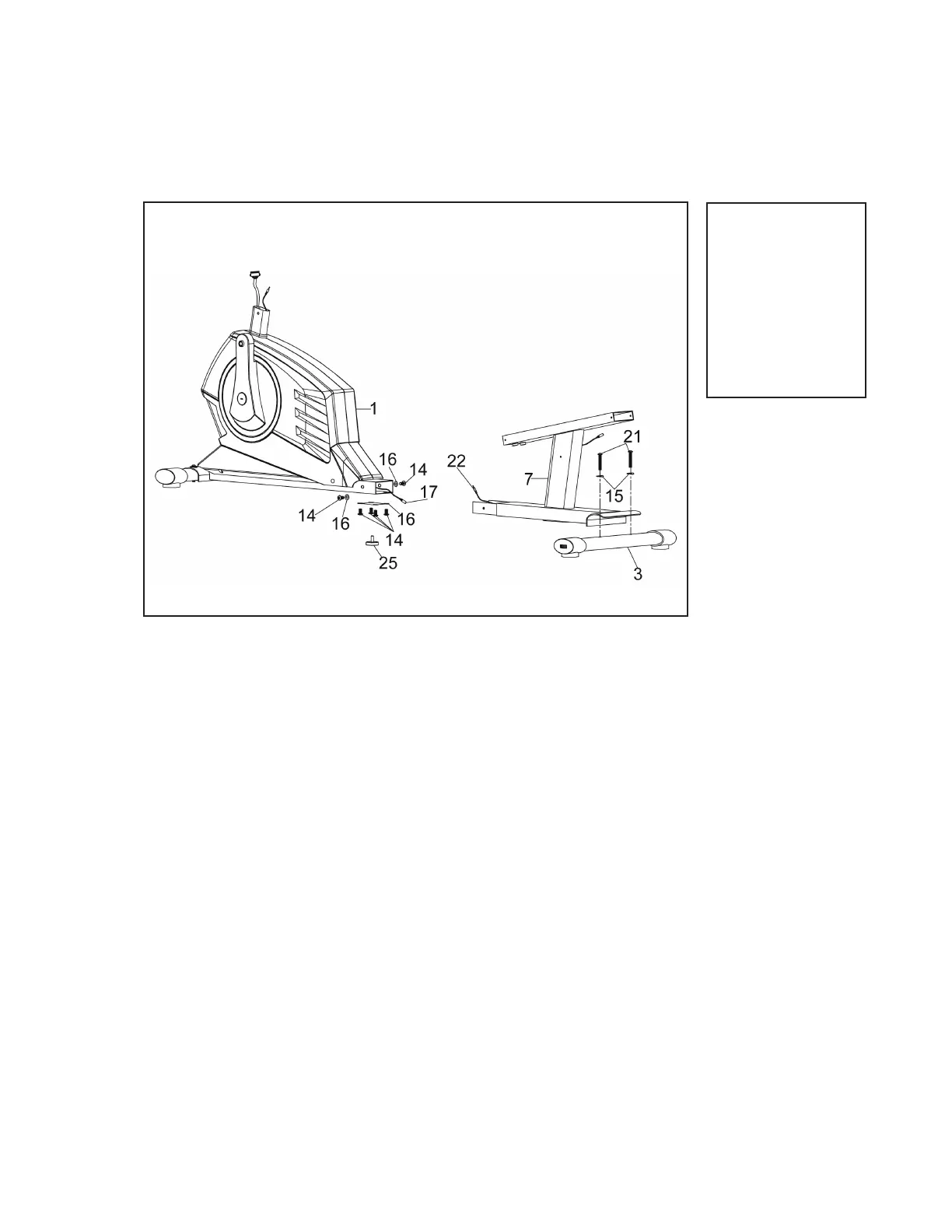

1. Attach the rear stabilizer (3) to the rear support tube (7).
Secure using two allen screws (21) and two curved washers
(15).
2. Connect the middle extension hand pulse wire (17) to the rear
extension hand pulse wire (22).
3. Attach the rear support tube (7) to the main frame (1). Secure
using six allen screws (14) and six at washers (16).
4. Attach the leveling pad (25) to the bottom of main frame (1).
Tip: Avoid pinching the Extension Wires
To Next Page
