Live Data
This function displays the real-time PID data from ECU. Displayed data includes analog
inputs and outputs, digital inputs and outputs, and system status information broadcast
on the vehicle data stream. Live data can be displayed in various modes.

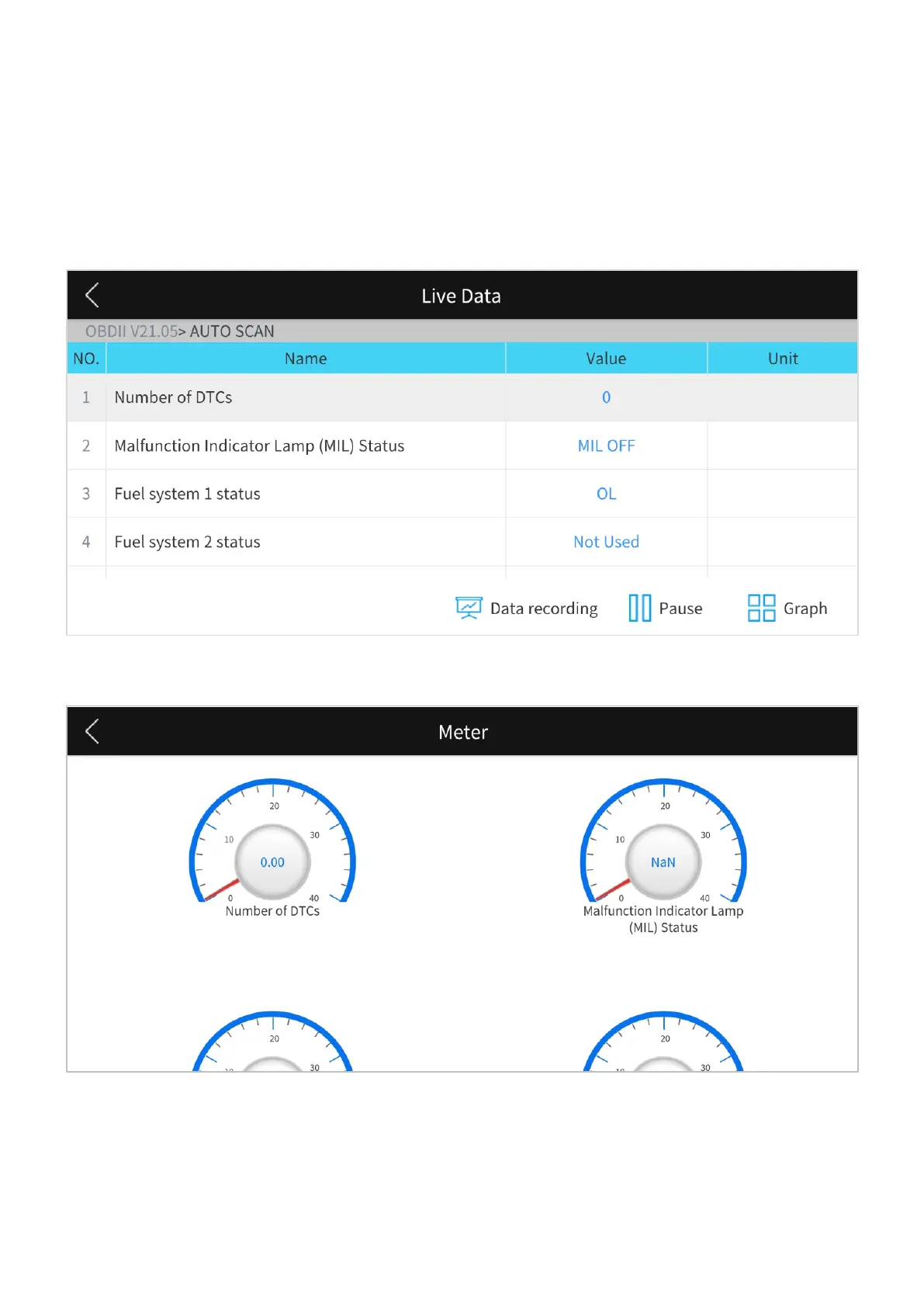

Figure 4-4 Sample of live data screen (table)
Figure 4-5 Sample of live data screen (graph)
