7.1.5 Typical Wiring To Fire Alarm Control Panel (FACP)

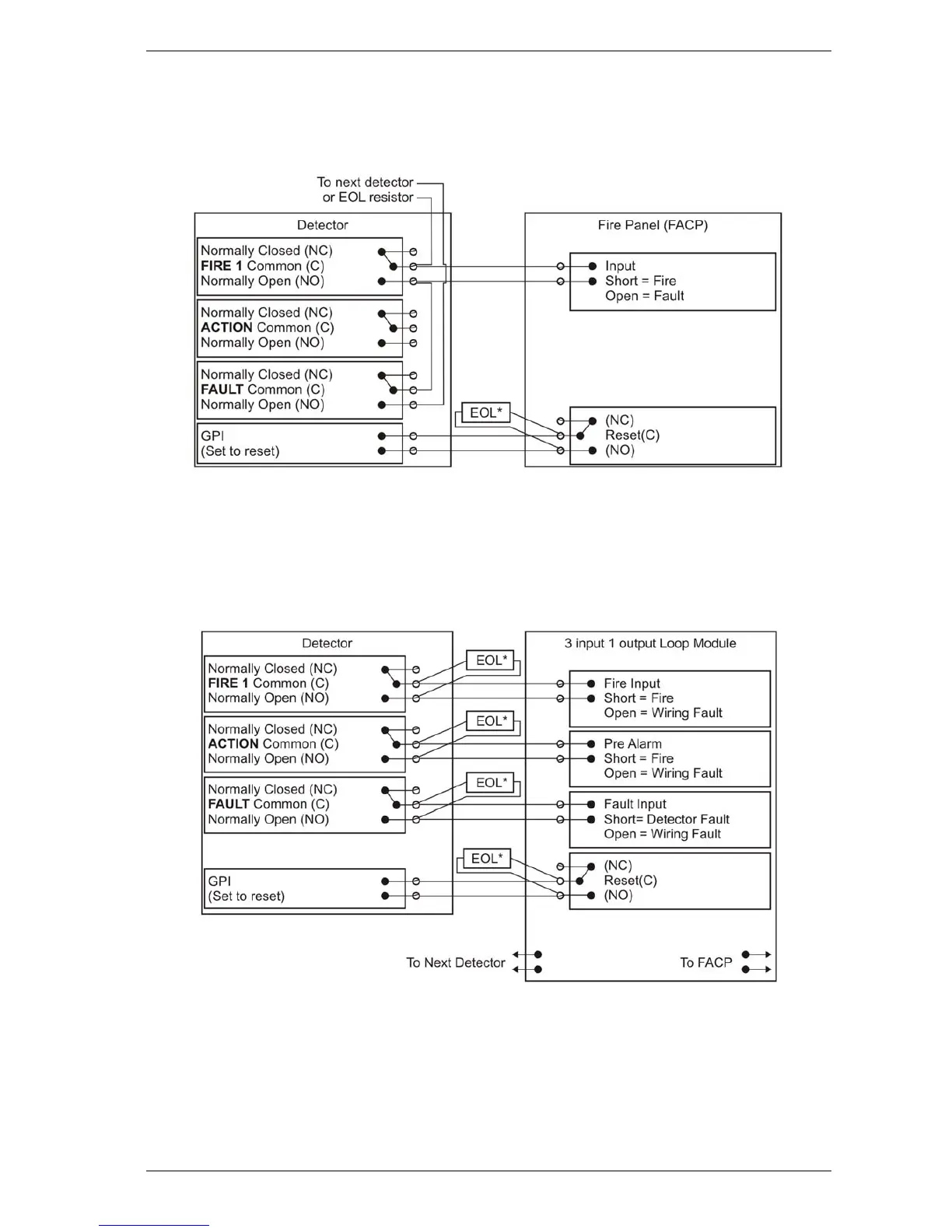

The diagram below shows the correct way to wire VESDA detectors to a conventional fire alarm
control panel (FACP). It also shows where an End Of Line (EOL) resistor is correctly installed.
Figure 7-6: Typical wiring to a fire panel with EOL
7.1.6 Wiring To an Address Loop Module
This wiring example is for wiring VESDA detectors to a typical Address Loop module 3 input 1
output. These are example drawings. Refer to the appropriate product manual for the exact wiring
details of the third party equipment.
Figure 7-7: Addressable Loop Module with EOL
