Features
Below are some of the features of the level regulators:
• The level regulator can be set at different operating levels by adjusting the length of
cable.
• A clamping bracket situated at the lifting handle holds the level regulator cable in
place.
• If continuous pumping is required, the level regulator can be placed in a special
rubber bracket on the discharge connection to eliminate the level regulator function.
Illustration
1
2
WS006210B
1. On
2. Off

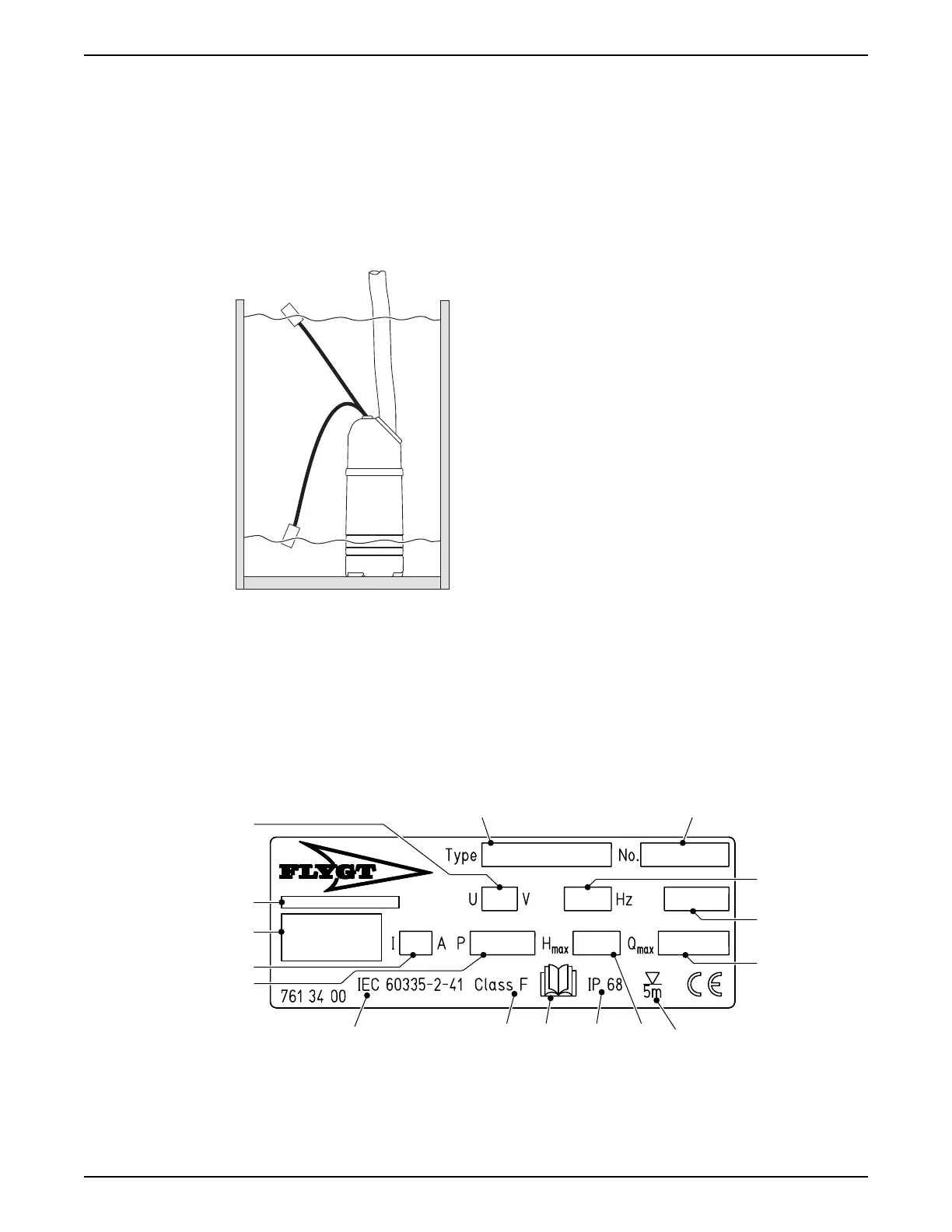

Figure 1: The functionality of the level regulator
3.4 The data plate
Introduction
The data plate is located on the main body of the pump. The data plate lists key product
specifications.
The data plate
1
2
3
4
5
7
610 9 811
13
12
14
WS006197B
16
15
1. Pump model
2. Serial number
3. Phase; type of current; frequency
4. Product weight
5. Maximum capacity
6. Maximum submergence
7. Maximum head
8. Degree of protection
3 Product Description
2008 Ready 8, 8S Installation, Operation, and Maintenance 9
