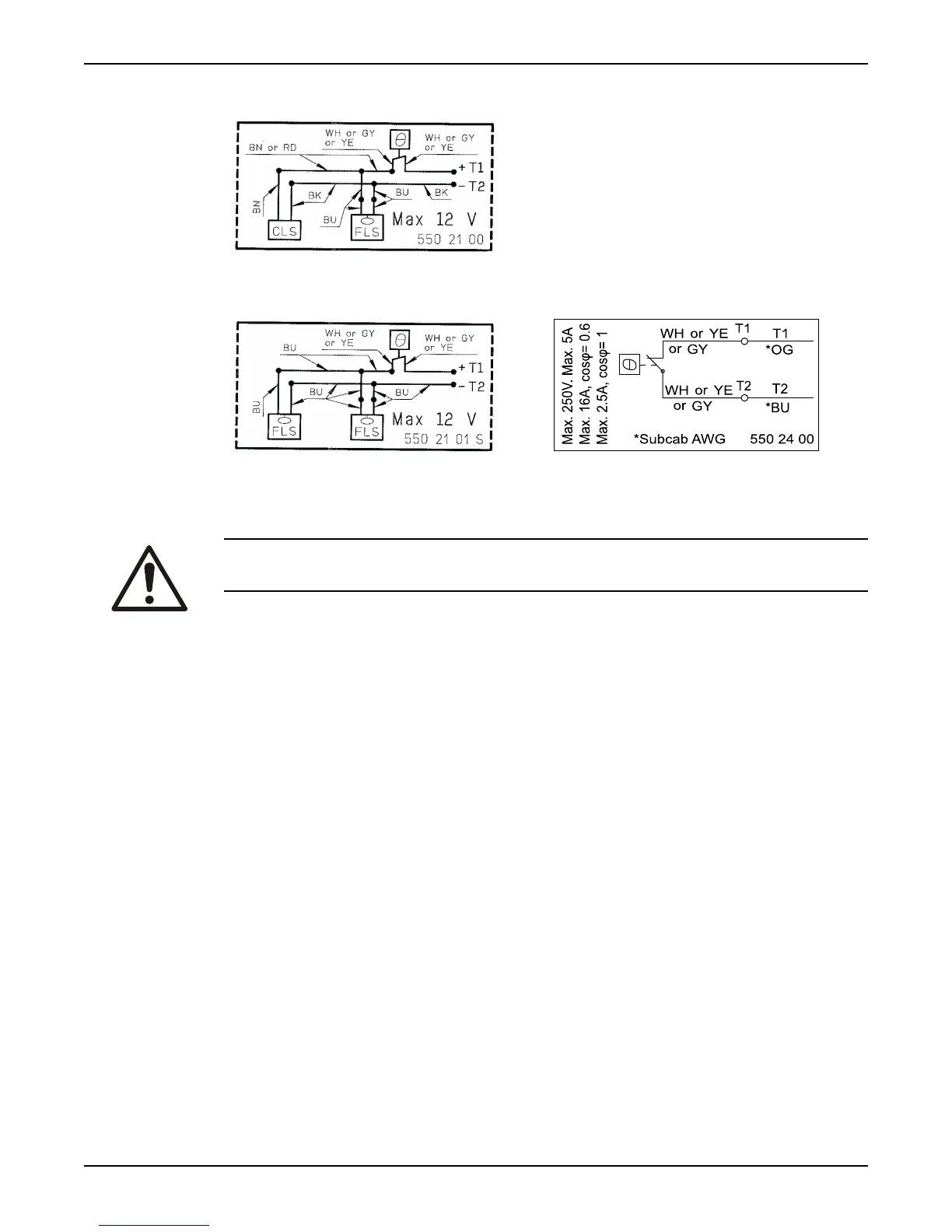

CLS, FLS, and Thermal contact (only standard version) Value
0 mA Overtemperature
13.3 mA OK
36-42mA Leakage (0/5 seconds delay)
The values have a 10 % tolerance
Two FLS, and Thermal contact (only standard version) Thermal contact
Check the impeller rotation
WARNING:
The starting jerk can be powerful.
1. Start the motor.
2. Stop the motor.
3. Check that the impeller rotates according to this illustration.
Installation
Flygt 3201 Installation, Operation, and Maintenance Manual 29
